Three Dimensional Modeling of Inclined Surface Cracks in FGM Coatings

Abstract:

This study presents a three dimensional finite element method for mixed-mode fracture analysis of an FGM coating-bond coat-substrate structure. The FGM coating is assumed to contain an inclined semi-elliptical crack at the free surface. The trilayer structure is examined under the effect of transient thermal stresses. Strain singularity around the crack front is simulated by utilizing collapsed wedge-shaped singular elements. The modes I, II and III stress intensity factors are computed by applying the displacement correlation technique and presented as a function of time. Four different FGM coating types are examined in the parametric analyses which are metal-rich, ceramic-rich, linear variation and homogeneous coatings. The results provided illustrate the influences of the FGM coating type and crack inclination angle on the transient behavior of the mixed-mode stress intensity factors.

You might also be interested in these eBooks

Multiscale, Multifunctional and Functionally Graded Materials

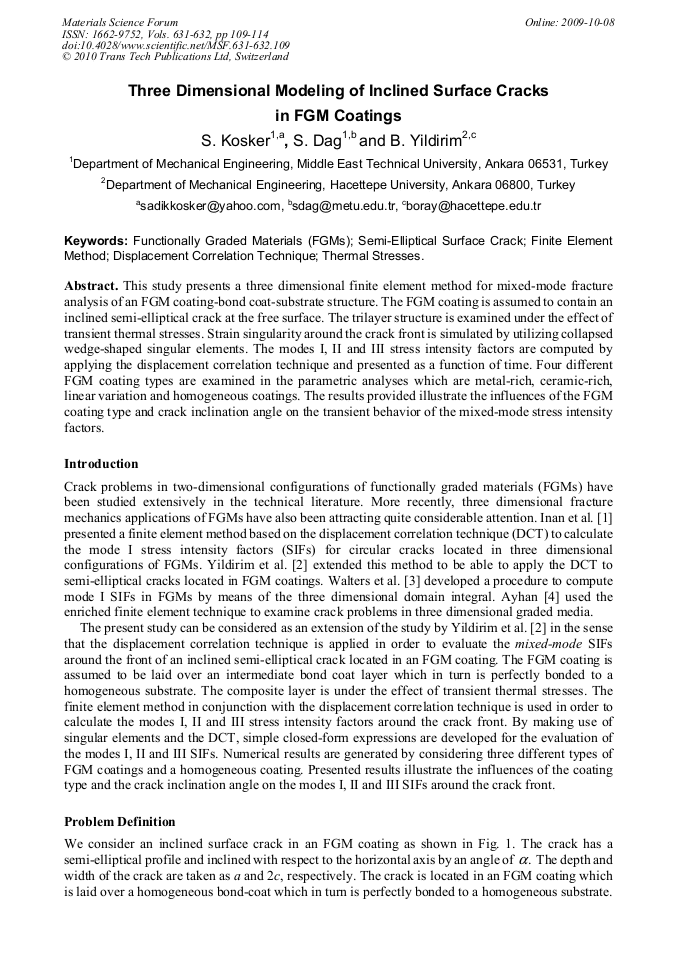

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 631-632)

Pages:

109-114

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.631-632.109

Citation:

Cite this paper

Online since:

October 2009

Authors:

Sadik Kosker, Serkan Dag, Boray Yildirim

Keywords:

Displacement Correlation Technique, Finite Element Model (FEM), Functionally Graded Material (FGM), Semi-Elliptical Surface Crack, Thermal Stress

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] O. Inan, S. Dag and F. Erdogan: Mater. Sci. Forum Vol. 492-493 (2005), p.373.

Google Scholar

[2] B. Yildirim, S. Dag and F. Erdogan: Int. J. Fracture Vol. 132 (2005), p.371.

Google Scholar

[3] M.C. Walters, G.H. Paulino and R.H. Dodds Jr.: Int. J. Solids Struct. Vol. 41 (2004), p.1081.

Google Scholar

[4] A.O. Ayhan: Int. J. Solids Struct. Vol. 44 (2007), p.1081.

Google Scholar

[5] A�SYS Basic Analysis Procedures Guide (Release 5. 4, ANSYS Inc., Canonsburg, PA, USA 1997).

Google Scholar

[6] S. Kosker: Three Dimensional Mixed-Mode Fracture Analysis of Functionally Graded Materials (M.S. Thesis, Department of Mechanical Engineering, Middle East Technical University, Ankara, Turkey 2007).

Google Scholar
