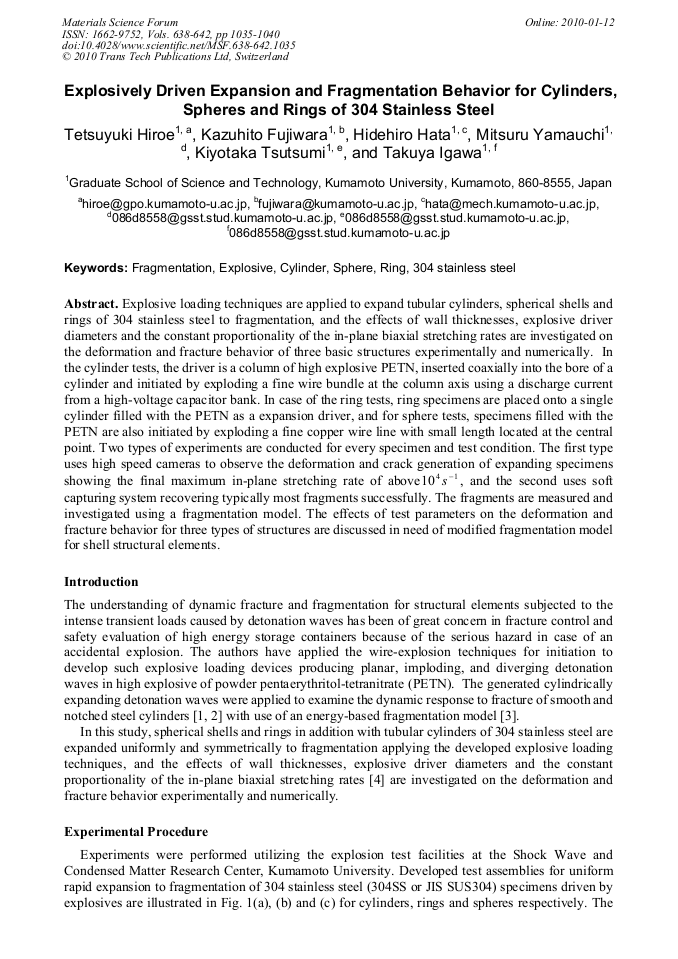

Explosively Driven Expansion and Fragmentation Behavior for Cylinders, Spheres and Rings of 304 Stainless Steel

Abstract:

Explosive loading techniques are applied to expand tubular cylinders, spherical shells and rings of 304 stainless steel to fragmentation, and the effects of wall thicknesses, explosive driver diameters and the constant proportionality of the in-plane biaxial stretching rates are investigated on the deformation and fracture behavior of three basic structures experimentally and numerically. In the cylinder tests, the driver is a column of high explosive PETN, inserted coaxially into the bore of a cylinder and initiated by exploding a fine wire bundle at the column axis using a discharge current from a high-voltage capacitor bank. In case of the ring tests, ring specimens are placed onto a single cylinder filled with the PETN as a expansion driver, and for sphere tests, specimens filled with the PETN are also initiated by exploding a fine copper wire line with small length located at the central point. Two types of experiments are conducted for every specimen and test condition. The first type uses high speed cameras to observe the deformation and crack generation of expanding specimens showing the final maximum in-plane stretching rate of above , and the second uses soft capturing system recovering typically most fragments successfully. The fragments are measured and investigated using a fragmentation model. The effects of test parameters on the deformation and fracture behavior for three types of structures are discussed in need of modified fragmentation model for shell structural elements.

• Periodical: Materials Science Forum (Volumes 638-642)
• Pages: 1035-1040
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.638-642.1035
• Online since: January 2010
• Authors: Tetsuyuki Hiroe, Kazuhito Fujiwara, Hidehiro Hata, Mitsuru Yamauchi, Kiyotaka Tsutsumi, Takuya Igawa
• Keywords: 304 Stainless Steel, Cylinder, Explosive, Fragmentation, Ring, Sphere
