Properties of Al-Si-Fe-Cu-Mg Alloy PM Composites Obtained by Closed - Die Forging and Heat Treatment

Abstract:

Aluminium RAl-1 and its alloy Al17Si5Fe3Cu1.1Mg0.6Zr composite materials were manufactured from powder mixtures by cold pressing, hot closed-die forging at 480oC and heat treatment. Powders ranging in composition in 20 wt.% steps of the alloy were mixed in a Turbula mixer for 1 h. The preforms with alloy concentrations of 80 and 100 % were hot consolidated at 480oC and closed-die forged at the same temperature. The effect of chemical composition on microstructure and mechanical properties in bending and compression was examined. Bend strength ranged from 400 to 540 MPa, compression strength from 415 to 744 MPa and hardness from 32 to 203 HB. Simulated distribution of component materials for a cross-section of the forging and shapes of the materials were analysed using LARSTRAN/Shape finite element program and are qualitatively comparable with the results obtained by forging.

You might also be interested in these eBooks

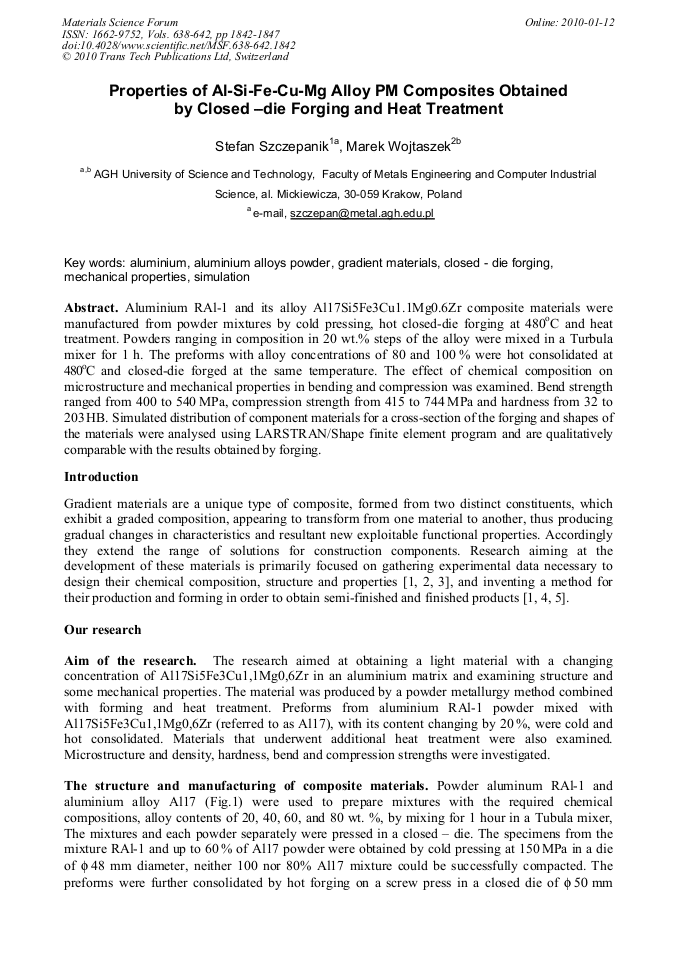

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 638-642)

Pages:

1842-1847

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.638-642.1842

Citation:

Cite this paper

Online since:

January 2010

Authors:

Stefan Szczepanik, Marek Wojtaszek

Keywords:

Aluminum (Al), Aluminum Alloy Powder, Closed-Die Forging, Gradient Materials, Mechanical Property, Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. Neubrand, J. Rödel: Gradient Materials: Zeitschrift für Metallkunde Vol. 88 (1997), p.358.

Google Scholar

[2] B. Kieback, F. Meyer-Olbersleben: Maschinenmarkt Vol. 105 (1999), p.38.

Google Scholar

[3] S. Raβach, W. Lehnert: Advanced Engineering Materials 2(2000), p.442.

Google Scholar

[4] S. Szczepanik, S. Raβbach in: ESAFORM the 5th international conference on Material forming. Kraków, April 14-17, 2002, eds. Maciej Pietrzyk, Zbigniew Mitura, Jacek Kaczmar, Publishing House , Akapit', Poland (2002), p.335.

Google Scholar

[5] S. Szczepanik: Inżynieria materiałowa 3-4, maj-sierpień (2007), p.602.

Google Scholar

[6] A. Hensel, T. Spittel: Kraft und Arbeitsbedarf bildsamer Formgebungsverfahren, VEB Deutsche Verlag für Grundstoffindustrie, Leipzig, (1978).

Google Scholar

[7] S. Szczepanik: Przeróbka plastyczna materiałów spiekanych z proszków i kompozytów, AGH Uczelniane Wydawnicto Naukowo-Dydaktyczne, Kraków, (2003).

Google Scholar

[8] acut Aachener Umformtechnik GmbH, Aachen, Germany.

Google Scholar
