Phase Transformation Behavior of Boron Containing 9% Cr Heat Resistant Steels

Abstract:

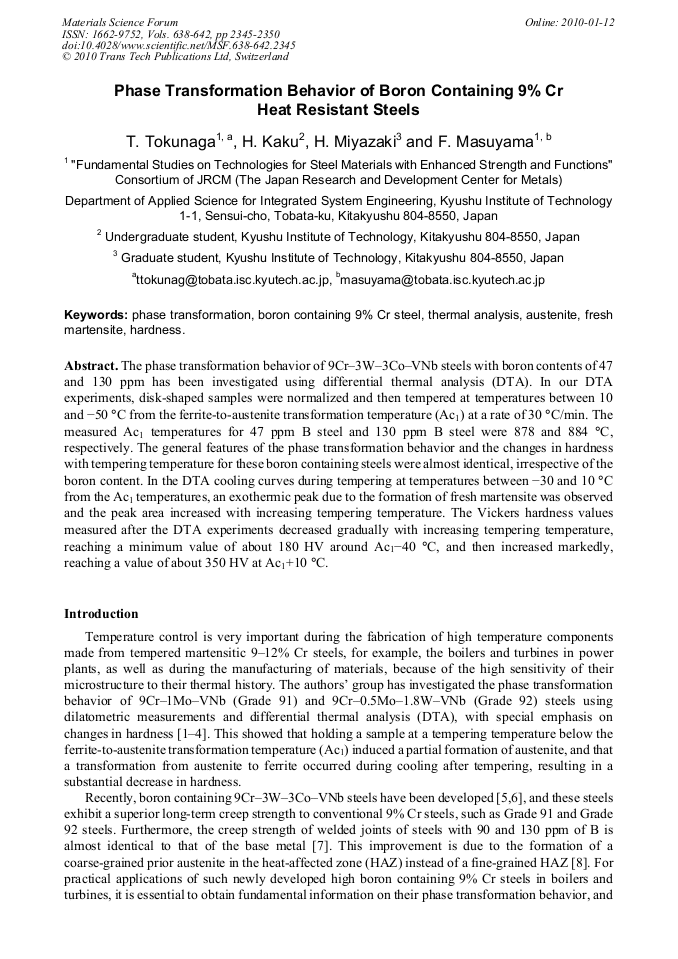

The phase transformation behavior of 9Cr–3W–3Co–VNb steels with boron contents of 47 and 130 ppm has been investigated using differential thermal analysis (DTA). In our DTA experiments, disk-shaped samples were normalized and then tempered at temperatures between 10 and −50 °C from the ferrite-to-austenite transformation temperature (Ac1) at a rate of 30 °C/min. The measured Ac1 temperatures for 47 ppm B steel and 130 ppm B steel were 878 and 884 °C, respectively. The general features of the phase transformation behavior and the changes in hardness with tempering temperature for these boron containing steels were almost identical, irrespective of the boron content. In the DTA cooling curves during tempering at temperatures between −30 and 10 °C from the Ac1 temperatures, an exothermic peak due to the formation of fresh martensite was observed and the peak area increased with increasing tempering temperature. The Vickers hardness values measured after the DTA experiments decreased gradually with increasing tempering temperature, reaching a minimum value of about 180 HV around Ac1−40 °C, and then increased markedly, reaching a value of about 350 HV at Ac1+10 °C.

• Periodical: Materials Science Forum (Volumes 638-642)
• Pages: 2345-2350
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.638-642.2345
• Online since: January 2010
• Authors: T. Tokunaga, H. Kaku, H. Miyazaki, F. Masuyama
• Keywords: Austenite, Boron Containing 9% Cr Steel, Fresh Martensite, Hardness, Phase Transformation, Thermal Analysis

References

[1] F. Masuyama and N. Nishimura: Proceedings of the ASME Pressure Vessel and Piping Division, Vol. 476, American Society of Mechanical Engineers, New York, USA, (2004), p.85.

[2] K. Nakashima and F. Masuyama: Proceedings of the 3rd International Conference on Advanced Structural Steels (ICASS 2006), The Korean Institute of Metals and Materials, Seoul, Korea, (2006), p.582.

[3] T. Tokunaga, K. Hasegawa and F. Masuyama: Mater. Sci. Eng. A, in press.

[4] T. Tokunaga and F. Masuyama: CAMP-ISIJ Vol. 22 (2009), in press.

[5] T. Horiuchi, M. Igarashi and F. Abe: ISIJ Int. Vol. 42 (2002), p. S67.

[6] H. Semba and F. Abe: Energy Mater. Vol. 1 (2006), p.238.

[7] S. K. Albert, M. Kondo, M. Tabuchi, F. Yin, K. Sawada and F. Abe: Metall. Mater. Trans. A Vol. 36A (2005), p.333.

[8] M. Tabuchi, M. Kondo, H. Hongo, T. Watanabe, F. Yin and F. Abe: J. Soc. Mat. Sci. Japan Vol. 54 (2005), p.162.

[9] M. Hasebe and H. Ohtani, in: Front of Research on Behavior of Boron in Steels, The Iron and Steel Institute of Japan (ISIJ), Tokyo, Japan, (2003), p.4 (in Japanese).

[10] B. Sundman (Ed. ), Scientific Group Thermodata Europe (SGTE) Solution Database Ver. 2, Royal Institute of Technology, Stockholm, Sweden, (1994).
