Effects of Manganese Content and Heat Treatment Condition on Mechanical Properties and Microstructures of Fine-Grained Low Carbon TRIP-Aided Steels

Article Preview

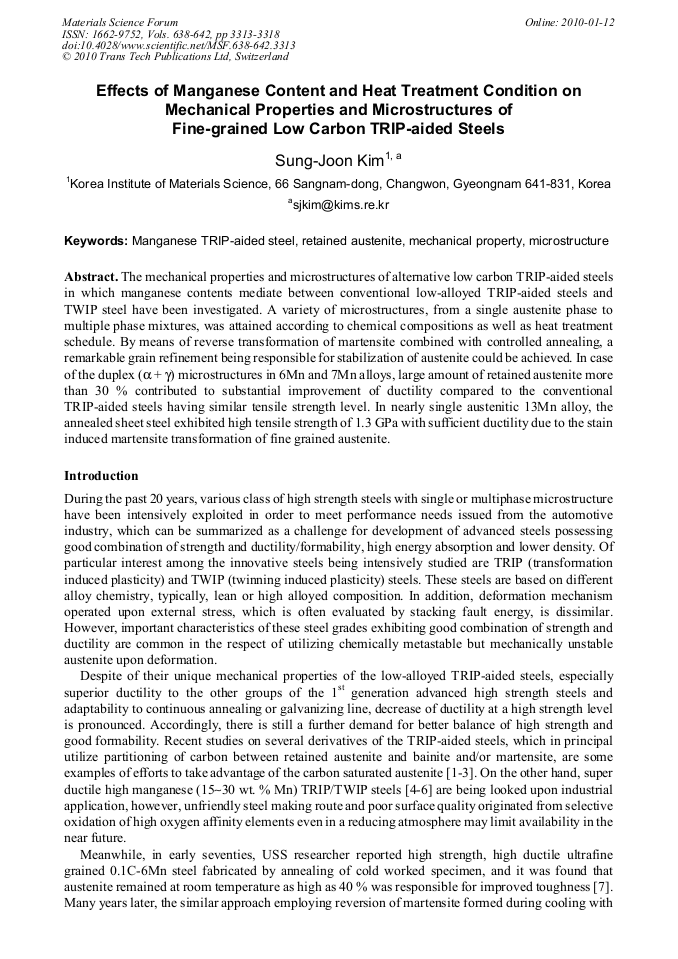

Abstract:

The mechanical properties and microstructures of alternative low carbon TRIP-aided steels in which manganese contents mediate between conventional low-alloyed TRIP-aided steels and TWIP steel have been investigated. A variety of microstructures, from a single austenite phase to multiple phase mixtures, was attained according to chemical compositions as well as heat treatment schedule. By means of reverse transformation of martensite combined with controlled annealing, a remarkable grain refinement being responsible for stabilization of austenite could be achieved. In case of the duplex (+ ) microstructures in 6Mn and 7Mn alloys, large amount of retained austenite more than 30 % contributed to substantial improvement of ductility compared to the conventional TRIP-aided steels having similar tensile strength level. In nearly single austenitic 13Mn alloy, the annealed sheet steel exhibited high tensile strength of 1.3 GPa with sufficient ductility due to the stain induced martensite transformation of fine grained austenite.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volumes 638-642)

Pages:

3313-3318

Citation:

Online since:

January 2010

Authors:

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] J. Speer, D.K. Matlock and M.F. Gallagher, U.S. Patent 0, 011, 274. (2006).

Google Scholar

[2] K. Sugimoto, M. Murata and Y. Mukai, in: International Conference on �ew Developments in Advanced High-Strength Sheet Steels, edited by J. Speer, B. Nelson and R. Pradhan, Association for Iron and Steel Technology, Warrendale, PA (2008), p.57.

Google Scholar

[3] H.J. Jun and N. Fonstein, in: ibid, p.155.

Google Scholar

[4] G. Frommeyer, U. Brüx and P. Neumann: ISIJ Int'l Vol. 43 (2003), p.438.

Google Scholar

[5] G. Frommeyer and U. Brüx: Steel Res. Int'l Vol. 77 (2006), p.627.

Google Scholar

[6] S.K. Kim, G. Kim and K.G. Chin, in : International Conference on �ew Developments in Advanced High-Strength Sheet Steels, edited by J. Speer, B. Nelson and R. Pradhan, Association for Iron and Steel Technology, Warrendale, PA (2008), p.249.

Google Scholar

[7] R.L. Miller: Metall. Trans. Vol. 3 (1972), p.905.

Google Scholar

[8] T. Furukawa: Mater. Sci. Technol. Vol. 5 (1989), p.465.

Google Scholar

[9] D.E. Kim, Y.K. Park, O.Y. Lee, K.G. Chin and S.J. Kim: Korean J. Mater. Res. Vol. 15 (2005), p.115.

Google Scholar

[10] M.J. Merwin: Iron Steel Technol. Vol. 5 (2008) p.66.

Google Scholar

[11] H.N. Han, C.S. Oh, G. Kim and O.J. Kwon: Mater. Sci. Eng. A Vol. 499 (2009) p.462.

Google Scholar

[12] D.W. Suh, S.J. Park, C.H. Lee and S.J. Kim: Metall. Mater. Trans. Vol. 40A (2009) p.264.

Google Scholar

[13] P. Hedström, U. Lienert, J. Almer and M. Odén: Scripta Mater. Vol. 56 (2007) p.3889.

Google Scholar
