Change in Hardness Statistics during Isothermal Annealing of Cold-Rolled Aluminum

Tsuyoshi Yukimoto; Hiroshi Utsunomiya; Tetsuo Sakai

doi:10.4028/www.scientific.net/MSF.638-642.469

Paper Titles

The Mechanical Properties of AA2024 as Function of the Interrupted Ageing Conditions
p.449

Evaluation of the Heat Treatment Role for Light Aluminum Alloys Subjected to Creep and Low Cycle Fatigue
p.455

Precipitation of β' Phase in a Low Cost Beta Titanium Alloy
p.461

Effect of Cr and Zr Dopes on Hydrogen Behaviour in Rapidly Solidified Aluminium Foils
p.465

Change in Hardness Statistics during Isothermal Annealing of Cold-Rolled Aluminum
p.469

Phases and Structure Characteristics of the Near Eutectic Al-Sl-Cu Alloy Using Derivative Thermo Analysis
p.475

Precipitate Behavior and Microstructure Characterization of An Al-Zn-Mg-Cu Alloy Prepared by Spray Forming Process
p.481

Anisotropy of Bending Properties in Industrial Heat-Treatable Extruded Aluminium Alloys
p.487

Mechanical Performance of Newly Developed Titanium and Zirconium System Alloys for Biomedical Applications
p.495

HomeMaterials Science ForumMaterials Science Forum Vols. 638-642Change in Hardness Statistics during Isothermal...

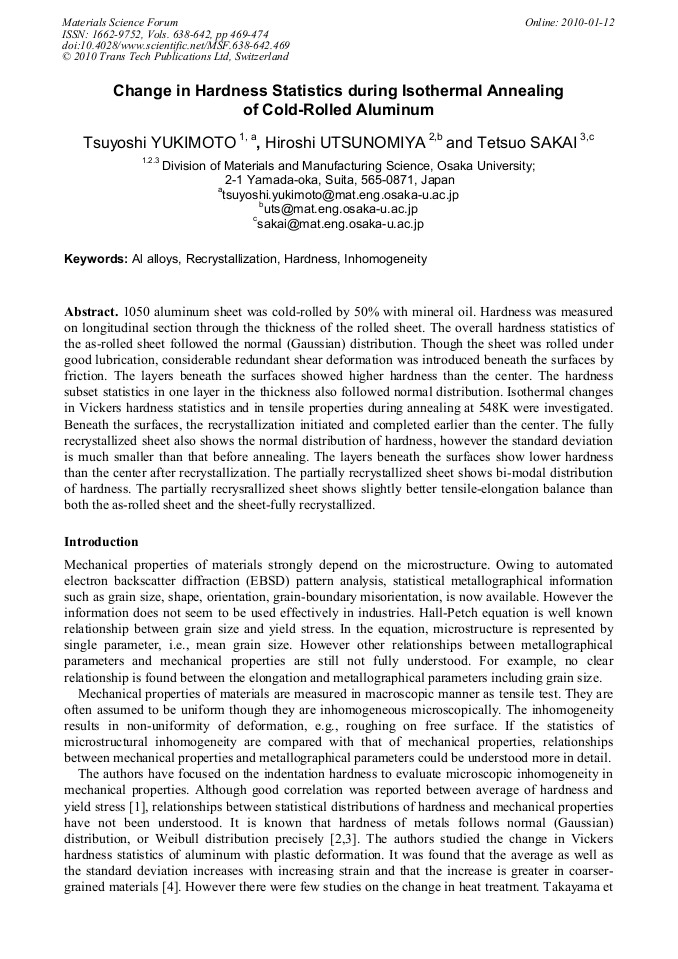

Change in Hardness Statistics during Isothermal Annealing of Cold-Rolled Aluminum

Abstract:

1050 aluminum sheet was cold-rolled by 50% with mineral oil. Hardness was measured on longitudinal section through the thickness of the rolled sheet. The overall hardness statistics of the as-rolled sheet followed the normal (Gaussian) distribution. Though the sheet was rolled under good lubrication, considerable redundant shear deformation was introduced beneath the surfaces by friction. The layers beneath the surfaces showed higher hardness than the center. The hardness subset statistics in one layer in the thickness also followed normal distribution. Isothermal changes in Vickers hardness statistics and in tensile properties during annealing at 548K were investigated. Beneath the surfaces, the recrystallization initiated and completed earlier than the center. The fully recrystallized sheet also shows the normal distribution of hardness, however the standard deviation is much smaller than that before annealing. The layers beneath the surfaces show lower hardness than the center after recrystallization. The partially recrystallized sheet shows bi-modal distribution of hardness. The partially recrysrallized sheet shows slightly better tensile-elongation balance than both the as-rolled sheet and the sheet-fully recrystallized.
