In Situ Investigation of Liquid-Liquid Phase Separation in Hypermonotectic Alloys

Abstract:

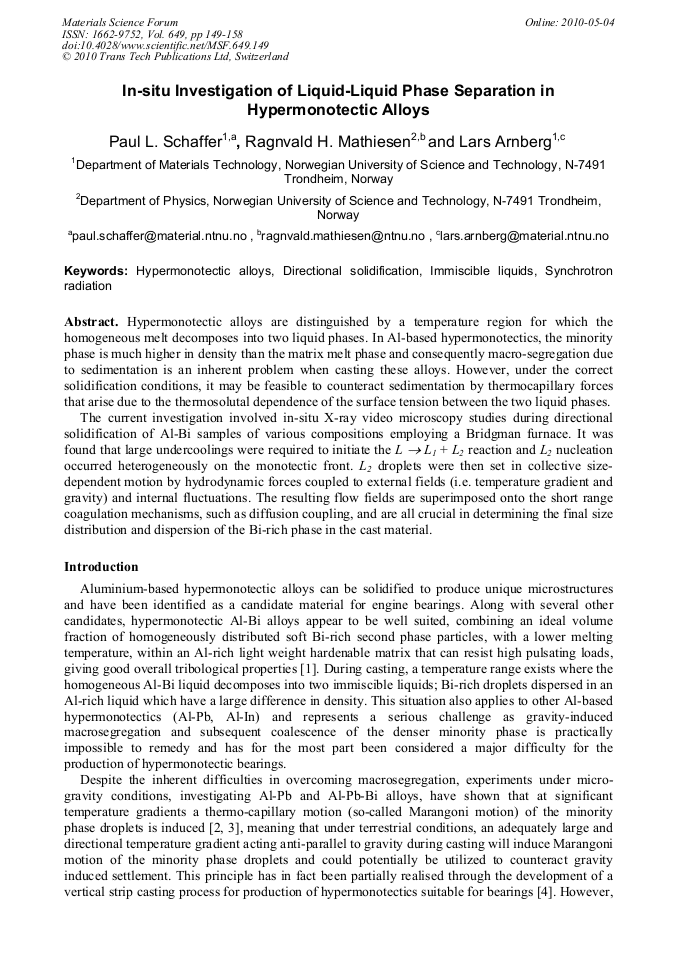

Hypermonotectic alloys are distinguished by a temperature region for which the homogeneous melt decomposes into two liquid phases. In Al-based hypermonotectics, the minority phase is much higher in density than the matrix melt phase and consequently macro-segregation due to sedimentation is an inherent problem when casting these alloys. However, under the correct solidification conditions, it may be feasible to counteract sedimentation by thermocapillary forces that arise due to the thermosolutal dependence of the surface tension between the two liquid phases. The current investigation involved in-situ X-ray video microscopy studies during directional solidification of Al-Bi samples of various compositions employing a Bridgman furnace. It was found that large undercoolings were required to initiate the L  L1 + L2 reaction and L2 nucleation occurred heterogeneously on the monotectic front. L2 droplets were then set in collective size-dependent motion by hydrodynamic forces coupled to external fields (i.e. temperature gradient and gravity) and internal fluctuations. The resulting flow fields are superimposed onto the short range coagulation mechanisms, such as diffusion coupling, and are all crucial in determining the final size distribution and dispersion of the Bi-rich phase in the cast material.

• Periodical: Materials Science Forum (Volume 649)
• Pages: 149-158
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.649.149
• Online since: May 2010
• Authors: Paul L. Schaffer, Ragnvald H. Mathiesen, Lars Arnberg
• Keywords: Directional Solidification, Hypermonotectic Alloy, Immiscible Liquid, Synchrotron Radiation (XRD)

References

[1] L. Ratke and S. Diefenbach: Material Science and Engineering R Vol. 15 (1995), pp.263-347.

[2] H. Fujii, T. Kimura, H. Kitaguchi, H. Kumakura, and K. Togano: Journal of Materials Science Vol. 30 (1995), pp.3429-3434.

[3] L. Ratke and G. Korekt: Zeitschrift fur Metallkunde Vol. 91 (2000), pp.919-927.

[4] J. Moiseev, H. Zak, H. Palkowski, and B. Tonn: Aluminium Vol. 81 (2005), pp.92-97.

[5] W.T. Kim, D.L. Zhang, and B. Cantor: Material Science and Engineering A Vol. A134 (1991), pp.1133-1138.

[6] R. Majumdar and K. Chattopadhyay: Metallurgical and Materials Transactions A Vol. 31A (2000), pp.1833-1842.

[7] L. Ratke and A. Muller: Scripta Materialia Vol. 54 (2006), pp.1217-1220.

[8] P.A. Curreri and W.F. Kaukler: Metallurgical and Materials Transactions A Vol. 27 (1996), pp.801-808.

[9] W.F. Kaukler and F. Rosenberger: Metallurgical and Materials Transactions A Vol. 25 (1994), pp.1775-1777.

[10] R.H. Mathiesen: Physical Review Letters Vol. 83 (1999), pp.5062-5065.

[11] C. Zener: Journal of Applied Physics Vol. 20 (1949), pp.950-953.

[12] T.B. Massalski ed: Binary Alloy Phase Diagrams (American Society of Metals Ohio, USA 1986).

[13] H. Tanaka: The Journal of Chemical Physics Vol. 103 (1995), pp.2361-2364.

[14] G. Tegze, T. Pusztai, and L. Granasy: Materials Science and Engineering A Vol. 413-414 (2005), pp.418-422.

[15] L. Ratke: Material Science and Engineering A Vol. 413-414 (2005), pp.504-508.

[16] R.H. Mathiesen, L. Arnberg, K. Ramsoskar, T. Weitkamp, C. Rau, and A. Snigirev: Metallurgical and Materials Transactions B Vol. 33 (2002), p.613-623B.

DOI: 10.1007/s11663-002-0041-2

[17] M. Wu, A. Ludwig, and L. Ratke: Metallurgical and Materials Transactions A Vol. 34A (2003), p.3009-3019A.

[18] M. Gruber-Pretzler, L. Konozy, F. Mayer, M. Wu, A. Ludwig, R.H. Mathiesen, P.L. Schaffer, and L. Arnberg: in SP 07: Proc. of the 5th Decennial Int. Conf. on Solidification Processing. (2007). Sheffield, UK: University of Sheffield pp.249-253.

[19] H. Tanaka: Journal of Chemical Physics Vol. 105 (1996), pp.10099-101114.

[20] R. Asthana and S.N. Tewari: Journal of Materials Science Vol. 28 (1993), pp.5414-5425.
