Relaxation Behavior of Zr-Cu-Al Ternary Bulk Glassy Alloy Studied by Using Positron Annihilation Techniques

Akito Ishii; Shinya Mineno; Akihiro Iwase; Yoshihiko Yokoyama; Toyohiko J. Konno; Fuminobu Hori

doi:10.4028/www.scientific.net/MSF.654-656.1070

Paper Titles

Microstructural Assessment of the Oxidation Behavior of Cu-Based Metallic Glass Powder
p.1054

Mechanical Properties and Structures of High Entropy Alloys and Bulk Metallic Glasses Composites
p.1058

Bulk Metallic Glass Formation, Crystallization, and Magnetic Properties of RE₄Fe₇₂B₂₂M₂ Alloys
p.1062

Characteristics of Ti-Ni-Zr Thin Film Metallic Glasses Exhibiting a Shape Memory Effect after Crystallization
p.1066

Relaxation Behavior of Zr-Cu-Al Ternary Bulk Glassy Alloy Studied by Using Positron Annihilation Techniques
p.1070

Influence of Solidification Speed on Quality and Quantity of Structural Defects in Fe₆₁Co₁₀Zr_2.5Hf_2.5Y₂W₂B₂₀ Amorphous Alloy
p.1074

Amorphous Magnesium Sheet Produced by Twin Roll Casting
p.1078

Devitrification Studies of Mg₆₀Cu₂₉Gd₁₁ Bulk Metallic Glas
p.1082

Consolidation Behavior of Cu-Zr-Al Metallic Glass Powder by Spark Plasma Sintering
p.1086

HomeMaterials Science ForumMaterials Science Forum Vols. 654-656Relaxation Behavior of Zr-Cu-Al Ternary Bulk...

Relaxation Behavior of Zr-Cu-Al Ternary Bulk Glassy Alloy Studied by Using Positron Annihilation Techniques

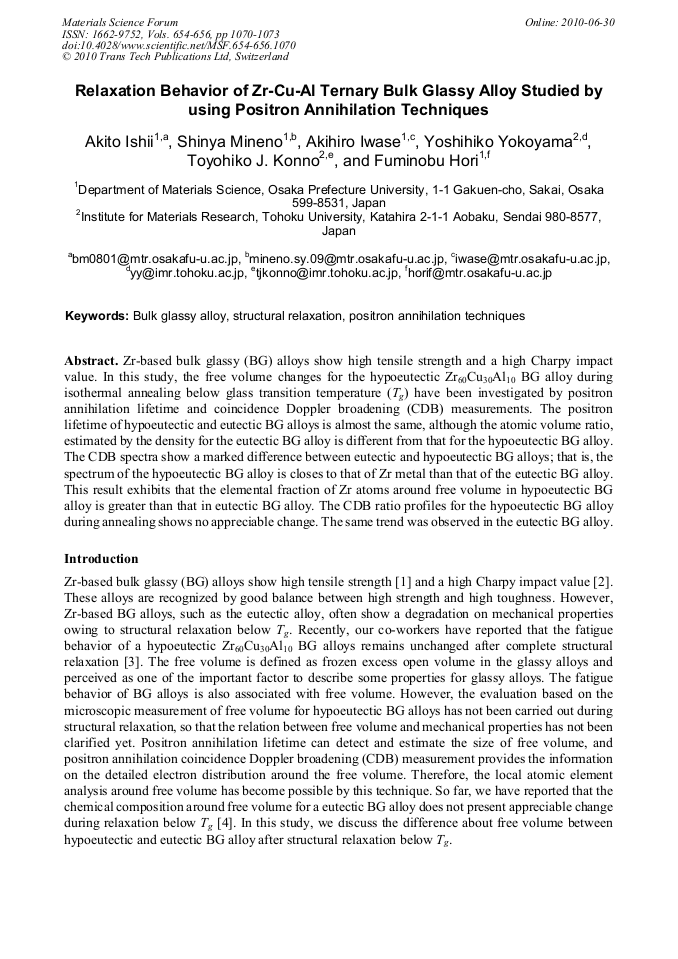

Abstract:

Zr-based bulk glassy (BG) alloys show high tensile strength and a high Charpy impact value. In this study, the free volume changes for the hypoeutectic Zr60Cu30Al10 BG alloy during isothermal annealing below glass transition temperature (Tg) have been investigated by positron annihilation lifetime and coincidence Doppler broadening (CDB) measurements. The positron lifetime of hypoeutectic and eutectic BG alloys is almost the same, although the atomic volume ratio, estimated by the density for the eutectic BG alloy is different from that for the hypoeutectic BG alloy. The CDB spectra show a marked difference between eutectic and hypoeutectic BG alloys; that is, the spectrum of the hypoeutectic BG alloy is closes to that of Zr metal than that of the eutectic BG alloy. This result exhibits that the elemental fraction of Zr atoms around free volume in hypoeutectic BG alloy is greater than that in eutectic BG alloy. The CDB ratio profiles for the hypoeutectic BG alloy during annealing shows no appreciable change. The same trend was observed in the eutectic BG alloy.
