High Strength and High Ductility in Electrodeposited Nanocrystalline Ni–W Alloy

Abstract:

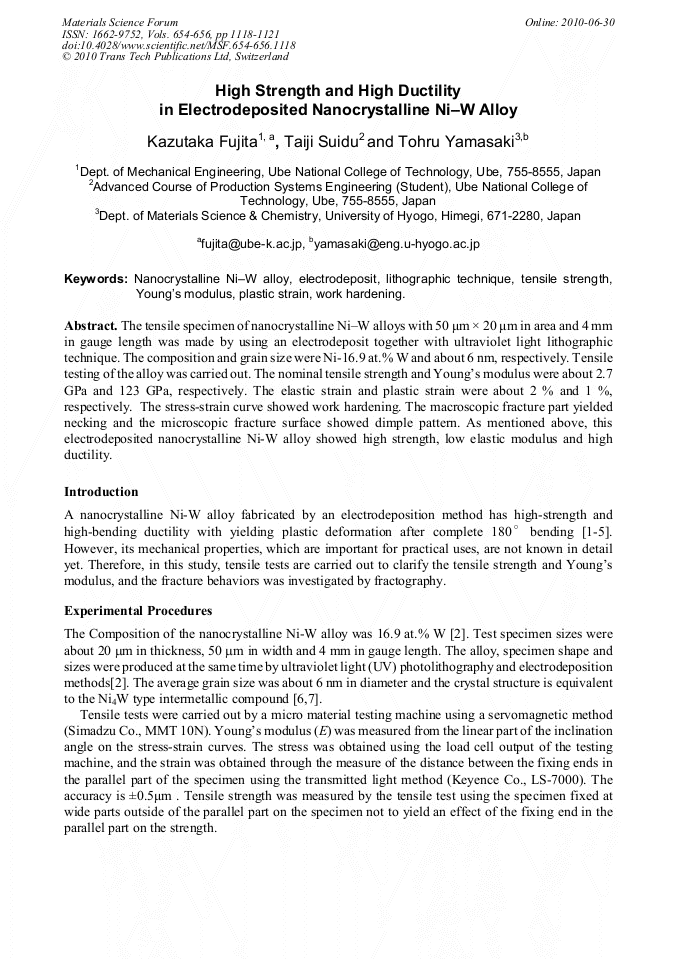

Article Preview

The tensile specimen of nanocrystalline Ni–W alloys with 50 μm × 20 μm in area and 4 mm in gauge length was made by using an electrodeposit together with ultraviolet light lithographic technique. The composition and grain size were Ni-16.9 at.% W and about 6 nm, respectively. Tensile testing of the alloy was carried out. The nominal tensile strength and Young’s modulus were about 2.7 GPa and 123 GPa, respectively. The elastic strain and plastic strain were about 2 % and 1 %, respectively. The stress-strain curve showed work hardening. The macroscopic fracture part yielded necking and the microscopic fracture surface showed dimple pattern. As mentioned above, this electrodeposited nanocrystalline Ni-W alloy showed high strength, low elastic modulus and high ductility.

Info:

Periodical:

Materials Science Forum (Volumes 654-656)

Main Theme:

Edited by:

Jian-Feng Nie and Allan Morton

Pages:

1118-1121

DOI:

10.4028/www.scientific.net/MSF.654-656.1118

Citation:

F. Kazutaka et al., "High Strength and High Ductility in Electrodeposited Nanocrystalline Ni–W Alloy", Materials Science Forum, Vols. 654-656, pp. 1118-1121, 2010

Online since:

June 2010

Export:

Price:

$35.00

[1] T. Yamasaki: J. Surface Finishing Soc., Japan, 55, (2004), pp.242-247.

[2] N. Oda, H. Matsuoka, T. Yamasaki and T. Fukami: J. Metastab. Nanocryst., 53, (2005), pp.411-414.

[3] H. Matsuoka, T. Yamasaki, Y. J. Zheng, T. Mitamura, M. Terasawa and T. Fukami: Mater. Sci. Eng. A, 449-451 (2007), pp.790-793.

[4] T. Yamasaki, N. Oda, H. Matsuoka and T. Fukami: Mater. Sci. Eng. A, 449-451 (2007), pp.833-835.

[5] T. Yamasaki, H. Yokoyama and T. Fukami: Rev. Adv. Mater. Sci., (2008), in press.

[6] T. Nasu, M. Sakurai, T. Kamiyama, T. Usuki, K. Tokumitsu and T. Yamasaki: Mater. Sci. Forum 426-432 (2003), pp.4585-4509.

DOI: 10.4028/www.scientific.net/msf.426-432.4585

[7] T. Nasu, M. Sakurai, T. Kamiyama, T. Usuke, O. Uemura, K. Tokumitsu and T. Yamasaki: Mater. Sci. Eng. A, 375-377 (2004), pp.163-170.

[8] Z.F. Zhang, J. Eckert, L. Schultz: Acta Mater., 51 (2003).

In order to see related information, you need to Login.
