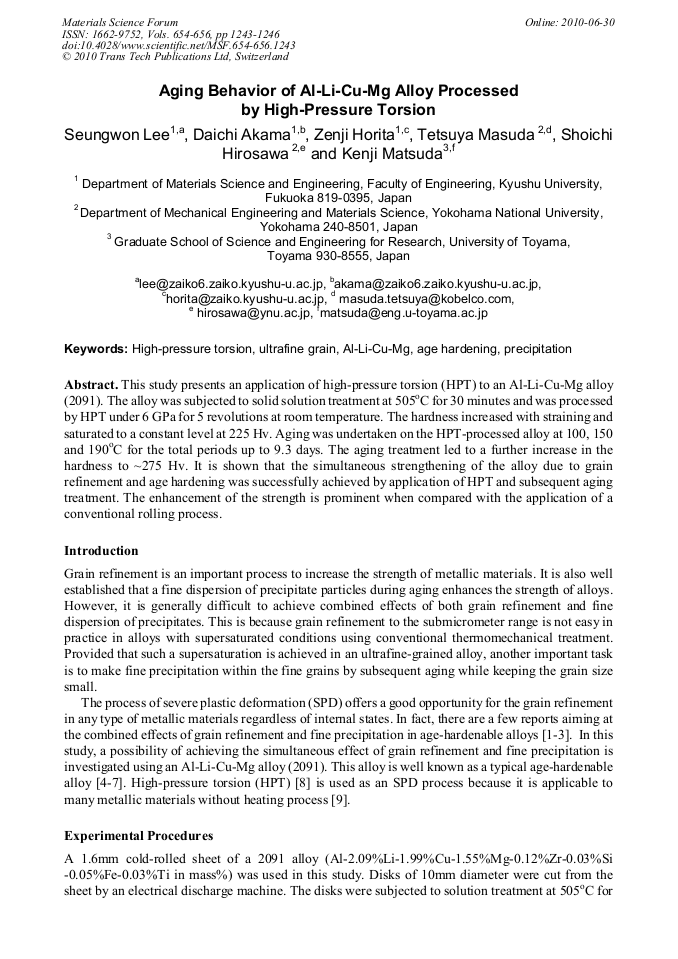

Aging Behavior of Al-Li-Cu-Mg Alloy Processed by High-Pressure Torsion

Abstract:

This study presents an application of high-pressure torsion (HPT) to an Al-Li-Cu-Mg alloy (2091). The alloy was subjected to solid solution treatment at 505oC for 30 minutes and was processed by HPT under 6 GPa for 5 revolutions at room temperature. The hardness increased with straining and saturated to a constant level at 225 Hv. Aging was undertaken on the HPT-processed alloy at 100, 150 and 190oC for the total periods up to 9.3 days. The aging treatment led to a further increase in the hardness to ~275 Hv. It is shown that the simultaneous strengthening of the alloy due to grain refinement and age hardening was successfully achieved by application of HPT and subsequent aging treatment. The enhancement of the strength is prominent when compared with the application of a conventional rolling process.

• Periodical: Materials Science Forum (Volumes 654-656)
• Pages: 1243-1246
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.654-656.1243
• Online since: June 2010
• Authors: Seungwon Lee, Daichi Akama, Z. Horita, Tetsuya Masuda, Shoichi Hirosawa, Kenji Matsuda
• Keywords: Age Hardening, Al-Li-Cu-Mg, High Pressure Torsion (HPT), Precipitation, Ultrafine Grained

References

[1] J.K. Kim, H.G. Jeong, S.I. Hong, Y.S. Kim and W.J. Kim: Scripta Mater. Vol. 45 (2001), p.901.

[2] Z. Horita, K. Ohashi, T. Fujita, K. Kaneko and T.G. Langdon: Adv. Mater. Vol. 17 (2005), p.1599.

[3] K. Ohashi, T. Fujita, K. Kaneko, Z. Horita and T.G. Langdon: Mater. Sci. Eng. A Vol. 437 (2006), p.240.

[4] D. S. McDarmaid: Mater. Sci. Eng. A Vol. 101 (1988), p.193.

[5] P. Gomiero, F. Livet, Y. Brechet and F. Louchet: Acta Metall. Mater. Vol. 40 (1992), p.847.

[6] P. Gomiero, Y. Brechet, F. Louchet, A. Tourabi and B. Wack: Acta Metall. Mater. Vol. 40 (1992), p.857.

DOI: 10.1016/0956-7151(92)90028-d

[7] G. Itoh, M. Kanno, T. Hagiwara and T. Sakamoto: Acta Mater. Vol. 47 (1999), p.3799.

[8] P.W. Bridgman: Phys. Rev. Vol. 48 (1935), p.825.

[9] A.P. Zhilyaev and T.G. Langdon: Prog. Mater. Sci. Vol. 53 (2008), p.893.

[10] G. Sakai, Z. Horita and T.G. Langdon: Mater. Sci. Eng. A Vol. 393 (2005), p.344.

[11] K. Edalati, T. Fujioka and Z. Horita: Mater. Sci. Eng. A Vol. 497 (2008), p.168.

[12] K. Edalati, T. Fujioka and Z. Horita: Mater. Trans. Vol. 50 (2009), p.44.

[13] F. Wetscher, A. Vorhauer, R. Stock and R. Pippan: Mater. Sci. Eng. A Vol. 387 (2004), p.809.

[14] K. Edalati, E. Matsubara and Z. Horita: Metall. Mater. Trans. A Vol. 40 (2009), p. (2079).

[15] K. Edalati and Z. Horita: Mater. Trans. Vol. 51 (2010), in press. Fig. 7 TEM micrographs after processing with HPT and aging at 150oC for 9. 3 days.
