Ductile-to-Brittle Transition Behavior of High-Nitrogen 18Cr-10Mn-0.35N Austenitic Steels Containing Ni and Cu

Abstract:

Article Preview

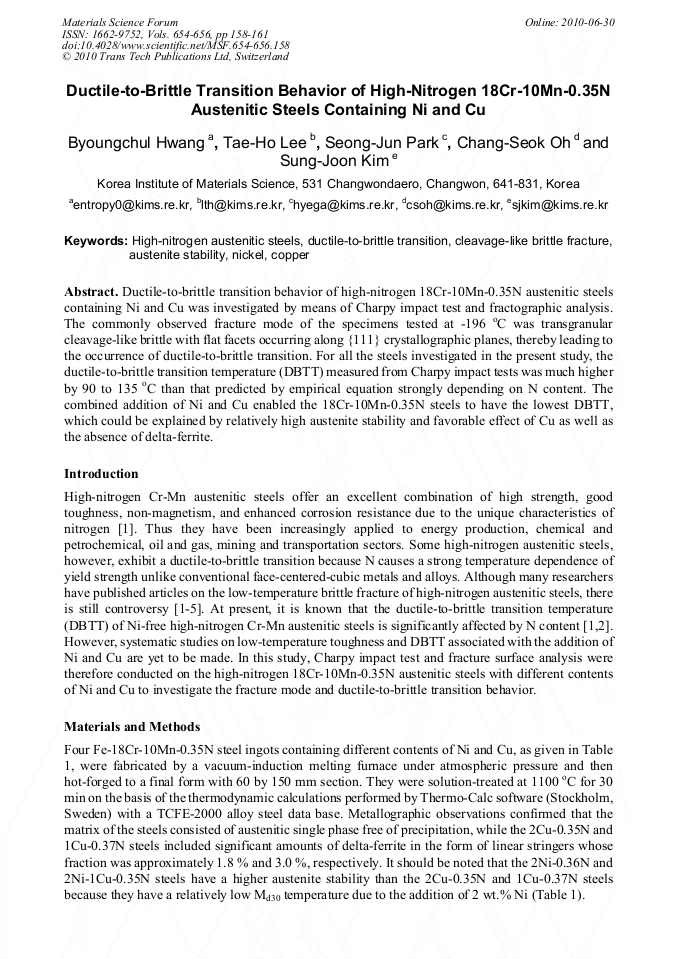

Ductile-to-brittle transition behavior of high-nitrogen 18Cr-10Mn-0.35N austenitic steels containing Ni and Cu was investigated by means of Charpy impact test and fractographic analysis. The commonly observed fracture mode of the specimens tested at -196 oC was transgranular cleavage-like brittle with flat facets occurring along {111} crystallographic planes, thereby leading to the occurrence of ductile-to-brittle transition. For all the steels investigated in the present study, the ductile-to-brittle transition temperature (DBTT) measured from Charpy impact tests was much higher by 90 to 135 oC than that predicted by empirical equation strongly depending on N content. The combined addition of Ni and Cu enabled the 18Cr-10Mn-0.35N steels to have the lowest DBTT, which could be explained by relatively high austenite stability and favorable effect of Cu as well as the absence of delta-ferrite.

Info:

Periodical:

Materials Science Forum (Volumes 654-656)

Main Theme:

Edited by:

Jian-Feng Nie and Allan Morton

Pages:

158-161

DOI:

10.4028/www.scientific.net/MSF.654-656.158

Citation:

B. C. Hwang et al., "Ductile-to-Brittle Transition Behavior of High-Nitrogen 18Cr-10Mn-0.35N Austenitic Steels Containing Ni and Cu", Materials Science Forum, Vols. 654-656, pp. 158-161, 2010

Online since:

June 2010

Export:

Price:

$35.00

In order to see related information, you need to Login.

In order to see related information, you need to Login.
