Corrosion Behavior of 6000 Series Aluminum Alloys Produced by Conventional and Powder Extruded Process through Electrochemical Impedance Method

Satoshi Sunada; Norio Nunomura; Kazuhiko Majima

doi:10.4028/www.scientific.net/MSF.654-656.1964

Paper Titles

High Temperature Corrosion of Fe-Cr, Fe-Al, Fe-Si and Fe-Si-Al Alloys in CO₂-H₂O Gases
p.1948

Corrosion and Oxidation Protection of Ti₆Al₄V Alloy by an Inorganic Metal Modified Silicate Composite Coating
p.1952

Surface Modification for Enhanced Corrosion Resistance Using Fluid Bed Reactor Chemical Vapour Deposition (FBR-CVD)
p.1956

Development of Laser Surface Treatment with Excellent Corrosion Resistance and Conductivity Performance on Magnesium Alloy Products
p.1960

Corrosion Behavior of 6000 Series Aluminum Alloys Produced by Conventional and Powder Extruded Process through Electrochemical Impedance Method
p.1964

Electrochemical Corrosion Behaviors Using Double Glow Forming TiN Multi-Permeation Layer
p.1968

Impact Indentation Properties and Interfacial Strength of Ceramic Coatings
p.1972

Relaxor Ferroelectricity and Electrostrictive Behavior of KNN-ST Ceramics
p.1978

Environmental Impact Evaluation and Rationalization of Ceramics Process on the Basis of Exergy Analysis
p.1982

HomeMaterials Science ForumMaterials Science Forum Vols. 654-656Corrosion Behavior of 6000 Series Aluminum Alloys...

Corrosion Behavior of 6000 Series Aluminum Alloys Produced by Conventional and Powder Extruded Process through Electrochemical Impedance Method

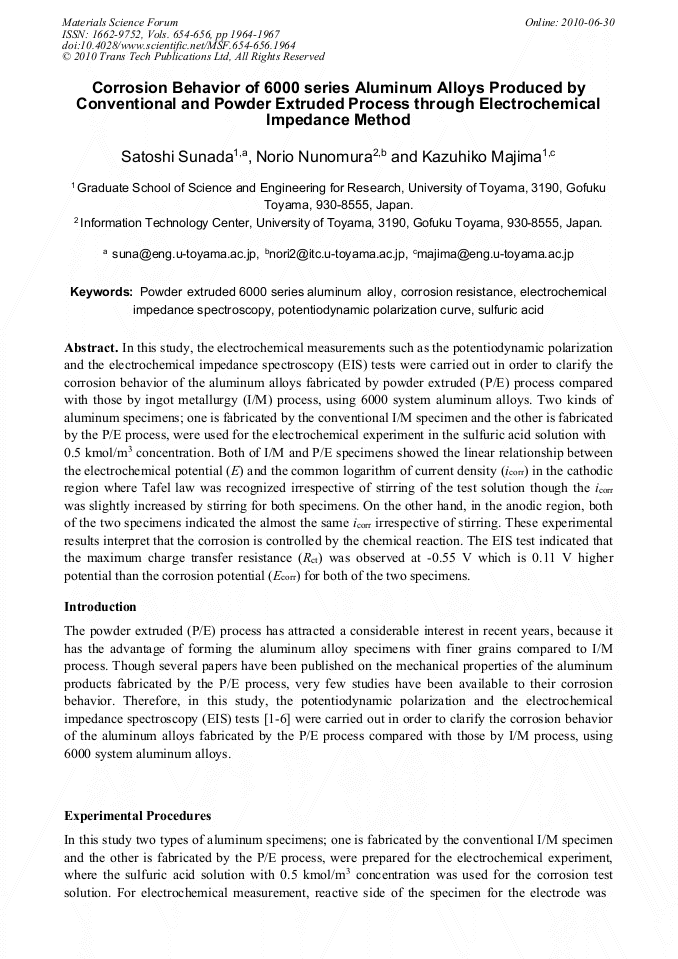

Abstract:

In this study, the electrochemical measurements such as the potentiodynamic polarization and the electrochemical impedance spectroscopy (EIS) tests were carried out in order to clarify the corrosion behavior of the aluminum alloys fabricated by powder extruded (P/E) process compared with those by ingot metallurgy (I/M) process, using 6000 system aluminum alloys. Two kinds of aluminum specimens; one is fabricated by the conventional I/M specimen and the other is fabricated by the P/E process, were used for the electrochemical experiment in the sulfuric acid solution with 0.5 kmol/m3 concentration. Both of I/M and P/E specimens showed the linear relationship between the electrochemical potential (E) and the common logarithm of current density (icorr) in the cathodic region where Tafel law was recognized irrespective of stirring of the test solution though the icorr was slightly increased by stirring for both specimens. On the other hand, in the anodic region, both of the two specimens indicated the almost the same icorr irrespective of stirring. These experimental results interpret that the corrosion is controlled by the chemical reaction. The EIS test indicated that the maximum charge transfer resistance (Rct) was observed at -0.55 V which is 0.11 V higher potential than the corrosion potential (Ecorr) for both of the two specimens.
