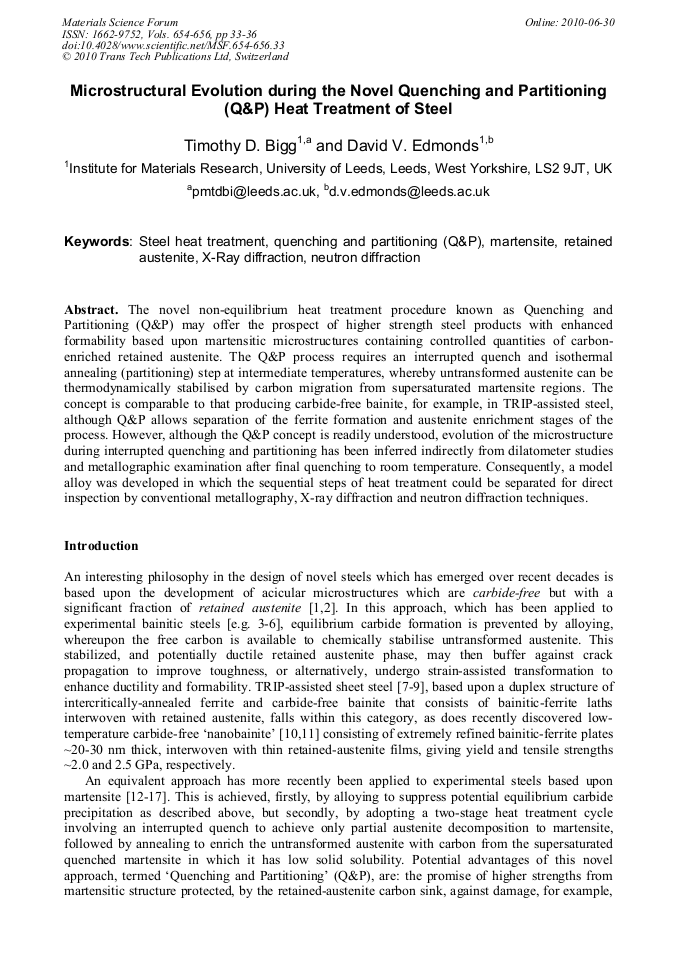

Microstructural Evolution during the Novel Quenching and Partitioning (Q&P) Heat Treatment of Steel

Abstract:

The novel non-equilibrium heat treatment procedure known as Quenching and Partitioning (Q&P) may offer the prospect of higher strength steel products with enhanced formability based upon martensitic microstructures containing controlled quantities of carbon-enriched retained austenite. The Q&P process requires an interrupted quench and isothermal annealing (partitioning) step at intermediate temperatures, whereby untransformed austenite can be thermodynamically stabilised by carbon migration from supersaturated martensite regions. The concept is comparable to that producing carbide-free bainite, for example, in TRIP-assisted steel, although Q&P allows separation of the ferrite formation and austenite enrichment stages of the process. However, although the Q&P concept is readily understood, evolution of the microstructure during interrupted quenching and partitioning has been inferred indirectly from dilatometer studies and metallographic examination after final quenching to room temperature. Consequently, a model alloy was developed in which the sequential steps of heat treatment could be separated for direct inspection by conventional metallography, X-ray diffraction and neutron diffraction techniques.

• Periodical: Materials Science Forum (Volumes 654-656)
• Pages: 33-36
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.654-656.33
• Online since: June 2010
• Authors: Timothy D. Bigg, David Edmonds
• Keywords: Martensite, Neutron Diffraction, Quenching and Partitioning (Q&P), Retained Austenite, Steel Heat Treatment, X-Ray Diffraction (XRD)

References

[1] D.V. Edmonds: Mater. Sci. Forum Vol. 638-642 (2010), p.110.

[2] D.V. Edmonds and J. G. Speer: Mater. Sci. Technol. Vol. 26 (2010), in press.

[3] H.K.D.H. Bhadeshia and D.V. Edmonds: Metal Science J. Vol. 17 (1983), p.411; 420.

[4] V.T.T. Miihkinen and D.V. Edmonds: Mater. Sci. Technol. Vol. 3 (1987), p.422; 432; 441.

[5] H.K.D.H. Bhadeshia, in: Future Developments of Metals and Ceramics, edited by J.A. Charles, G.W. Greenwood and G.C. Smith, Inst. Mater., London (1992), p.25.

[6] J.K. Yates: Sci. Parliam. Vol. 53 (1996), p.2.

[7] I. Tamura: Metal Sci. Vol. 16 (1982), p.245.

[8] O. Matsumura, Y. Sakuma and H. Takechi: Scripta Metall. Vol. 21 (1987), p.1301.

[9] P. Jacques, Y. Carnot, P. Harlet, J. Ladriere and F. Delannay: Metall. Trans. Vol. 29A (1998), p.2383.

[10] F.G. Caballero, H.K.D.H. Bhadeshia, J.A. Mawella, D.G. Jones and P. Brown: Mater. Sci. Technol. Vol. 17 (2001), p.512; 517.

[11] F.G. Caballero, H.K.D.H. Bhadeshia, J.A. Mawella, D.G. Jones and P. Brown: Mater. Sci. Technol. Vol. 18 (2002), p.279.

[12] J.G. Speer, D.K. Matlock, B.C. De Cooman and J.G. Schroth: Acta Mater. Vol. 51 (2003), p.2611.

[13] J.G. Speer, A.M. Streicher, D.K. Matlock, F.C. Rizzo and G. Krauss, in: Austenite Formation and Decomposition, edited by E.B. Damm and M. Merwin, TMS/ISS, Warrendale, PA, USA (2003), p.505.

[14] D.V. Edmonds, K. He, F.C. Rizzo, B.C. De Cooman, D.K. Matlock and J.G. Speer: Mater. Sci. Eng. Vol. A438-440 (2006), p.25.

[15] J.G. Speer, A.J. Shutts, D.K. Matlock, D.V. Edmonds, F.C. Rizzo, E.B. Damm, in: New Developments in Long and Forged Products: Metallurgy and Applications, Association for Iron & Steel Technology, Warrendale, PA, USA (2006), p.191.

[16] D.K. Matlock and J.G. Speer, in: Structural Steels, edited by H.C. Lee, The Korean Institute of Metals and Materials, Seoul (2006), p.774.

[17] E. De Moor: Assessment of Quenching and Partitioning as a Fundamentally New Way of Producing Advanced High Strength Martensitic Steel Grades with Improved Ductility (PhD Thesis, Universiteit Gent 2009).

[18] K. He, D.V. Edmonds, J.G. Speer, D.K. Matlock and F.C. Rizzo, in: 14 th European Microscopy Congress Vol. 2, edited by S. Richter and A. Schwedt, Springer, Berlin, Germany (2008), p.429.

[19] D.V. Edmonds, K. He, F.C. Rizzo, J.G. Speer and D.K. Matlock, in: New Developments on Metallurgy and Applications of High Strength Steels, edited by T. Perez, TMS, Warrendale, PA, USA (2009), p.829.

[20] S.J. Kim, H.J. Kim and B.C. De Cooman, in: Proc. Materials Science and Technology, MS&T'07 Association for Iron & Steel Technology, Warrendale, PA, USA (2007), p.73.

[21] D.H. Kim, J.G. Speer, H.S. Kim and B.C. De Cooman, in: Steel Properties and Applications, MS&T'09, Association for Iron & Steel Technology, Warrendale, PA, USA (2009), p.849.

[22] D.H. Kim, J.G. Speer, H.S. Kim and B.C. De Cooman: Metall. Trans. Vol. 40A (2009), p. (2048).
