Effect of Minor Additions of Al and Si on the Mechanical Properties of Cast Mg-3Sn-2Ca Alloys in Low Temperature Range

Abstract:

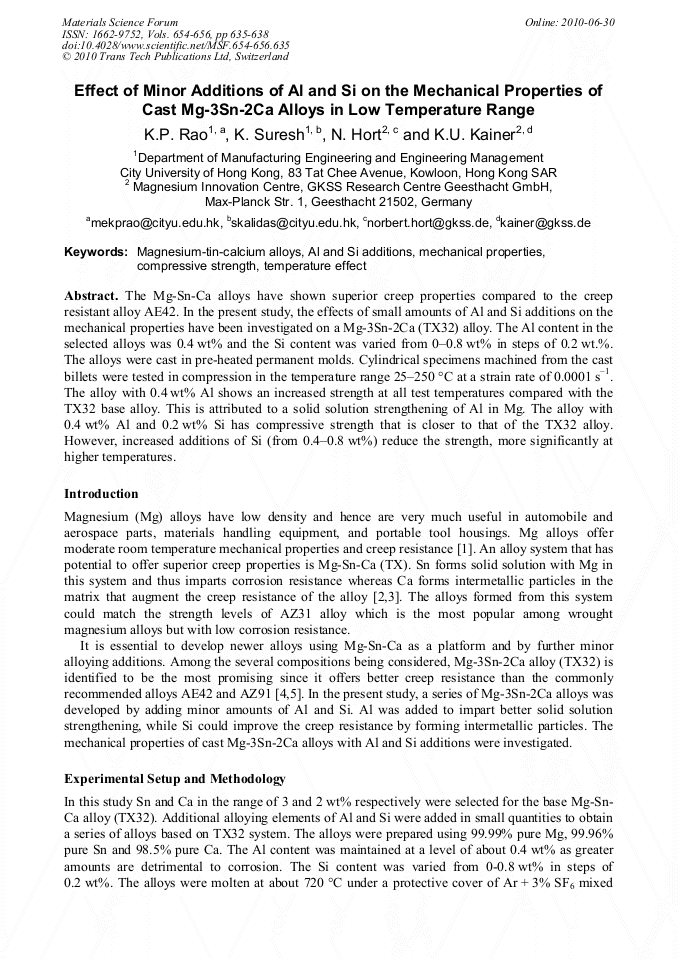

The Mg-Sn-Ca alloys have shown superior creep properties compared to the creep resistant alloy AE42. In the present study, the effects of small amounts of Al and Si additions on the mechanical properties have been investigated on a Mg-3Sn-2Ca (TX32) alloy. The Al content in the selected alloys was 0.4 wt% and the Si content was varied from 0–0.8 wt% in steps of 0.2 wt.%. The alloys were cast in pre-heated permanent molds. Cylindrical specimens machined from the cast billets were tested in compression in the temperature range 25–250 °C at a strain rate of 0.0001 s–1. The alloy with 0.4 wt% Al shows an increased strength at all test temperatures compared with the TX32 base alloy. This is attributed to a solid solution strengthening of Al in Mg. The alloy with 0.4 wt% Al and 0.2 wt% Si has compressive strength that is closer to that of the TX32 alloy. However, increased additions of Si (from 0.4–0.8 wt%) reduce the strength, more significantly at higher temperatures.

• Periodical: Materials Science Forum (Volumes 654-656)
• Pages: 635-638
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.654-656.635
• Online since: June 2010
• Authors: Kamineni Pitcheswara Rao, K. Suresh, Norbert Hort, Karl Ulrich Kainer
• Keywords: Al Addition, Compressive Strength, Magnesium-Tin-Calcium Alloy, Mechanical Property, Si Addition, Temperature Effect

References

[1] William F. Smith: Structure and Properties of Engineering Alloys (McGraw-Hill, Inc., USA 1993).

[2] N. Hort, Y. Huang, T. Abu Leil, P. Maier and K.U. Kainer: Adv. Eng. Mater., Vol. 8 (2006), p.359.

[3] T. Abu Leil, Y. Huang, H. Dieringa, N. Hort, K.U. Kainer, J. Bursik, Y. Jaraskova and K.P. Rao: Mater. Sci. Forum, Vol. 546-549 (2007), p.69.

[4] T. Abu Leil, K.P. Rao, N. Hort, Y. Huang, C. Blawert, H. Dieringa and K.U. Kainer, in: Magnesium Technology 2007, edited by R.S. Beals, A.A. Luo, N.R. Neelameggham, and M.O. Pekguleryuz, TMS (The Minerals, Metals and Materials Society) (2007).

[5] N. Hort, K.P. Rao, T. Abu Leil, H. Dieringa, Y.V.R.K. Prasad and K.U. Kainer, in: Magnesium Technology 2008, edited by M. Pekguleryuz, E. Nyberg, R.S. Beals and N. Neerameggham, TMS (The Minerals, Metals and Materials Society) (2008) p.401.

[6] Y.V.R.K. Prasad and K.P. Rao: Mater. Sci. Eng. A, Vol. 374 (2004) p.335.

[7] K.M. Asl, A. Tari and F. Khomamizadeh: Mater. Sci. Eng. A, Vol. 523 (2009), p.1.

[8] D.H. Kang, S. Park and N. Kim: Mater. Sci. Eng. A, Vol. 413-414 (2005), p.555.

[9] M.S. Dargusch, A.L. Bowles, K. Pettersen, P. Bakke and G.L. Dunlop: Metall. Mater. Trans., Vol. 35A (2004), p. (1905).

[10] A. Srinivasan, U.T.S. Pillai and B.C. Pai: Metall. Mater. Trans., Vol. 36A (2005), p.2235.

[11] H.M. Nanjunda Swamy, S.K. Nath and S. Ray: Metall. Mater. Trans., Vol. 40A (2009), p.3284.
