Improvement of the Dry Friction and Wear Properties of the Si/SiC by Doping with Ni and PbO

Ke Zheng Sang; Wen Chao Wang; Gang Qiang Geng

doi:10.4028/www.scientific.net/MSF.658.456

Paper Titles

A Model of Calculating Contact Length between Stock and Roll during Plate Rolling
p.440

Effects of the Cooling Rate on the Solidification Microstructure of Cu-Ni Alloy
p.444

Study on the Microstructure of Au/CdZnTe Interface by HRTEM
p.448

Surface Nanocrystallization of Zircaloy-4 by Surface Mechanical Attrition Treatment
p.452

Improvement of the Dry Friction and Wear Properties of the Si/SiC by Doping with Ni and PbO
p.456

Fabrication and Thermal Property of AlN/ Epoxy Composites
p.460

Preparation and Dielectric Properties of Alumina Filled Epoxy Nano-Composite
p.463

Optimization Fabrication of Plasma Treated Nano-Titanium Dioxide Particles/PP/PLA Composites Filaments Using Melt Spinning
p.467

Electroless Copper Plating on Ti₃SiC₂ Powder Surface Using Ascorbic Acid as a Reducing Agent
p.471

HomeMaterials Science ForumMaterials Science Forum Vol. 658Improvement of the Dry Friction and Wear...

Improvement of the Dry Friction and Wear Properties of the Si/SiC by Doping with Ni and PbO

Abstract:

The composite of silicon carbide with nickel and lead oxide was prepared by reaction sintered method. The phase compositions of the composites were studied by XRD, SEM and EDX. Friction and wear properties of the composites in dry conditions at the temperatures 15°C, 300°C and 600°C were tested using a pin-on-disk tribometer. The results showed that NiSi2 was formed and located between the SiC particles during sintering process. However the PbO was remained and distributed uniformly in the composites besides a little of Pb4SiO6 were formed. Friction coefficient of the composites decreased with the increase of the temperature and was about 0.2 at 600°C. And wear resistance of the composites was improved at all test temperatures comparing with that of the Si/SiC.

You might also be interested in these eBooks

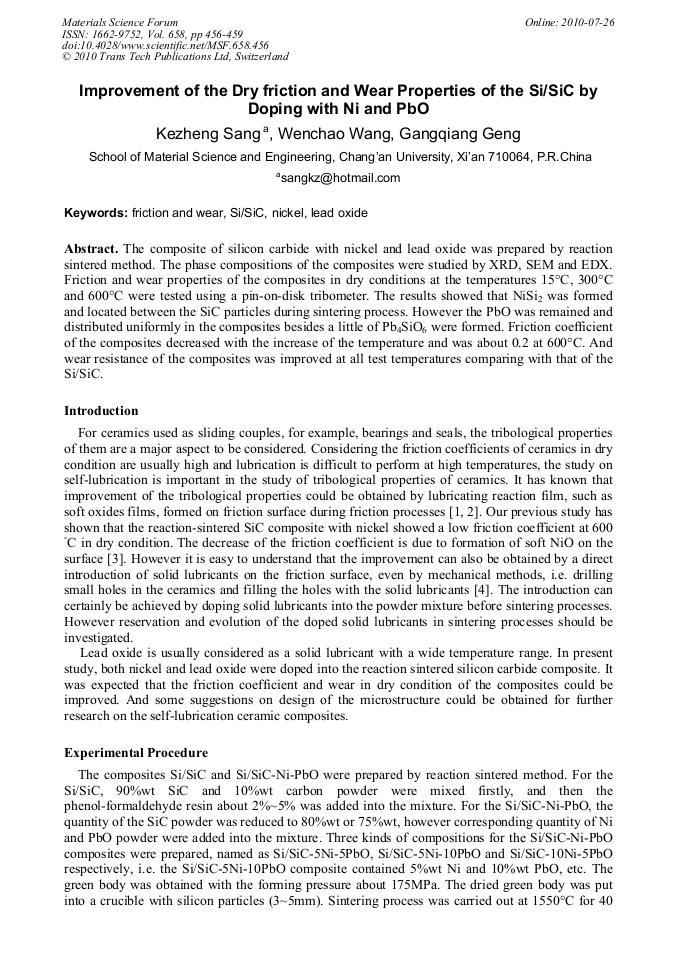

View Preview

Info:

Periodical:

Materials Science Forum (Volume 658)

Pages:

456-459

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.658.456

Citation:

Cite this paper

Online since:

July 2010

Authors:

Ke Zheng Sang, Wen Chao Wang, Gang Qiang Geng

Keywords:

Friction, Lead Oxide, Nickel, Si/SiC, Wear

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. Skopp and M. Woydt: Trans. Tribol. Vol. 38 (2) (1995), p.233.

Google Scholar

[2] M.S. Bogdanski, H.E. Sliney and C. Dellacorte: Lubr. Eng. Vol. 51 (8) (1995), p.675.

Google Scholar

[3] K. Sang and Z. Jin: Wear Vol. 246 (2000), p.34.

Google Scholar

[4] A. Gangopadhyay, S. Jahanmir and M.B. Peterson, in: Friction and Wear of Ceramics, edtied by S. Jahanmir Publications/Marcel Dekker, New York, (1994).

Google Scholar

[5] X. Dong, S. Jahanmir and L.K. Ives: Tribol. Int. Vol. 28 (8) (1995), p.559.

Google Scholar

[6] K. Sang and Z. Jin: Tribol. Int. Vol. 34 (2001), p.315. Fig. 5 SEM photograph of the sectioned worn surface of Si/SiC-5Ni-5PbO at 300°C V.

Google Scholar
