Experimental and Numerical Study on Liner Shaped Charge

Abstract:

There are few research papers of liner shaped charge (LSC). In this time simplified LSC was made from an explosive and vertically-folded copper plate. In order to confirm a performance of the simplified LSC, steel cutting experiments were conducted by changing distance from the simplified LSC to target steel. Numerical analysis was also conducted by using Ls-dyna. Penetration depth was measured after experiments. Collision velocity of copper was calculated by using Gurnney equation. Numerical simulation model was made by SPH, because large deformation was occurred during collision of copper and steel penetration process. Results from numerical analysis were good correspondence with experimental results. Details are reported on this paper.

You might also be interested in these eBooks

Explosion, Shock Wave and High-Energy Reaction Phenomena

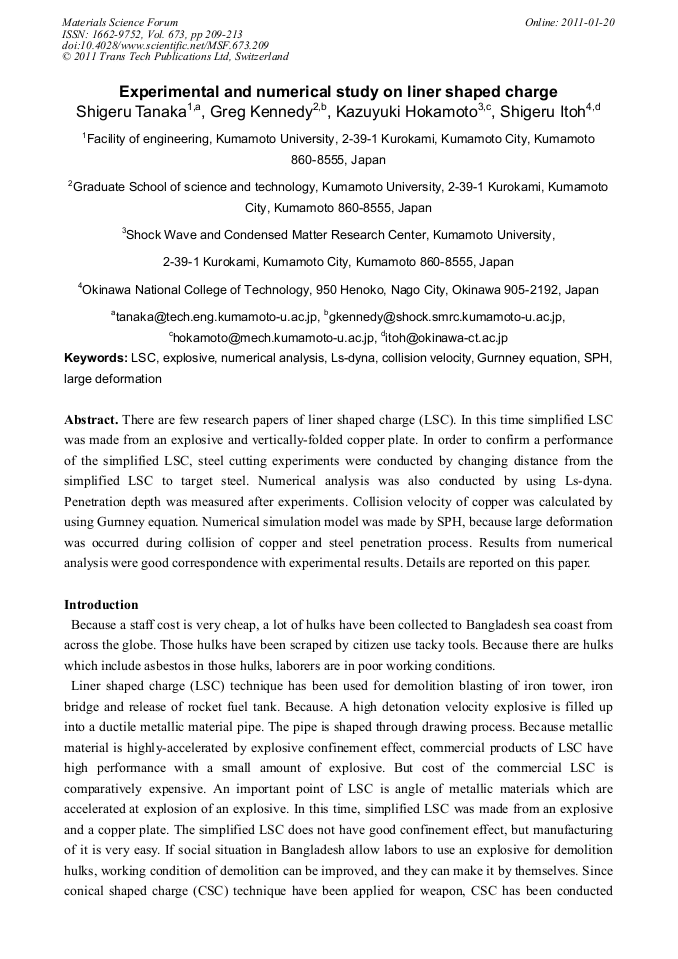

View Preview

Info:

Periodical:

Materials Science Forum (Volume 673)

Pages:

209-213

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.673.209

Citation:

Cite this paper

Online since:

January 2011

Authors:

Shigeru Tanaka, Greg Kennedy, Kazuyuki Hokamoto, Shigeru Itoh

Keywords:

Collision Velocity, Explosive, Gurnney Equation, Large Deformation, LSC, LS-DYNA, Numerical Analysis, Smoothed Particle Hydrodynamic (SPH)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. A. Meyers, S. L. Wang: An improved method for shock consolidation of powders, Acta metall, Vol. 36, (1988), pp.570-607.

Google Scholar

[2] M. A. Meyers, S. L. Wang: An improved method for shock consolidation of powders, Acta metall, Vol. 36, (1988), pp.925-936.

DOI: 10.1016/0001-6160(88)90147-2

Google Scholar

[3] M. A. Meyers, S. L. Wang: An improved method for shock consolidation of powders, Acta metall, Vol. 36, (1988), pp.241-242.

Google Scholar

[4] Vishal Mehra, Shashank Chaturvedi, High velocity impact of metal sphere on thin metallic plates: A comparative smooth particle hydrodynamics study. Journal of Computational Physics. 212, (2006), 318–337.

DOI: 10.1016/j.jcp.2005.06.020

Google Scholar

[5] S. P. Marsh, LASL Shock Hugoniot Data, University of California Press. (1980).

Google Scholar

[6] R. Kinslow, High-Velocity Impact phenomena, Academic, New York. (1970).

Google Scholar

[7] J. W. Kury, H. C. Horning, E. L. Lee, J. L. McDonnel, D. L. Ornellas, M. Finger, F. M. Strange and M. L. Wilkins, Metal Acceleration by Chemical Explosives, 4th symposium on Detonation, (1956), A 109-120.

Google Scholar

[8] E. L. Lee, H. C. Horning and J. W. Kury, Adiabatic Expansion of High Explosive Detonation Products, UCRL-50422, TID-4500, UC-4, (1968).

DOI: 10.2172/4783904

Google Scholar
