The Influence of Growth Rate on Mechanical and Thermodynamical Properties of the Zn-Ti0.075-Cu0.15 Single Crystals Deformed at (0001)<11-20> System

Abstract:

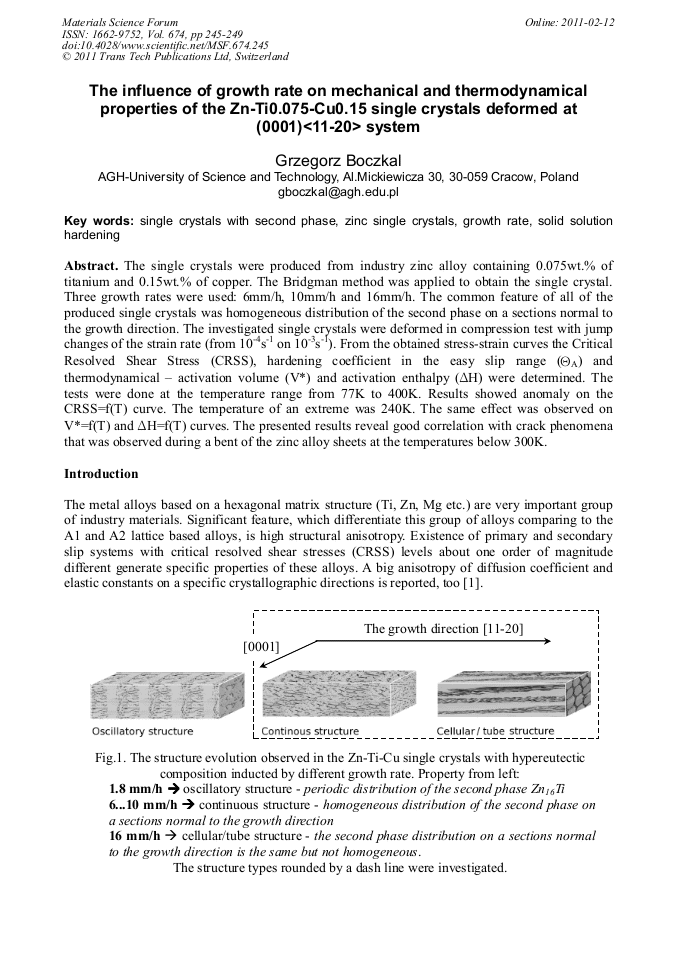

The single crystals were produced from industry zinc alloy containing 0.075wt.% of titanium and 0.15wt.% of copper. The Bridgman method was applied to obtain the single crystal. Three growth rates were used: 6mm/h, 10mm/h and 16mm/h. The common feature of all of the produced single crystals was homogeneous distribution of the second phase on a sections normal to the growth direction. The investigated single crystals were deformed in compression test with jump changes of the strain rate (from 10^-4s^-1 on 10^-3s^-1). From the obtained stress-strain curves the Critical Resolved Shear Stress (CRSS), hardening coefficient in the easy slip range (QA) and thermodynamical – activation volume (V*) and activation enthalpy (DH) were determined. The tests were done at the temperature range from 77K to 400K. Results showed anomaly on the CRSS=f(T) curve. The temperature of an extreme was 240K. The same effect was observed on V*=f(T) and DH=f(T) curves. The presented results reveal good correlation with crack phenomena that was observed during a bent of the zinc alloy sheets at the temperatures below 300K.

• Periodical: Materials Science Forum (Volume 674)
• Pages: 245-249
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.674.245
• Online since: February 2011
• Authors: Grzegorz Boczkal
• Keywords: Growth Rate, Single Crystals with Second Phase, Solid Solution Hardening, Zinc Single Crystals

References

[1] P. Haasen: Physical Metallurgy, Cambridge University Press, New York, (1996).

[2] Von W. Heine, U. Zwicker: Untersuchungen an Legierungen des Systems Zink-Titan, Z. Metallkde. 53, H. 6 (1962).

DOI: 10.1515/ijmr-1962-530607

[3] J. L. Murray: Ti-Zn, Binary Alloy Phase Diagrams, ASM International, (1990).

[4] G. Boczkal, B. Mikulowski, C. -G. Oertel, and W. Skrotzki: Work-hardening characteristics of Zn-Ti alloy single crystals, Cryst. Res. Technol. 45, 111, (2010).

DOI: 10.1002/crat.200900537

[5] B. Mikulowski: Strain Hardening of Zinc Monocrystals with Additions of Silver or Gallium, Metallurgy and Foundry Practice, Scientific Bulletin of Univ. of Mining and Metallurgy 96, Cracow (1982).

[6] B. Mikulowski, G. Boczkal: Ustalenie i wyeliminowanie przyczyn pękania blach ZnCuTi przy rozginaniu, Zlecenie Nr DK/49/2005 z dnia 30. 03. 2005 r.

[7] G. Boczkal, B. Mikułowski, T. Dziędziel: Problems of modern techniques inaspect of engineering and education, eds.: Paweł Kurtyka [et al. ] ; PU IT. — (Monography /Pedagogical University. Cracow. Institute of Technology), p.61–65 (2006).

[8] G. Boczkal, M. Mikułowski, W. Wołczyński: Oscillatory structure of the Zn-Cu-Ti single crystals, Mat. Sci. Forum 649, pp.113-118, (2010).

DOI: 10.4028/www.scientific.net/msf.649.113

[9] W. Wołczyński, B. Mikułowski, G. Boczkal: Control of the single crystal reinforcement by the intermetallic compound layers, Mat. Sci. Forum 649, pp.125-130, (2010).

DOI: 10.4028/www.scientific.net/msf.649.125

[10] G. Boczkal, B. Mikułowski, I. Hunsche, C.G. Oertel, W. Skrotzki: Precipitation of intermetallic phase in Zn-Ti alloy single crystals, Cryst. Res. Technol. 43, No. 2, 135-140, (2008).

DOI: 10.1002/crat.200711068

[11] A.G. Evans, R.D. Rawlings: The Thermally Activated Deformation of Crystalline Materials, Phys. Stat. Sol. 34, vol. 9, pp.9-31, (1969).

DOI: 10.1002/pssb.19690340102

[12] P. Lukac: Thermisch Aktivierte Gleitung in Zinkkristallen, Z. Metallkde., Bd. 57, H. 7, (1966).

DOI: 10.1515/ijmr-1966-570711
