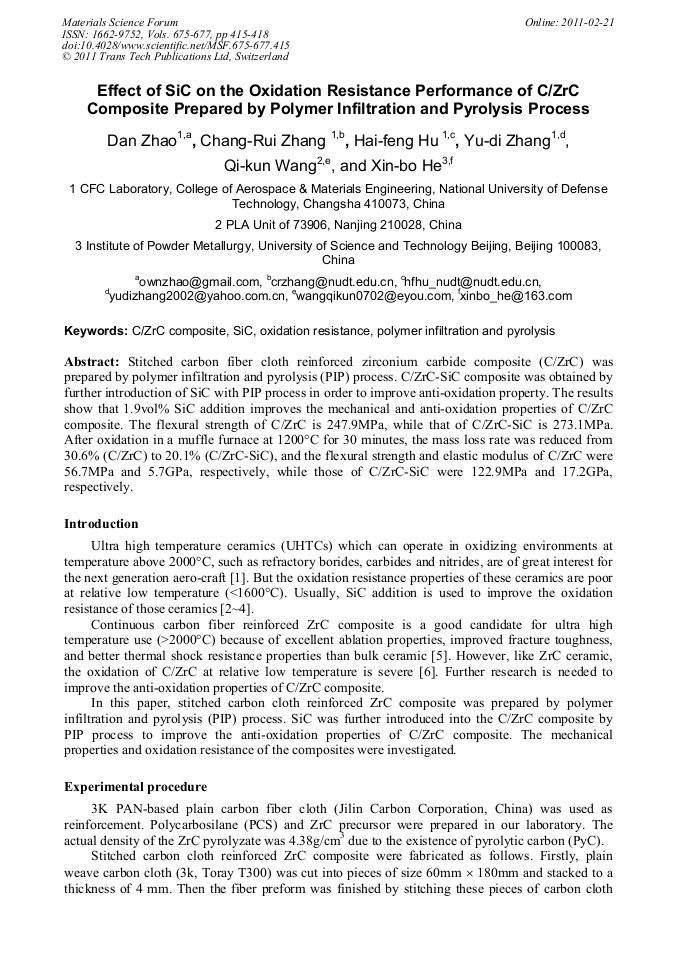

Effect of SiC on the Oxidation Resistance Performance of C/ZrC Composite Prepared by Polymer Infiltration and Pyrolysis Process

Abstract:

Stitched carbon fiber cloth reinforced zirconium carbide composite (C/ZrC) was prepared by polymer infiltration and pyrolysis (PIP) process. C/ZrC-SiC composite was obtained by further introduction of SiC with PIP process in order to improve anti-oxidation property. The results show that 1.9vol% SiC addition improves the mechanical and anti-oxidation properties of C/ZrC composite. The flexural strength of C/ZrC is 247.9MPa, while that of C/ZrC-SiC is 273.1MPa. After oxidation in a muffle furnace at 1200°C for 30 minutes, the mass loss rate was reduced from 30.6% (C/ZrC) to 20.1% (C/ZrC-SiC), and the flexural strength and elastic modulus of C/ZrC were 56.7MPa and 5.7GPa, respectively, while those of C/ZrC-SiC were 122.9MPa and 17.2GPa, respectively.

• Periodical: Materials Science Forum (Volumes 675-677)
• Pages: 415-418
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.675-677.415
• Online since: February 2011
• Authors: Dan Zhao, Chang Rui Zhang, Hai Feng Hu, Yu Di Zhang, Qi Kun Wang, Xin Bo He
• Keywords: C/ZrC Composite, Oxidation Resistance, Polymer Infiltration, Polymer Pyrolysis, Silicon Carbide (SiC)

References

[1] D.M. Van Wie, D.G. Drewry Jr., D.E. King and C.M. Hudson: Journal of materials science Vol. 39 (2004), p.5915.

[2] E. V Clougherty, D. Kalish and E. T Peters: AFML-TR-68-190 (1968).

[3] W.G. Fahrenholtz, G.E. Hilmas, A.L. Chamberlain and J.W. Zimmermann: Journal of materials science Vol. 39 (2004), p.5951.

[4] J. Han, P. Hu, X. Zhang and S. Meng: Scripta material Vol. 57 (2007), p.825.

[5] H. Li, L. Zhang, L. Cheng and Y. Wang: Ceramics International Vol. 35 (2009), p.2831.

[6] Q.K. Wang, Z.H. Chen, H.F. Hu and Y.D. Zhang: Journal of Aeronautical Materials Vol. 28 (2008), p.69.
