Microstructure and Mechanical Properties of Austempered Ultrahigh Carbon Steel 1.4%C

Article Preview

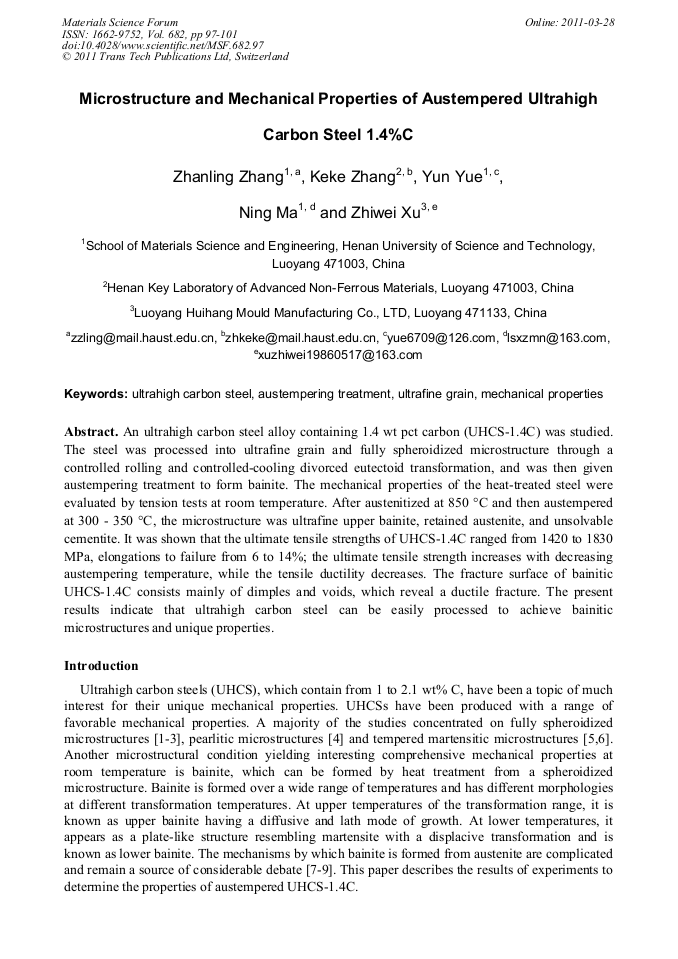

Abstract:

An ultrahigh carbon steel alloy containing 1.4 wt pct carbon (UHCS-1.4C) was studied. The steel was processed into ultrafine grain and fully spheroidized microstructure through a controlled rolling and controlled-cooling divorced eutectoid transformation, and was then given austempering treatment to form bainite. The mechanical properties of the heat-treated steel were evaluated by tension tests at room temperature. After austenitized at 850 °C and then austempered at 300 - 350 °C, the microstructure was ultrafine upper bainite, retained austenite, and unsolvable cementite. It was shown that the ultimate tensile strengths of UHCS-1.4C ranged from 1420 to 1830 MPa, elongations to failure from 6 to 14%; the ultimate tensile strength increases with decreasing austempering temperature, while the tensile ductility decreases. The fracture surface of bainitic UHCS-1.4C consists mainly of dimples and voids, which reveal a ductile fracture. The present results indicate that ultrahigh carbon steel can be easily processed to achieve bainitic microstructures and unique properties.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

97-101

Citation:

Online since:

March 2011

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] C.K. Syn, D.R. Lesuer and O.D. Sherby: Metallurgical and Materials Transactions A Vol. 25 (1994), p.1481.

Google Scholar

[2] D.R. Lesuer, C.K. Syn, O.D. Sherby: Acta Metallurgica et Materialia Vol. 43 (1995), p.3827.

DOI: 10.1016/0956-7151(95)90166-3

Google Scholar

[3] D.R. Lesuer, C.K. Syn, A. Goldberg, et al: The Journal of the Minerals Vol. 45 (1993), p.40.

Google Scholar

[4] H. Sunada, J. Wadsworth, J. Lin, et al: Materials Science and Engineering Vol. 38 (1979), p.35.

Google Scholar

[5] E.M. Taleff, C.K. Syn, D.R. Lesuer, et al: Metallurgical and Materials Transactions A Vol. 27 (1996), p.111.

Google Scholar

[6] Z.L. Zhang, Y.N. Liu, J.W., et al: Materials Science and Engineering A Vol. 483-484 (2008), p.64.

Google Scholar

[7] D. Quidort, Y.J.M. Brechet: Acta Materialia Vol. 49 (2001), p.4161.

Google Scholar

[8] M.K. Kang, M.X. Zhang, M. Zhu: Acta Materialia Vol. 54 (2006), p.2121.

Google Scholar

[9] F.G. Caballero, M.J. Santofimia, C. García-Mateo, et al: Materials and Design Vol. 30 (2009), p. (2077).

Google Scholar

[10] Z.L. Zhang, Y.N. Liu, GY, et al: Acta Metallurgica Sinica Vol. 45 (2009), p.280.

Google Scholar

[11] H.K.D. H Bhadeshia: Ironmaking and Steelmaking Vol. 34 (2007), p.194.

Google Scholar

[12] S.Q. Shi, G. Chen, W.T. Fu, et al: Journal of Tianjin University Vol. 40 (2007), p.629.

Google Scholar

[13] S.A. Sajjadi, S.M. Zebarjad: Journal of Materials Processing Technology Vol. 189 (2007), p.107.

Google Scholar
