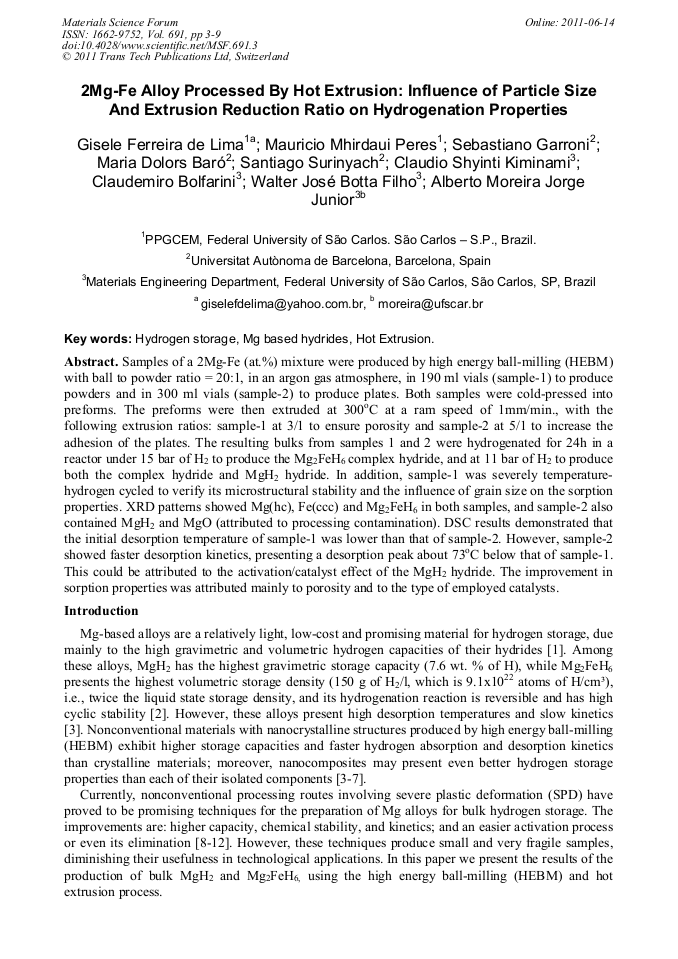

2Mg-Fe Alloy Processed by Hot Extrusion: Influence of Particle Size and Extrusion Reduction Ratio on Hydrogenation Properties

Abstract:

Samples of a 2Mg-Fe (at.%) mixture were produced by high energy ball-milling (HEBM) with ball to powder ratio = 20:1, in an argon gas atmosphere, in 190 ml vials (sample-1) to produce powders and in 300 ml vials (sample-2) to produce plates. Both samples were cold-pressed into preforms. The preforms were then extruded at 300°C at a ram speed of 1mm/min., with the following extrusion ratios: sample-1 at 3/1 to ensure porosity and sample-2 at 5/1 to increase the adhesion of the plates. The resulting bulks from samples 1 and 2 were hydrogenated for 24h in a reactor under 15 bar of H₂ to produce the Mg₂FeH₆ complex hydride, and at 11 bar of H₂ to produce both the complex hydride and MgH₂ hydride. In addition, sample-1 was severely temperature-hydrogen cycled to verify its microstructural stability and the influence of grain size on the sorption properties. XRD patterns showed Mg(hc), Fe(ccc) and Mg₂FeH₆ in both samples, and sample-2 also contained MgH₂ and MgO (attributed to processing contamination). DSC results demonstrated that the initial desorption temperature of sample-1 was lower than that of sample-2. However, sample-2 showed faster desorption kinetics, presenting a desorption peak about 73°C below that of sample-1. This could be attributed to the activation/catalyst effect of the MgH₂ hydride. The improvement in sorption properties was attributed mainly to porosity and to the type of employed catalysts.

• Periodical: Materials Science Forum (Volume 691)
• Pages: 3-9
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.691.3
• Online since: June 2011
• Authors: Gisele Ferreira De Lima, Mauricio Mhirdaui Peres, Sebastiano Garroni, Maria Dolors Barò, Santiago Surinyach, Claudio Shyinti Kiminami, Claudemiro Bolfarini, Walter José Botta Filho, Alberto Moreira Jorge
• Keywords: Hot Extrusion, Hydrogen Storage, Mg Based Hydrides

References

[1] A. Züttel, P. Wenger, P. Sudan, P. Mauron, S. -I. Orimo S-I. Mater. Sci. and Eng. B. Vol. 108 (2004), pp.9-18.

[2] B. Bogdanović, A. Reiser, K. Schlichte, B. Spliethoff, B. Tesche. J. Alloys Compd. Vol. 345 (2002), pp.77-89.

[3] J.J. Didisheim, P. Zolliker, K. Yvon, P. Fischer, J. Schefer, M. Gubelmann, A.F. Williams. Inorg. Chem. Vol. 23 (1984), p.1953-(1957).

DOI: 10.1021/ic00181a032

[4] B. Sakintuna, F. Lamari-Darkrimb, M. Hirscher. Int. J Hydrogen Energy. Vol. 32 (2007), p.1121 –1140.

[5] M. Porcu, A.K. Petford-Long, J.M. Sykes. J. Alloys Compd. Vol. 453 (2008), pp.341-346.

[6] N. Hanada, E. Hirotoshi, T, Ichikawa, E. Akiba, H. Fujii. J. Alloys Compd. Vol. 450 (2008), pp.395-399.

[7] G.F. Lima, A.M. Jorge Jr, D.R. Leiva, C.S. Kiminami, C. Bolfarini, W.J. Botta. J. Phys.: Conf. Series Vol. 144 (2009), p.012015.

DOI: 10.1088/1742-6596/144/1/012015

[8] T.T. Ueda, M. Tsukahara, Y. Kamiya, S. Kikuchi. J. Alloys and Compd. Vol. 386 (2005), pp.253-257.

[9] J. Dufour, J. Huot. J. Alloys and Compd. Vol. 439 (2007), p. L5–L7.

[10] J. Dufour, J. Huot. J. Alloys and Compd. Vol. 446-447 (2007), p.147–151.

[11] N. Takeichi, K. Tanaka, H. Tanaka, T.T. Ueda, Y. Kamiya, M. Tsukahara, H. Miyamura, S. Kikuchi. J. Alloys and Compd. Vo. 446–447 (2007), p.543–548.

DOI: 10.1016/j.jallcom.2007.04.220

[12] Y. Kusadome, K. Ikeda, Y. Nakamori, S. Orimo, Z. Horita. Scripta Materialia. Vol. 57 (2007), pp.751-53.

DOI: 10.1016/j.scriptamat.2007.06.042

[13] L. LUTTEROTTI, R. CECCATO, R. DAL MASCHIO, E. PAGANI. Materials Science Forum. Vol. 87 (1998), pp.278-281.

DOI: 10.4028/www.scientific.net/msf.278-281.87

[14] L. LUTTEROTTI. MAUD - Materials Analysis Using Diffraction. Information and download on http: /www. ing. unitn. it/~maud/. Acessed from 08/09/2008 to 09/06/(2010).
