Investigation of Fabrication and Microstructure of the Fe3Al/Al2O3 Composites by Hot-Pressing Process

Tao Jiang; Hai Yun Jin

doi:10.4028/www.scientific.net/MSF.695.385

Paper Titles

Oxidation Behaviors of Pure Ti Thermal Plasma Spray Coated Mo-Si-B Alloys
p.365

Esterification of Chemical Functional Single-Wall Carbon Nanotubes
p.373

Development of Carbon Nanotube - Reinforced Silk and Cannabis Fibers by an Electrophoretic Deposition Method
p.377

Constitutive Equation Development for Large Strain Rate Deformation Processing of 2205 Duplex Stainless Steels
p.381

Investigation of Fabrication and Microstructure of the Fe₃Al/Al₂O₃ Composites by Hot-Pressing Process
p.385

Effect of Ag Addition on the Microstructure and Mechanical Properties of High Conductivity Cu-1Cr-Mg-P Alloy
p.389

Fabrication and Cytotoxicity Studies of the TiO₂ Doped with Copper-Based Nanocomposite Particles
p.393

Effect of Alloying Elements on the Corrosion Wear Behaviors of Low Chromium Cast Iron
p.397

Using GA–ANN to Optimize Heat Treatment Technological Parameters of Super-Martensitic Stainless Steel
p.401

HomeMaterials Science ForumMaterials Science Forum Vol. 695Investigation of Fabrication and Microstructure of...

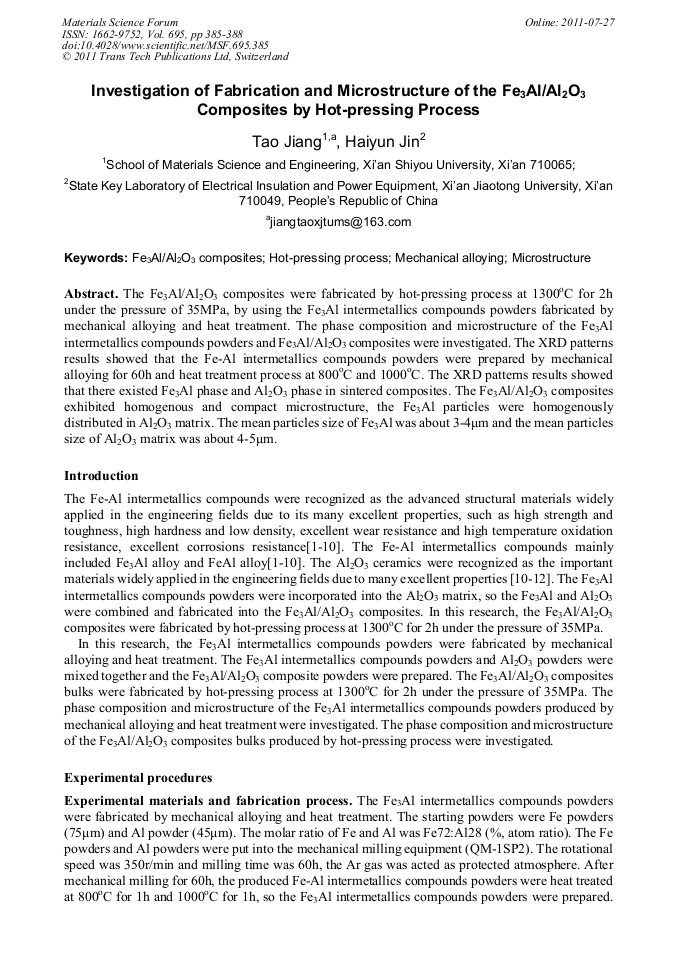

Investigation of Fabrication and Microstructure of the Fe₃Al/Al₂O₃ Composites by Hot-Pressing Process

Abstract:

The Fe₃Al/Al₂O₃ composites were fabricated by hot-pressing process at 1300°C for 2h under the pressure of 35MPa, by using the Fe₃Al intermetallics compounds powders fabricated by mechanical alloying and heat treatment. The phase composition and microstructure of the Fe₃Al intermetallics compounds powders and Fe₃Al/Al₂O₃composites were investigated. The XRD patterns results showed that the Fe-Al intermetallics compounds powders were prepared by mechanical alloying for 60h and heat treatment process at 800°C and 1000°C. The XRD patterns results showed that there existed Fe₃Al phase and Al₂O₃ phase in sintered composites. The Fe₃Al/Al₂O₃ composites exhibited homogenous and compact microstructure, the Fe₃Al particles were homogenously distributed in Al₂O₃ matrix. The mean particles size of Fe₃Al was about 3-4μm and the mean particles size of Al₂O₃ matrix was about 4-5μm.
