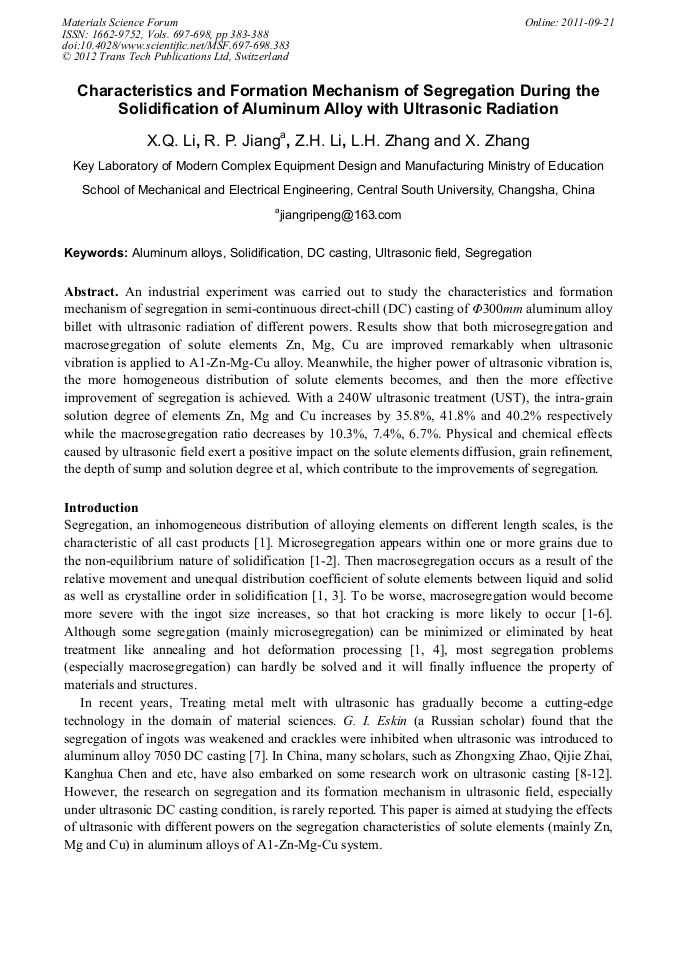

Characteristics and Formation Mechanism of Segregation During the Solidification of Aluminum Alloy with Ultrasonic Radiation

Abstract:

An industrial experiment was carried out to study the characteristics and formation mechanism of segregation in semi-continuous direct-chill (DC) casting of Φ300mm aluminum alloy billet with ultrasonic radiation of different powers. Results show that both microsegregation and macrosegregation of solute elements Zn, Mg, Cu are improved remarkably when ultrasonic vibration is applied to A1-Zn-Mg-Cu alloy. Meanwhile, the higher power of ultrasonic vibration is, the more homogeneous distribution of solute elements becomes, and then the more effective improvement of segregation is achieved. With a 240W ultrasonic treatment (UST), the intra-grain solution degree of elements Zn, Mg and Cu increases by 35.8%, 41.8% and 40.2% respectively while the macrosegregation ratio decreases by 10.3%, 7.4%, 6.7%. Physical and chemical effects caused by ultrasonic field exert a positive impact on the solute elements diffusion, grain refinement, the depth of sump and solution degree et al, which contribute to the improvements of segregation.

• Periodical: Materials Science Forum (Volumes 697-698)
• Pages: 383-388
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.697-698.383
• Online since: September 2011
• Authors: X.Q. Li, Ri Peng Jiang, Z.H. Li, L.H. Zhang, X. Zhang
• Keywords: Aluminium Alloy, DC Casting, Segregation, Solidification, Ultrasonic Field

References

[1] R. Nadella, D. G. Eskin, Q. Du, and L. Katgerman: Prog. Mater Sci. vol. 53 (2008), p.421.

[2] Q. Du, D.G. Eskin, A. Jacot, and L. Katgerman: Acta Mater. vol. 55 (2007), p.1523.

[3] D.G. Eskin, Q. Dua, and L. Katgerman: Scripta Mater. vol. 55 (2006), p.715.

[4] Y.H. Zhou, Z.L. Hu, and W.Q. Jie: Solidfication technology (Mechanical Industry Press, Beijing, 1998) (in Chinese).

[5] Z.H. Li, X.Q. Li, M. Zhang, and X.H. Xu: T Nonferr Metal Soc. vol. 21 (2011), p.318.

[6] M.C. Flemings: Our understanding of macrosegregation: past and present (ISIJ International, USA 2000).

DOI: 10.2355/isijinternational.40.833

[7] G.I. Eskin, and G.S. Makarov: Mater. Sci. Forum vol. 242 (1997), p.65.

[8] L.H. Zhang, J. Yu, and X.M. Zhang: J. Cent South Univ T. vol. 17 (2010), p.431.

[9] X. Jian, H. Xu, T.T. Meek, and Q. Han: Mater Lett. vol. 59 (2005), p.190.

[10] H.W. Hu, K.H. Chen, and L.P. Huang et al: Heat treatment vol. 30 (2005), p.43 (in Chinese).

[11] X.T. Li, X.P. Gao, and T.J. Li et al: Rare Mater & Eng. vol. 36 (2007), p.377 (in Chinese).

[12] J.H. Fan, and Q.J. Zhai: T Nonferr Metal Soc. vol. 12 (2002), p.11 (in Chinese).

[13] Y. Wu: Effect of ultrasonic vibration on kinetic undercooling of aluminum alloy melt during solidification (Master's degree dissertation Central South University 2009) (in Chinese).

[14] O.V. Abranmov: Ultrasonic vol. 25 (1987), p.73.

[15] G.I. Eskin: Ultrasonic Treatment of Light Alloy Melts (Gordon & Breach, Amsterdam 1998).

[16] J. Piling, and A. Hellawell: Metal Mater Trans, vol. 27 (1996), p.229.

[17] V. Abranmov, O. Abranmov, V. Bulgakov, and F. Sommer: Mater Lett. vol. 37 (1998), p.27.

[18] K.Y. Li: Study of casting experiment with ultrasonic introduced directly and analysis of its kinetic mechanism (Master's degree dissertation Central South University 2009) (in Chinese).

[19] Q. Du, D.G. Eskin, and L. Katgerman: Metall Mater Trans A. vol. 38 (2007), p.180.
