For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Study on Sensitization Susceptibility and Texture of Cold Rolled AISI 304LN Stainless Steel
p.677
Non-Uniform Strain Hardening of Crystallites within Different Regions of Texture Maxima: Evidences and Mechanisms
p.681
IGSCC of Non-Sensitised Austenitic Stainless Steels in BWR Environment – Effect of Deformation Mode on Grain Boundary Susceptibility
p.685
Electrochemical Characterization of Low Temperature Thermal Aging Embrittlement of Stainless Steel 304L Weld
p.689
End Grain Corrosion: Establishing Microstructural Causes and Preventive Steps
p.693
Statistical Analysis of Grain Boundaries in the Space of Macroscopic Boundary Parameters
p.697
Importance of Microscale Texture and Grain Boundary Connectivity to Percolation-Dependent Bulk Properties in Polycrystalline Materials
p.703
Evolution of Grain Boundary Texture in Zirconium Alloys
p.710
Origin and Role of Σ3 Boundaries during Thermo-Mechanical Processing of a Ti-Modified Austenitic Stainless Steel
p.714

End Grain Corrosion: Establishing Microstructural Causes and Preventive Steps

Article Preview

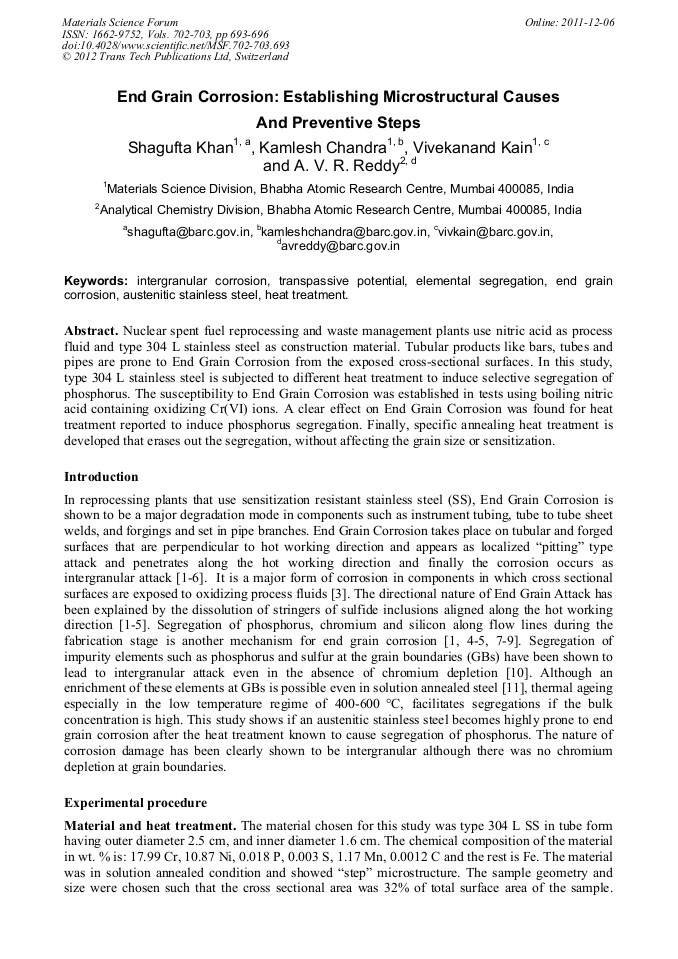

Abstract:

Nuclear spent fuel reprocessing and waste management plants use nitric acid as process fluid and type 304 L stainless steel as construction material. Tubular products like bars, tubes and pipes are prone to End Grain Corrosion from the exposed cross-sectional surfaces. In this study, type 304 L stainless steel is subjected to different heat treatment to induce selective segregation of phosphorus. The susceptibility to End Grain Corrosion was established in tests using boiling nitric acid containing oxidizing Cr(VI) ions. A clear effect on End Grain Corrosion was found for heat treatment reported to induce phosphorus segregation. Finally, specific annealing heat treatment is developed that erases out the segregation, without affecting the grain size or sensitization.

You might also be interested in these eBooks
Textures of Materials - ICOTOM 16 View Preview

Info:

Periodical:

Materials Science Forum (Volumes 702-703)

Pages:

693-696

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.702-703.693

Citation:

Cite this paper

Online since:

December 2011

Authors:

Shagufta Khan, Kamlesh Chandra, Vivekanand Kain, A.V.R. Reddy

Keywords:

Austenitic Stainless Steel, Elemental Segregation, End Grain Corrosion, Heat Treatment, Intergranular Corrosion (IGC), Transpassive Potential

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] V. Kain, S. S. Shinde and H. S. Gadiyar, Mechanism of improved corrosion resistance of type 304 L stainless steel, nitric acid grade, in nitric acid environments, J. Mater. Eng. Perf., 3 (1994) 699-705.

DOI: 10.1007/bf02818368

Google Scholar

[2] R. D. Shaw, Corrosion prevention and control at sellafield nuclear fuel reprocessing plant, Br. Corros. J. 25 (1990) 97-107.

DOI: 10.1179/bcj.1990.25.2.97

Google Scholar

[3] V. Kain, P. Sengupta, P. K. Deand and S. Banerjee, Case reviews on the effects of microstructures on the corrosion behavior of austenitic alloys for processing storage of nuclear waste, Metall. Mat. Trans. A, 36 A (2005) 1075-1084.

DOI: 10.1007/s11661-005-0201-5

Google Scholar

[4] G. O. H. Whillock, B. F. Dunnet and M. Takeuchi, Techniques for measuring end grain corrosion resistance of austenitic stainless steels, Corrosion, 61( 2005) 58-67.

DOI: 10.5006/1.3278161

Google Scholar

[5] V. Kain, S.S. Chouthai, and H.S. Gadiyar, Performance of AISI 304L stainless steel with exposed end grain in intergranular corrosion tests, Brit. Corr. J., 27 (1992) 59-65.

DOI: 10.1179/000705992798268819

Google Scholar

[6] V. Kain and P. K. De, Controlling corrosion in the back end of fuel cycle using nitric acid grade stainless steel, Inter. J. Nuclear energy Sci. Technol., 1 (2005) 222-231.

DOI: 10.1504/ijnest.2005.007146

Google Scholar

[7] J.Y. Jeng et al, Laser surface treatments to improve the intergranular corrosion resistance of 18/13/Nb and 304 in nitric acid, Corr. Sci., 35 (1993) 1289-1296.

DOI: 10.1016/0010-938x(93)90350-p

Google Scholar

[8] J. Stewart and D. E. Williams, The initiation of pitting corrosion on austenitic stainless steel: on the role and importance of sulfide inclusion, Corr. Sci., 33 (1993) 457-474.

DOI: 10.1016/0010-938x(92)90074-d

Google Scholar

[9] Q.Y. Pan et al, The improvement of localized corrosion resistance in sensitized stainless steel by laser surface remelting, Surf. Coat. Tech., 102 (1998) 245-255.

DOI: 10.1016/s0257-8972(98)00358-2

Google Scholar

[10] J. S. Armijo, Intergranular corrosion of nonsensitized austenitic stainless steels, Corrosion, 24 (1968) 24-30.

DOI: 10.5006/0010-9312-24.1.24

Google Scholar

[11] J. S. Armijo, Impurity adsorption and intergranular corrosion of austenitic stainless steel in boiling HNO3- K2Cr2O7 solution, Corros. Sci. 7 (1967) 143-150.

DOI: 10.1016/s0010-938x(67)80074-x

Google Scholar

[12] ASTM designation A-262, Practice B in annual book of ASTM standards, ASTM Philadelphia, PA, (2005).

Google Scholar

[13] Shagufta, Unpublished results from the doctoral thesis, Homi Bhabha National Institute, (2009).

Google Scholar

[14] C. L. Briant and E. L. Hall, Heat to heat variability in the corrosion resistance and microstructure of low carbon AISI 316 nuclear grade stainless steel, 43 (1987) 525-533.

DOI: 10.5006/1.3583896

Google Scholar

[15] Watanabe et al, Effect of neutron irradiation on transpassive corrosion behavior of austenitic stainless steel, Corrosion, 51 (1995) 651-659.

DOI: 10.5006/1.3293626

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
