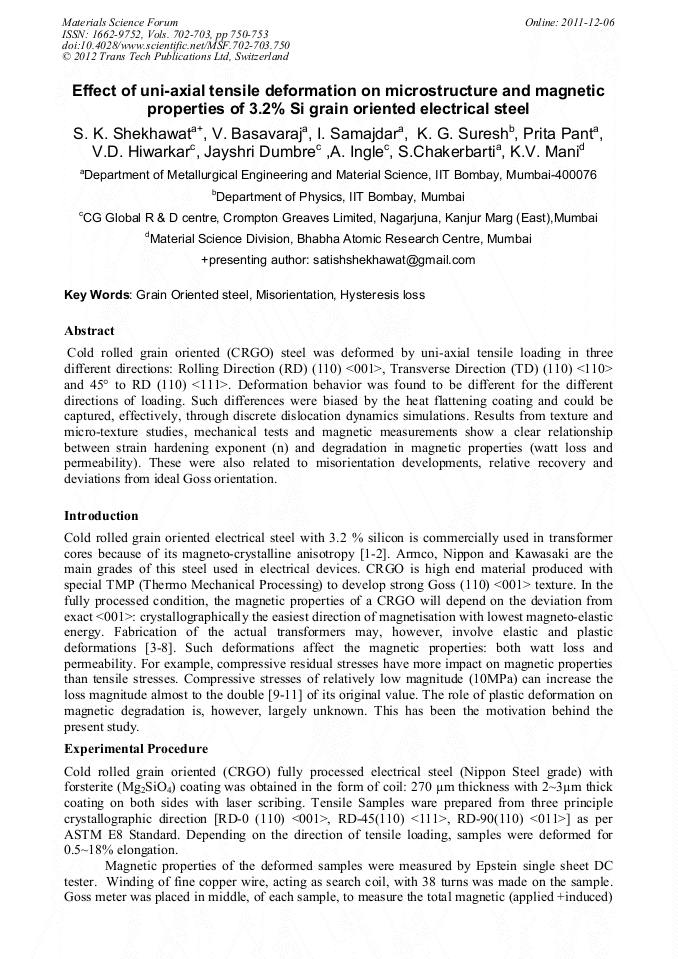

Effect of Uni-Axial Tensile Deformation on Microstructure and Magnetic Properties of 3.2% Si Grain Oriented Electrical Steel

Abstract:

Cold rolled grain oriented (CRGO) steel was deformed by uni-axial tensile loading in three different directions: Rolling Direction (RD) (110) , Transverse Direction (TD) (110) and 45° to RD (110) . Deformation behavior was found to be different for the different directions of loading. Such differences were biased by the heat flattening coating and could be captured, effectively, through discrete dislocation dynamics simulations. Results from texture and micro-texture studies, mechanical tests and magnetic measurements show a clear relationship between strain hardening exponent (n) and degradation in magnetic properties (watt loss and permeability). These were also related to misorientation developments, relative recovery and deviations from ideal Goss orientation.

• Periodical: Materials Science Forum (Volumes 702-703)
• Pages: 750-753
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.702-703.750
• Online since: December 2011
• Authors: Satish Kumar Shekhawat, V. Basavaraj, Indradev Samajdar, K.G. Suresh, Prita Pant, V.D. Hiwarkar, Jayshri Dumbre, A. Ingle, S. Chakerbarti, K.V. Mani
• Keywords: Grain-Oriented Steel, Hysteresis Loss, Misorientation

References

[1] R. PremKumar, I. Samajdar, N.N. Viswanathana, V. Singal, V. Seshadri, Relative effect(s) of texture and grain size on magnetic properties in a low silicon non-grain oriented electrical steel, Journal of Magnetism and Magnetic Materials 264 (2003) 75–85

DOI: 10.1016/s0304-8853(03)00142-2

[2] Chikara Kaido, Spiral core made of grain-oriented electrical steel sheet, Electrical engineering in Japan, Vol. 118, No. 3,(1997)

DOI: 10.1002/(sici)1520-6416(199702)118:3<58::aid-eej6>3.0.co;2-o

[3] Yu. N. Dragoshanskii, G. S. Korzunin, M. B. Mel'nikov, A. I. Pyatygin, and V. K. Chistyakov, Effect of Tensile Stresses on the Magnetic Characteristics of Modern Anisotropic Electrical-Sheet Steel, The Physics of Metals and Metallography, 2006, Vol. 101, No. 4, p.329–33

DOI: 10.1134/s0031918x06040041

[4] A.J. Moses, N. Derebasi, G. Loisos, A. Schoppa, Aspects of the cut-edge effect stress on the power loss and flux density distribution in electrical steel sheets, JMMM, 215-216 (2000) 690-692

DOI: 10.1016/s0304-8853(00)00260-2

[5] Alexander Pulnikov, Philippe Baudouin, Jan Melkebeek Induced, Stresses due to the mechanical cutting of non-oriented electrical steels, Journal of Magnetism and Magnetic Materials 254–255 (2003) 355–357

DOI: 10.1016/s0304-8853(02)00853-3

[6] H. Yamaguchi, H. Pfu tzner, E. Mulasalihovic, 3D-measurements of magnetic flux on joint regions of Si-Fe steel model core, Journal of Magnetism and Magnetic Materials 320 (2008) e935–e938

DOI: 10.1016/j.jmmm.2008.04.137

[7] M. Emura, M.F. de Campos, F.J.G. Landgraf, J.C. Teixeira, Angular dependence of magnetic properties of 2% silicon electrical steel, Journal of Magnetism and Magnetic Materials 226-230 (2001)1524 -1526

DOI: 10.1016/s0304-8853(00)00946-x

[8] Nicolau A. Castro, Marcos F. de Campos, Fernando J.G. Landgraf, Effect of deformation and annealing on the microstructure and magnetic properties of grain-oriented electrical steels, Journal of Magnetism and Magnetic Materials 304 (2006) e617–e619

DOI: 10.1016/j.jmmm.2006.02.268

[9] Ken-ichi Yamamoto and Yasumasa Yamashiro, Effect of compressive stress on hysteresis loss and magnetostriction of grain oriented Si–Fe sheets, journal of applied physics, volume 93, number 10, (2003)

DOI: 10.1063/1.1556103

[10] G. S. Korzunin, R. B. Puzhevich, and M. B. Tsyrlin, Effect of Mechanical Stresses on the Magnetic Properties of Anisotropic Electrical Steel, The Physics of Metals and Metallography, 2007, Vol. 103, No. 2, p.142–151

DOI: 10.1134/s0031918x07020044

[11] Akihiko Saito, Masaaki Hashimoto, Eiji Kawaguchi, Shinichi Murashige, Stress- magnetization properties of a silicon iron single crystal under stress, Journal of Magnetism and Magnetic Materials 160 (1996) 57-58

DOI: 10.1016/0304-8853(96)00110-2

[12] I. Groma,X-ray line broadening due to an inhomogeneous dislocation distribution, Physical Review B, Volume 57, Number 13

DOI: 10.1103/physrevb.57.7535
