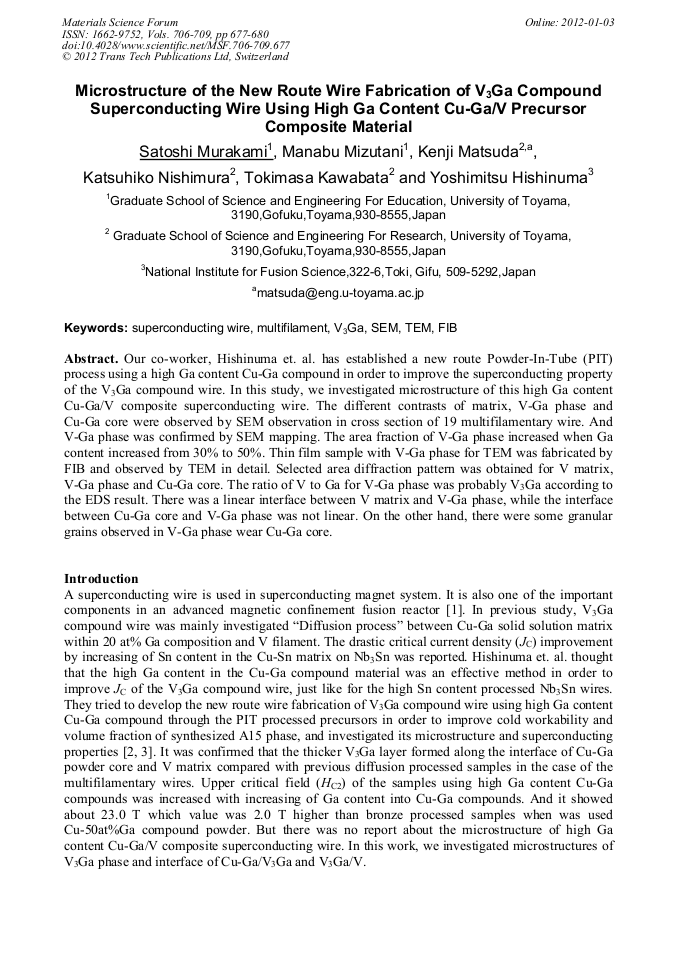

Microstructure of the New Route Wire Fabrication of V3Ga Compound Superconducting Wire Using High Ga Content Cu-Ga/V Precursor Composite Material

Satoshi Murakami; Manabu Mizutani; Kenji Matsuda; Katsuhiko Nishimura; Tokimasa Kawabata; Yoshimitsu Hishinuma

doi:10.4028/www.scientific.net/MSF.706-709.677

Paper Titles

Investigating the Potential of TiB₂-Based Composites with Ti and Fe Additives as Wettable Cathode
p.655

Fabrication of Metal-Based Functionally Graded Grinding Wheel by a Centrifugal Mixed-Powder Method
p.661

Microstructure and Superconductive Property of MgB₂/Al Composite Materials
p.667

Degradation Mechanism of Polycrystalline Silicon Carbide Fiber due to Air-Exposure at High Temperatures
p.671

Microstructure of the New Route Wire Fabrication of V₃Ga Compound Superconducting Wire Using High Ga Content Cu-Ga/V Precursor Composite Material
p.677

Forming Potential of Steel/Polymer/Steel Sandwich Composites with Local Plate Inserts
p.681

Mechanical Properties, Aging Behavior and Microstructure Evolution of Mg-Nd-Zn-Zr Based Magnesium Matrix Composite Reinforced with Alumina Fibers
p.687

Functionally Graded Biocomposites
p.693

Fabrication of Vapor Grown Carbon Fiber Reinforced Aluminum Composites by Spark Sintering
p.699

HomeMaterials Science ForumMaterials Science Forum Vols. 706-709Microstructure of the New Route Wire Fabrication...

Microstructure of the New Route Wire Fabrication of V₃Ga Compound Superconducting Wire Using High Ga Content Cu-Ga/V Precursor Composite Material

Abstract:

Our co-worker, Hishinuma et. al. has established a new route Powder-In-Tube (PIT) process using a high Ga content Cu-Ga compound in order to improve the superconducting property of the V₃Ga compound wire. In this study, we investigated microstructure of this high Ga content Cu-Ga/V composite superconducting wire. The different contrasts of matrix, V-Ga phase and Cu-Ga core were observed by SEM observation in cross section of 19 multifilamentary wire. And V-Ga phase was confirmed by SEM mapping. The area fraction of V-Ga phase increased when Ga content increased from 30% to 50%. Thin film sample with V-Ga phase for TEM was fabricated by FIB and observed by TEM in detail. Selected area diffraction pattern was obtained for V matrix, V-Ga phase and Cu-Ga core. The ratio of V to Ga for V-Ga phase was probably V₃Ga according to the EDS result. There was a linear interface between V matrix and V-Ga phase, while the interface between Cu-Ga core and V-Ga phase was not linear. On the other hand, there were some granular grains observed in V-Ga phase wear Cu-Ga core.
