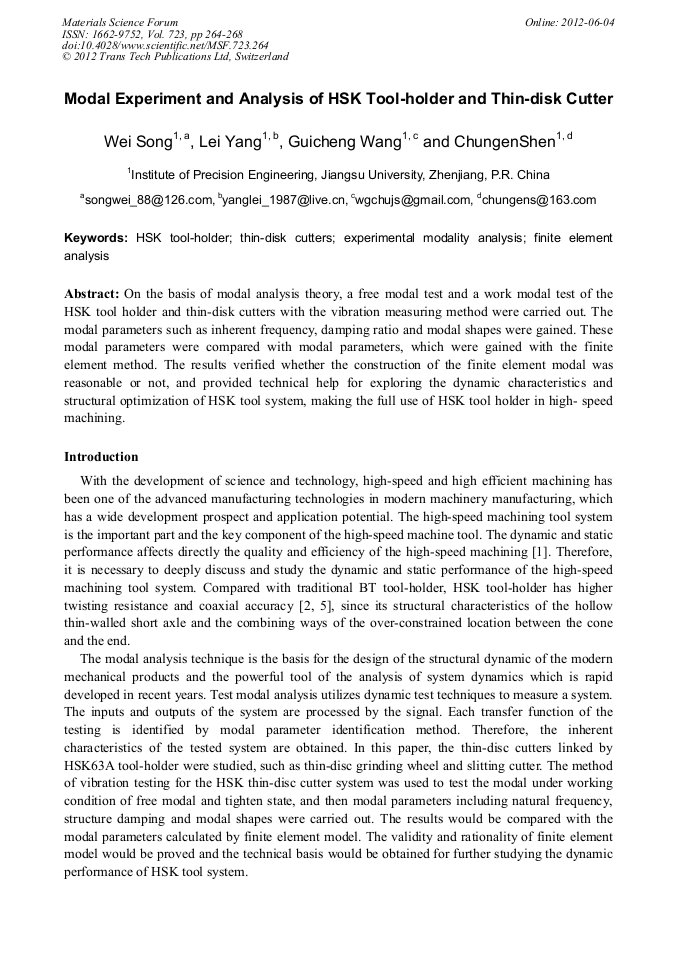

Modal Experiment and Analysis of HSK Tool-Holder and Thin-Disk Cutter

Abstract:

On the basis of modal analysis theory, a free modal test and a work modal test of the HSK tool holder and thin-disk cutters with the vibration measuring method were carried out. The modal parameters such as inherent frequency, damping ratio and modal shapes were gained. These modal parameters were compared with modal parameters, which were gained with the finite element method. The results verified whether the construction of the finite element modal was reasonable or not, and provided technical help for exploring the dynamic characteristics and structural optimization of HSK tool system, making the full use of HSK tool holder in high- speed machining.

• Periodical: Materials Science Forum (Volume 723)
• Pages: 264-268
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.723.264
• Online since: June 2012
• Authors: Wei Song, Lei Yang, Gui Cheng Wang, Chun Gen Shen
• Keywords: Experimental Modality Analysis, Finite Element Analysis (FEA), HSK Tool-Holder, Thin-Disk Cutters

References

[1] G.C. Wang, S.L. Wang, G.Q. Dong: Tooling System for High Speed Machining (National Defense Industry Publishing, Beijing 2005).

[2] C.G. Shen, G.C. Wang, S.L. Wang: Mach. Des. Res. (2008)

[3] J. Meng, X.A. Chen, F. Chen: Mech. Des. (2009)

[4] Z.F.F: Vibration Modal Analysis and Parameter Identification (China Machine Press, Beijing in1990).

[5] G.C. Wang, S.L. Wang: China Mech. Eng. (2006)
