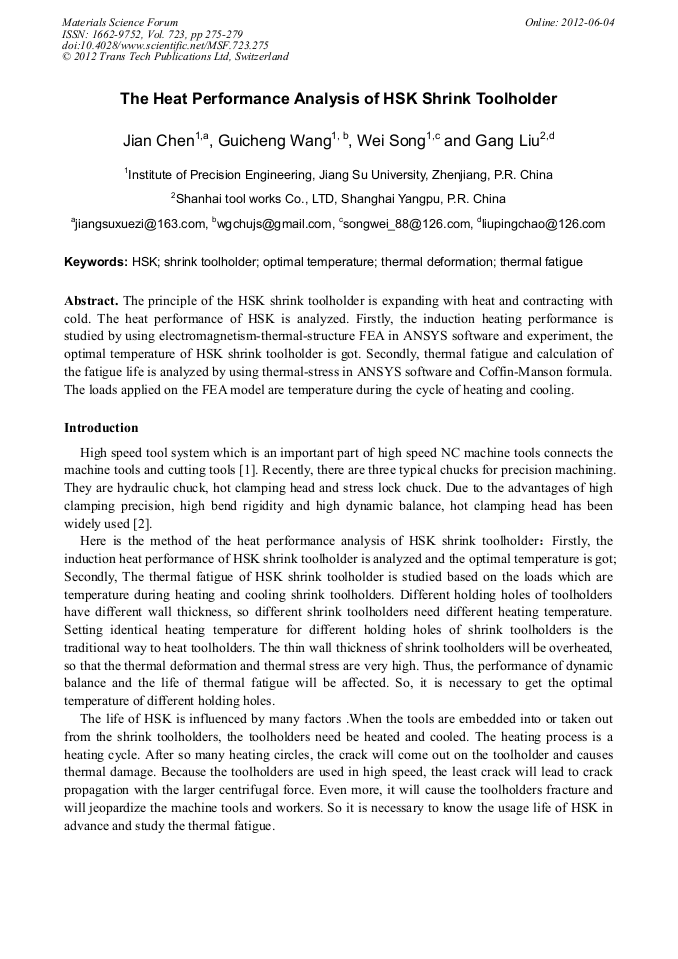

The Heat Performance Analysis of HSK Shrink Toolholder

Abstract:

The principle of the HSK shrink toolholder is expanding with heat and contracting with cold. The heat performance of HSK is analyzed. Firstly, the induction heating performance is studied by using electromagnetism-thermal-structure FEA in ANSYS software and experiment, the optimal temperature of HSK shrink toolholder is got. Secondly, thermal fatigue and calculation of the fatigue life is analyzed by using thermal-stress in ANSYS software and Coffin-Manson formula. The loads applied on the FEA model are temperature during the cycle of heating and cooling.

• Periodical: Materials Science Forum (Volume 723)
• Pages: 275-279
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.723.275
• Online since: June 2012
• Authors: Jian Chen, Gui Cheng Wang, Wei Song, Gang Liu
• Keywords: HSK, Optimal Temperature, Shrink Toolholder, Thermal Deformation, Thermal Fatigue

References

[1] I.H. Schulz: Manufacturing and Control (2002).

[2] G.C. Wang, S.L. Wang, G.Q.D in: Tool System for High Speed Machining (National Defense Industry Publishing, Beijing2008).

[3] L.H. Zhu, Z.L. Qian: J. Tool Eng. (2005)

[4] S.S. Dang, H.S. Zhang in: ANSYS 12.0 Multi Physical Field FEA from Entry to Master (Mechanical Engineering Publishing, Beijing 2002).

[5] C.S.Li, D.B. Huan in: Mechanical Engineering Material Manual (Electronic Industry Publishing, Beijing 2007).

[6] H.F.Ni, X.L, S.D.T: J. Mech. Strength (2004).

[7] X.E. Ping, Y.W. Guo in: Thermal Stress and Thermal Fatigue (National Defense Industry Publishing, Beijing 1984).

[8] D.F, G.Y.L, Y.M.Z: J Iron Steel Res. (2010).
