Method of Precise Tool Setting for Micro Turning

Abstract:

Based on microscope and image processing, a method of auto tool setting for micro turning was innovated. Firstly, real-time images of tool setting were obtained by high pixel CCD camera, then specific image processing method and algorithm were applied to these images and the deviation between the tool point and target position was calculated. Based on the gap value, tool feeding increment value was adjusted and image processing operations were executed. These steps were repeated until the gap was zero, which means that tool setting was finished. Moreover, a reliability analysis was performed. Result indicated that the precision of tool setting is satisfactory.

You might also be interested in these eBooks

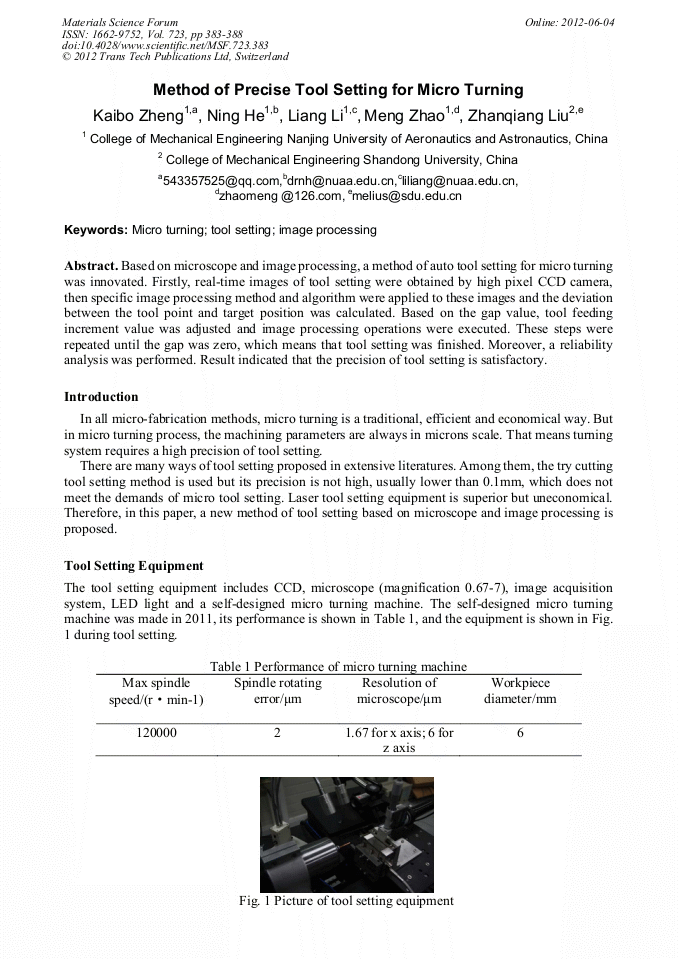

View Preview

Info:

Periodical:

Materials Science Forum (Volume 723)

Pages:

383-388

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.723.383

Citation:

Cite this paper

Online since:

June 2012

Authors:

Kai Bo Zheng, Ning He, Liang Li, Meng Zhao, Zhan Qiang Liu

Keywords:

Image Processing, Micro-Turning, Tool Setting

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. Zhao, N. He, L. Li, X, B. Huang: J. Trans. Tianjin Univ. 17(4) (2011), pp.284-287

Google Scholar

[2] Z. Y. Cao, N. He, L. Li: J. Micro-fabric. Technol. 11(3) (2006), pp.1-5

Google Scholar

[3] J. Chae, S. S. Park, T. Freiheit: J. Mach. Tool. Manuf. 46(3) (2006), pp.313-332

Google Scholar

[4] L. Huang, N. He, L. Li: Adv. Mater. Res. Vol. 69-70 (2009), 8th, pp.369-373

Google Scholar

[5] Y. Zh. Sun, Q. X. Meng, H. L. Liu: Proceedings of the SPIE - The International Society for Optical Engineering, Vol. 7282, p 72820V (6 pp.) (2009)

Google Scholar

[6] J. E. Feng, M. Kang, X. Q. Fu, Y. Yang: Mod. Manuf. Eng. April (2010)

Google Scholar

[7] Y. Zhao, Y. Ch. Liang, Q. Sh. Bai, B. Wang, Y. Zh. Sun, M. J. Chen: Opt. Precis. Eng. Vol. 15 (2007), pp.894-902

Google Scholar
