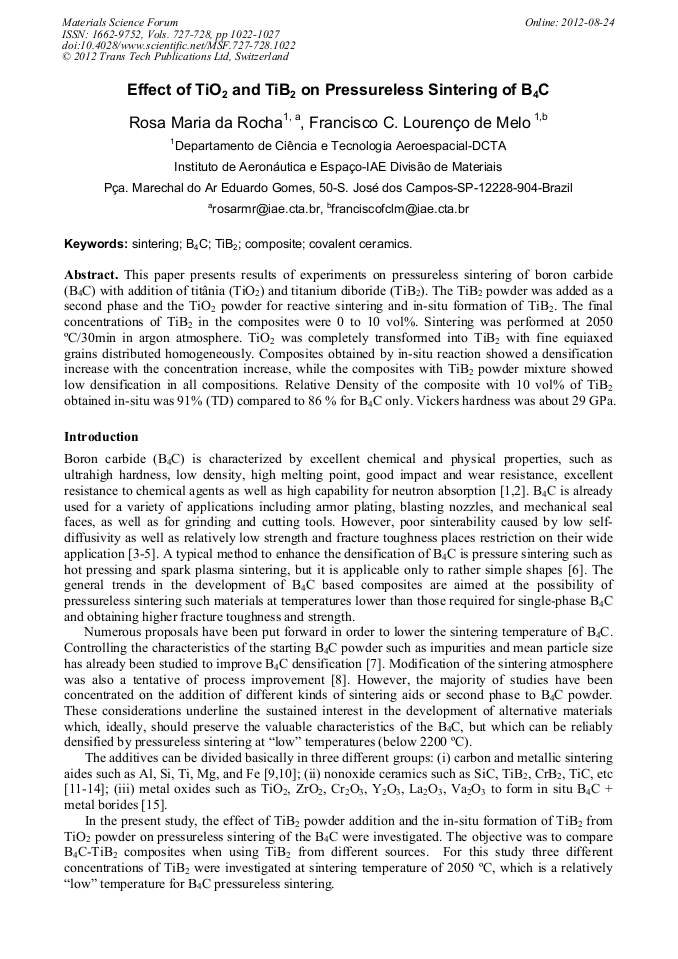

Effect of TiO₂ and TiB₂ on Pressureless Sintering of B₄C

Abstract:

This paper presents results of experiments on pressureless sintering of boron carbide (B₄C) with addition of titânia (TiO₂) and titanium diboride (TiB₂). The TiB₂ powder was added as a second phase and the TiO₂ powder for reactive sintering and in-situ formation of TiB₂. The final concentrations of TiB₂ in the composites were 0 to 10 vol%. Sintering was performed at 2050 °C/30min in argon atmosphere. TiO₂ was completely transformed into TiB₂ with fine equiaxed grains distributed homogeneously. Composites obtained by in-situ reaction showed a densification increase with the concentration increase, while the composites with TiB₂ powder mixture showed low densification in all compositions. Relative Density of the composite with 10 vol% of TiB₂ obtained in-situ was 91% (TD) compared to 86 % for B₄C only. Vickers hardness was about 29 GPa.

• Periodical: Materials Science Forum (Volumes 727-728)
• Pages: 1022-1027
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.727-728.1022
• Online since: August 2012
• Authors: Rosa Maria da Rocha, Francisco Cristóvão Lourenço de Melo
• Keywords: B₄C, Composite, Covalent Ceramics, Sintering, TiB₂

References

[1] F. Thevenot: J. Eur. Ceram. Soc. Vol. 6 (1990), p.205.

[2] W. Weimer: Thermochemistry and Kinectics in Carbide, Nitride and Boride Materials Synthesis and Processing. Edited by Weimer A.W., Chapman and Hall, NY (1997).

DOI: 10.1007/978-94-009-0071-4_3

[3] F. Thevenot: Key Eng. Mater. Vols. 56-57 (1991), p.59.

[4] R.F. Speyer and H. Lee: J. Mater. Sci. Vol. 39 (2004), p.6017.

[5] H. Lee and R.F. Speyer: J. Am. Ceram. Soc. Vol. 85(5) (2002), p.1291.

[6] S. Hayun, S. Kalabukhov, V. Ezersky, M.P. Dariel and N. Frage: Ceram. Int. Vol. 36 (2010) p.451.

DOI: 10.1016/j.ceramint.2009.09.004

[7] S. Yamada, K. Hirao, Y. Yamauchi and S. Kanzaki: J. Eur. Ceram. Soc. Vol. 23 (2003), p.1123.

[8] H. Miyazaki, Y. Zhou, H. Hyuga, Y. Yoshizawa and T. Kumazawa: J. Eur. Ceram. Soc. Vol. 30 (2010), p.999.

[9] S.L. Dole, S. Prochazka and R. H. Doremus: J. Am. Ceram. Soc. Vol. 72(6) 91989), p.958.

[10] M. Mashhadi, E. Taheri-Nassaj, V. M. Sglavo, H. Sarpoolaky and N. Ehsani: Ceram. Int. Vol. 35 (2009), P. 831.

DOI: 10.1016/j.ceramint.2008.03.003

[11] R.M. Rocha and F.C.L. Melo: Mat. Sci. Forum. Vols. 591-593 (2008), p.493.

[12] S.L. Sigl: J. Eur. Ceram. Soc. Vol. 18 (1998), p.1521.

[13] S. Yamada, K. Hirao and Y. Yamauchi: J. Mater. Sci. Lett. Vol. 21 (2002), p.1445.

[14] T.K. Roy and C. Subramanian: Ceram. Int. Vol. 32 (2006), p.227.

[15] A. Goldestein, Y. Yeshurum and A. Goldenberg: J. Eur. Ceram. Soc. Vol. 27 (2007), p.695.

[16] M. Beauvy and R. J Angers: J. Less-Common Met. Vol. 80 (1981), p.227.

[17] M. Kakazey, M. Vlasova, J. G. Gonzalez-Rodriguez, M. Dominguez-Patino and R. Leder: Mater. Sci. Engine. A Vol. 418 (2006), p.111.

[18] L. Levin, N. Frage and M.P. Dariel: Metall. Mater. Trans. Vol. A30A 12 (1999), p.3201.
