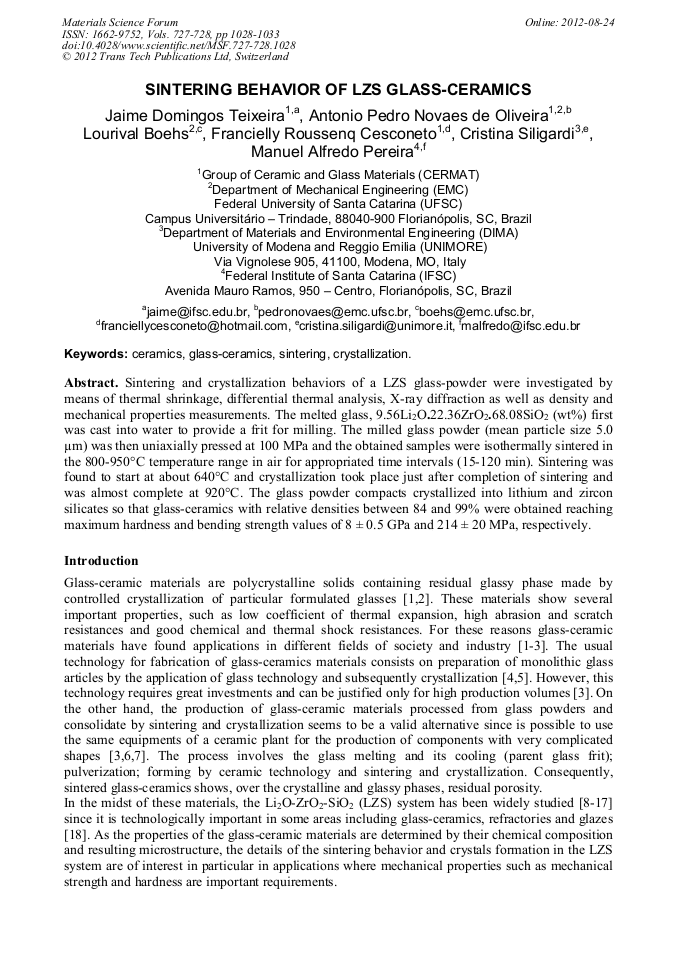

Sintering Behavior of LZS Glass-Ceramics

Abstract:

Sintering and crystallization behaviors of a LZS glass-powder were investigated by means of thermal shrinkage, differential thermal analysis, X-ray diffraction as well as density and mechanical properties measurements. The melted glass, 9.56Li₂O.22.36ZrO₂.68.08SiO₂ (wt%) first was cast into water to provide a frit for milling. The milled glass powder (mean particle size 5.0 µm) was then uniaxially pressed at 100 MPa and the obtained samples were isothermally sintered in the 800-950°C temperature range in air for appropriated time intervals (15-120 min). Sintering was found to start at about 640°C and crystallization took place just after completion of sintering and was almost complete at 920°C. The glass powder compacts crystallized into lithium and zircon silicates so that glass-ceramics with relative densities between 84 and 99% were obtained reaching maximum hardness and bending strength values of 8 ± 0.5 GPa and 214 ± 20 MPa, respectively.

• Periodical: Materials Science Forum (Volumes 727-728)
• Pages: 1028-1033
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.727-728.1028
• Online since: August 2012
• Authors: Jaime Domingos Teixeira, Antonio Pedro Novaes de Oliveira, Lourival Boehs, Francielly Roussenq Cesconeto, Cristina Siligardi, Manuel Alfredo Pereira
• Keywords: Ceramic, Crystallization, Glass-Ceramic, Sintering

References

[1] Z. Strnad: Glass-ceramic materials - Glass science and technology Vol. 8 New York, Elsevier, (1986).

[2] W. Höland and G. Beall, Glass-ceramic technology. American Ceramic Society, Westerville, Ohio, (2002).

[3] E.M. Rabinovich: Journal of Materials Science Vol. 20 (1985), p.4259.

[4] P.W. Mc Millan: Glass Ceramics. 2nd Edn, edited by Academic Press, New York, (1979).

[5] J.H. Simmons et al: Nucleation and Crystallization in Glasses, in: Advances in Ceramics. Edited by American Ceramic Society, Vol. 4 (1982).

[6] D.M. Miller, US Patent 3926648 (1975).

[7] C.I. Helgesson: Science of Ceramics Vol. 8 (1976), p.347.

[8] A.P.N. Oliveira., T. Manfredini, C. Leonelli andG.C. Pellacani: Journal of the American Ceramic Society Vol. 79 (4) (1996), p.1092.

[9] A.P.N. Oliveira., T. Manfredini and C. Leonelli: Thermochimica Acta Vol. 286 (1996), p.375.

[10] A.P.N. Oliveira and C. Leonelli: Physics and Chemistry of Glasses Vol. 39 (4) (1998), p.213.

[11] A.P.N. Oliveira., T. Manfredini, G.C. Pellacani and C. Leonelli: Journal of the American Ceramic Society Vol. 81 (3) (1998), p.777.

[12] A.P.N. Oliveira, C. Lira, R. Marimbondo, L. Pandini and O.E. Alarcon: Cerâmica Informação Vol. 5 (1999), p.78.

[13] A.P.N. Oliveira, O.E. Alarcon, T. Manfredini, G.C. Pellacani and C. Siligardi: Physics and Chemistry of Glasses Vol. 41 (2) (2000), p.100.

[14] A.P.N. Oliveira and T. Manfredini:. Journal of Materials Science Vol. (36) (2001), p.1.

[15] A.P.N. Oliveira, C. Siligardi and T. Manfredini: American Ceramic Society Bulletin Vol. 83 (4) (2004), p.9401.

[16] A.P.N. Oliveira, O.R.K. Montedo, G.M. Reitz, F.M. Bertan, D. Hotza and C. Siligardi: American Ceramic Society Bulletin Vol. 83 (8) (2004), p.9201.

[17] A.P.N. Oliveira and T. Manfredini: Ceramic Society Bulletin Vol. 88 (4) (2009), p.28.

[18] P. Quintana and A.R. West: J. Br. Ceram. Soc. Vol. (80) (1981), p.91.

[19] Y. Shi, X. Huang and D. Yan: Ceramics International Vol. 23 (1997), p.457.
