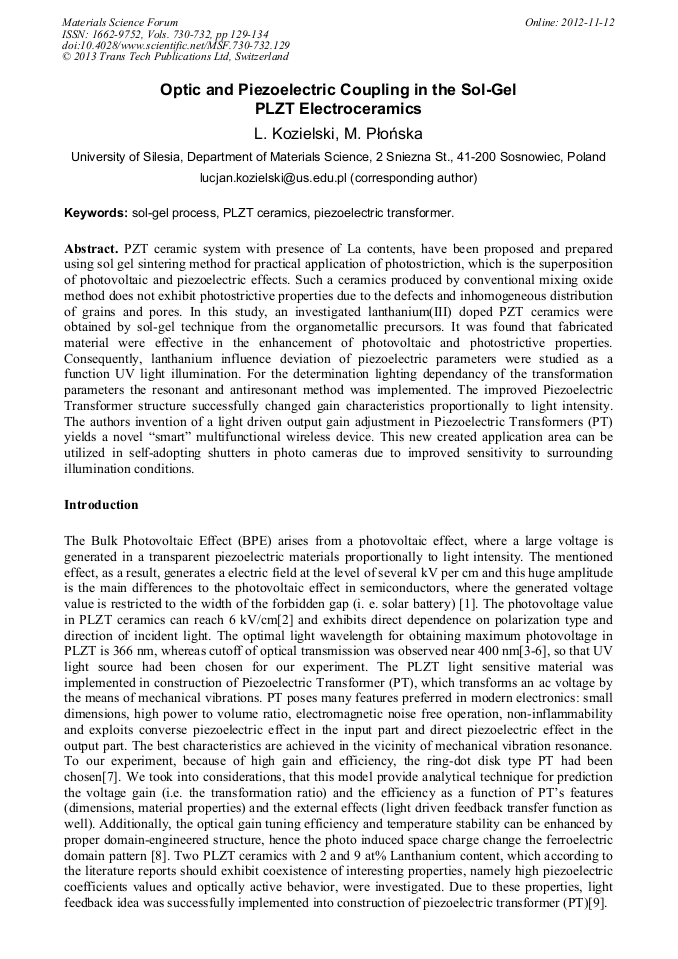

Optic and Piezoelectric Coupling in the Sol-Gel PLZT Electroceramics

Abstract:

PZT ceramic system with presence of La contents, have been proposed and prepared using sol gel sintering method for practical application of photostriction, which is the superposition of photovoltaic and piezoelectric effects. Such a ceramics produced by conventional mixing oxide method does not exhibit photostrictive properties due to the defects and inhomogeneous distribution of grains and pores. In this study, an investigated lanthanium(III) doped PZT ceramics were obtained by sol-gel technique from the organometallic precursors. It was found that fabricated material were effective in the enhancement of photovoltaic and photostrictive properties. Consequently, lanthanium influence deviation of piezoelectric parameters were studied as a function UV light illumination. For the determination lighting dependancy of the transformation parameters the resonant and antiresonant method was implemented. The improved Piezoelectric Transformer structure successfully changed gain characteristics proportionally to light intensity. The authors invention of a light driven output gain adjustment in Piezoelectric Transformers (PT) yields a novel “smart” multifunctional wireless device. This new created application area can be utilized in self-adopting shutters in photo cameras due to improved sensitivity to surrounding illumination conditions.

• Periodical: Materials Science Forum (Volumes 730-732)
• Pages: 129-134
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.730-732.129
• Online since: November 2012
• Authors: Lucjan Kozielski, Malgorzata Plonska
• Keywords: Piezoelectric Transformer, PLFZT Ceramics, Sol-Gel Process

References

[1] B.I. Stuman, V.M. Fridkin, The Photovoltaic and Photorefractive Effects in Noncentrosymmetric Materials, Gordon and Breach Science Publishers, UK , 1992.

[2] K. Takagi, S. Kikuchi, J-F. Li, H. Okamura, R. Watanabe, A. Kawasaki, Ferroelectric and photostrictive properties of fine-grained PLZT ceramics derived from mechanical alloying, J. Am. Ceram. Soc. 87 (2004) pp.1477-1482.

DOI: 10.1111/j.1551-2916.2004.01477.x

[3] S-Y. Chu, Z. Ye, K. Uchino, Photovoltaic effect for the linearly polarized light in (Pb,La)(Zr,Ti)O3 ceramics, Smart Mater. Struct. 3 (1994) pp.114-117.

DOI: 10.1088/0964-1726/3/2/005

[4] P. Poosanaas, A. Dogan, S. Thakoor, K. Uchino, Influence of sample thickness on the performance of photostrictive ceramics, Japn. J. Appl. Phys. 84 (1998) pp.1508-1513.

DOI: 10.1063/1.368216

[5] P. Poosanaas, K. Tonooka, K. Uchino, Photostrictive actuators, Mechatronics 10 (2000) pp.467-487.

DOI: 10.1016/s0957-4158(99)00073-2

[6] K. Uchino, P. Poosanaas, K. Tonooka, Photostrictive actuators, Ferroelectrics 264 (2001) 303-308.

DOI: 10.1080/00150190108008586

[7] D.A Berlincourt, Piezoelectric transformer, US Patent 3764848. (1973).

[8] J. Erhart, S. Wada, Theoretical calculation of the resonant frequency temperature dependence for domain-engineered piezoelectric resonators, Mat. Sci. Eng. B 120 (2005) 175–180.

DOI: 10.1016/j.mseb.2005.02.012

[9] L. Kozielski, Light Controlled Piezoelectric Transformer, Japn. J. Appl. Phys. 50 (2011) pp.048004-2.

DOI: 10.7567/jjap.50.048004

[10] S.I. Tiutiunnikov, A. Sternberg, V.V. Sikolenko, A.I. Burkhanov, A.V. Shilnikov, N.N. Novikova, B.N. Mavrin, S.S. Khasanov, V.V. Efimov, Structure and lattice dynamics in PLZT 8/65/35 ceramics irradiated by high-current pulsed electron beam, Ferroelectrics 302 (2004) pp.327-333.

DOI: 10.1080/00150190490456321

[11] B.D. Stojanovic, M.A. Zaghete, C.R. Foschini, A.A. Cavalheiro, C.O. Paiva-Santos, M. Cilense, E. Longo, J.A. Varela: Synthesis and characterization of 9.5/65/35 PLZT prepared from the polymeric precursors, Materials Chemistry and Physics 67 (2001) p.282–287.

DOI: 10.1016/s0254-0584(00)00451-x
