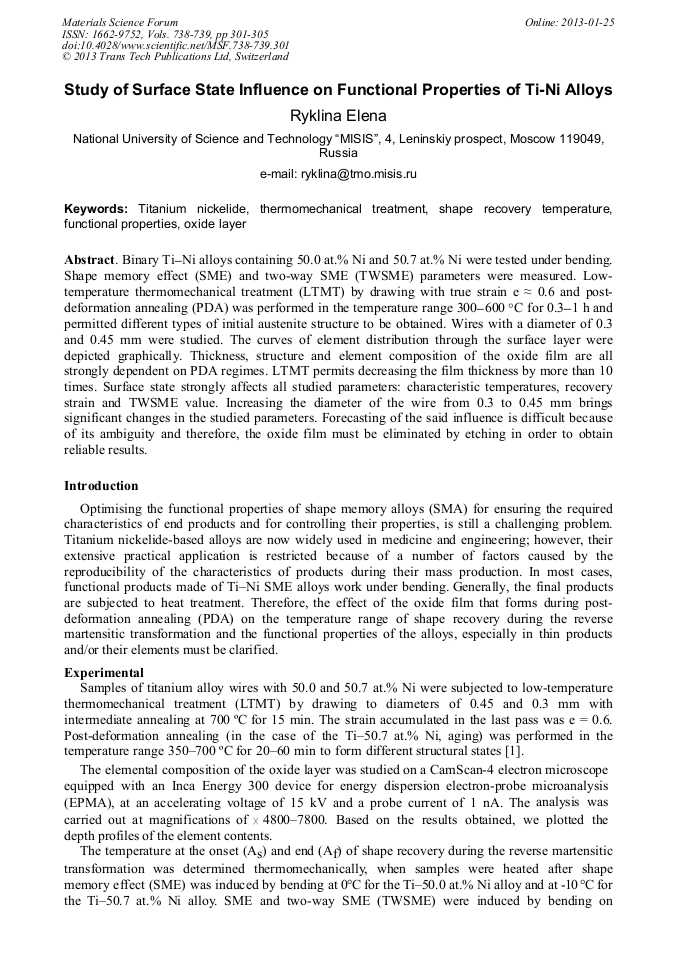

Study of Surface State Influence on Functional Poperties of Ti-Ni Alloys

Abstract:

Binary TiNi alloys containing 50.0 at.% Ni and 50.7 at.% Ni were tested under bending. Shape memory effect (SME) and two-way SME (TWSME) parameters were measured. Low-temperature thermomechanical treatment (LTMT) by drawing with true strain e ≈ 0.6 and post-deformation annealing (PDA) was performed in the temperature range 300600С for 0.3  1 hr permitted obtaining different types of initial austenite structure. The wires with 0.3 and 0.45 mm in diameter were studied. The curves of element distribution through the surface layer were graphed. The SME training procedure was carried out in bending with the constrained strain 0.7 and 8 %. Thickness, structure and element composition of the oxide film strongly depend on PDA regimes. In all cases titanium quantity in the boundary layer correlates with the oxygen quantity, diffused from the surface. Evidently, it is caused by their chemical reaction and oxide formation. Nickel atoms remain in uncombined state, and their migration is directed from the surface deep into the sample. LTMT permits decreasing the film thickness more than by 10 times. Surface state strongly affects all studied parameters: characteristic temperatures, recovery strain and TWSME value. Increasing of wire diameter from 0.3 to 0.45 mm leads to significant changes of studied parameters. Forecasting of said influence is difficult because of its ambiguity. Therefore, the oxide film must be eliminated by etching in order to obtain the reliable results

• Periodical: Materials Science Forum (Volumes 738-739)
• Pages: 301-305
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.738-739.301
• Online since: January 2013
• Authors: Elena P. Ryklina
• Keywords: Functional Property, Oxide Layer, Shape Recovery Temperature, Thermomechanical Treatment (TMT), Titanium Nickelide

References

[1] V. Brailovski., I. Yu. Khmelevskaya, S.D. Prokoshkin, V.G. Pushin, E.P. Ryklina, R.Z. Valiev. Foundations of heat and thermomechanical treatments and their effect on the structure and properties of titanium nickelide-based alloys, Phys. Met. and Metallogr. 97, Suppl. 1 (2004).

[2] S.D. Prokoshkin, E.P. Ryklina, A.A. Chernavina, V. Ya. Abramov, N.S. Krestnikov. Effect of the State of the Surface of Ti–Ni Alloy Products on the Shape Memory Effect Parameters, Russian Metallurgy (Metally), 6 (2009) 519–526.

DOI: 10.1134/s003602950906010x
