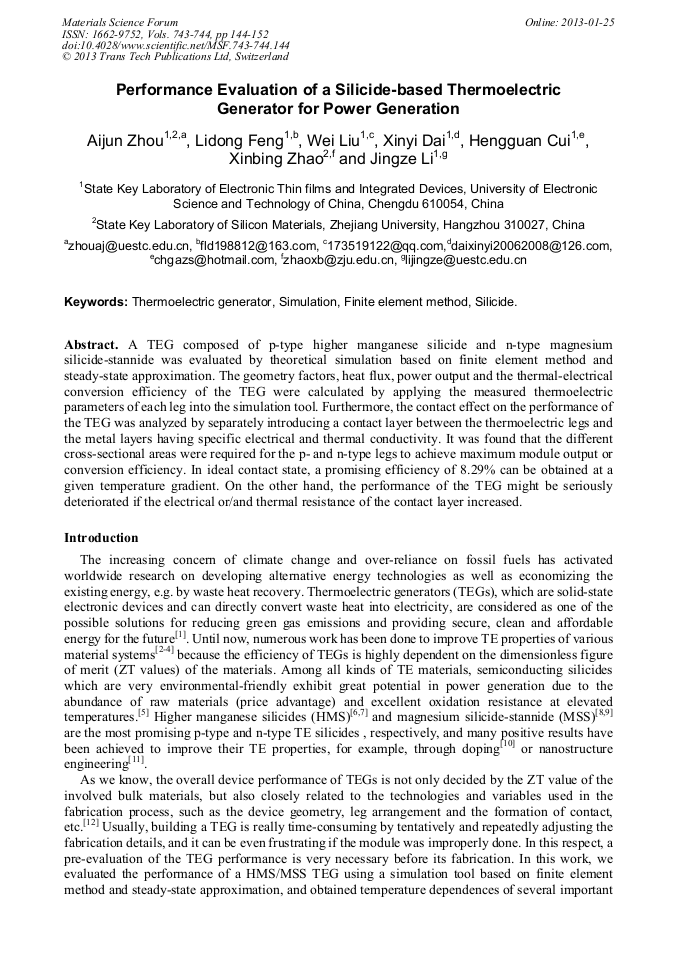

Performance Evaluation of a Silicide-Based Thermoelectric Generator for Power Generation

Abstract:

A TEG composed of p-type higher manganese silicide and n-type magnesium silicide-stannide was evaluated by theoretical simulation based on finite element method and steady-state approximation. The geometry factors, heat flux, power output and the thermal electrical conversion efficiency of the TEG were calculated by applying the measured thermoelectric parameters of each leg into the simulation tool. Furthermore, the contact effect on the performance of the TEG was analyzed by separately introducing a contact layer between the thermoelectric legs and the metal layers having specific electrical and thermal conductivity. It was found that the different cross-sectional areas were required for the p-and n-type legs to achieve maximum module output or conversion efficiency. In ideal contact state, a promising efficiency of 8.29% can be obtained at a given temperature gradient. On the other hand, the performance of the TEG might be seriously deteriorated if the electrical or/and thermal resistance of the contact layer increased.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 144-152
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.144
• Online since: January 2013
• Authors: Ai Jun Zhou, Li Dong Feng, Wei Liu, Xin Yi Dai, Heng Guan Cui, Xin Bing Zhao, Jing Ze Li
• Keywords: Finite Element Method (FEM), Silicide, Simulation, Thermoelectric Generator

References

[1] F.J. DiSalvo, Thermoelectric cooling and power generation, Science. 285 (1999) 703-706.

DOI: 10.1126/science.285.5428.703

[2] D. R. Clarke, P. Fratzl, Annual Reviews of Materials Research, Annual Reviews, Palo Alto, (2011).

[3] G. Wang, L. Endicott, C. Uher, Recent Advances in the Growth of Bi-Sb-Te-Se Thin Films, Sci. Adv. Mater. 3 (2011) 539-560.

DOI: 10.1166/sam.2011.1182

[4] K. Nielsch, J. Bachmann, J. Kimling, H. Bottner, Thermoelectric Nanostructures: From Physical Model Systems towards Nanograined Composites, Adv. Energ. Mater. 1 (2011) 713-731.

DOI: 10.1002/aenm.201100207

[5] M.I. Fedorov, V.K. Zaitsev, F.Y. Solomkin, M.V. Vedernikov, Thermoelectric elements based on compounds of silicon and transition metals, Tech. Phys. Lett. 23 (1997) 602-603.

DOI: 10.1134/1.1261766

[6] D.M. Rowe, Thermoelectrics Handbook, CRC Press, New York, (2005).

[7] M. Umemoto, Z.G. Liu, R. Omatsuzawa, K. Tsuchiya, Production and characterization of Mn-Si thermoelectric materials, Mater. Sci. Forum. 342-346 (2000) 918-923.

DOI: 10.4028/www.scientific.net/msf.343-346.918

[8] V.K. Zaitsev, M.I. Fedorov, E.A. Gurieva, I.S. Eremin, P.P. Konstantinov, A.Y. Samunin, M.V. Vedernikov, Highly effective Mg2Si1–xSnx thermoelectrics, Phys. Rev. B. 74 (2006) 045207.

DOI: 10.1109/ict.2005.1519920

[9] V.K. Zaitsev, M.I. Fedorov, E.A. Gurieva, I.S. Eremin, P.P. Konstantinov, A.Y. Samunin, M.V. Vedernikov, Thermoelectrics of n-type with ZT > 1 based on Mg2Si-Mg2Sn solid solutions, Proceedings of the 24th International Conference on Thermoelectrics, Jun 19-23, Clemson, SC, 2005, p.189.

DOI: 10.1109/ict.2005.1519920

[10] Q. Zhang, J. He, T.J. Zhu, S.N. Zhang, X.B. Zhao, T.M. Tritt, High figures of merit and natural nanostructures in Mg2Si0. 4Sn0. 6 based thermoelectric materials, Appl. Phys. Lett. 93 (2008) 102109.

DOI: 10.1063/1.2981516

[11] D.M. Rowe, M. Gao, Evaluation of thermoelectric modules for power generation, J. Power Sources. 73 (1998) 193-198.

DOI: 10.1016/s0378-7753(97)02801-2

[12] I. Aoyama, M.I. Fedorov, V.K. Zaitsev, F.Y. Solomkin, I.S. Eremin, A.Y. Samunin, M. Mukoujima, S. Sano, T. Tsuji, Effects of Ge Doping on Micromorphology of MnSi in MnSi1. 7 and on Their Thermoelectric Transport Properties, Jpn. J. Appl. Phys. 44 (2005).

DOI: 10.1143/jjap.44.8562

[13] W. Seifert, E. Mueller, S. Walczak, Generalized analytic one-dimensional description of non-homogeneous TE coller and generator elements based on compatibility apprach, Proceedings of the 25th International Conference on Thermoelectrics, August 6-10, Vienna, Austria, 2006, p.714.

DOI: 10.1109/ict.2006.331241

[14] E. Mueller, G. Karpinski, L.M. Wu, S. Walczak, W. Seifert, Separated effect of 1D thermoelectric material gradients, Proceedings of the 25th International Conference on Thermoelectrics, August 6-10, Vienna, Austria, 2006, p.204.

DOI: 10.1109/ict.2006.331333

[15] G.J. Snyder, T.S. Ursell, Thermoelectric efficiency and compatibility, Phys. Rev. Lett. 91 (2003) 148301.

[16] A.J. Zhou, X.B. Zhao, T.J. Zhu, S.H. Yang, T. Dasgupta, C. Stiewe, R. Hassdorf, E. Mueller, Improved Thermoelectric Performance of Higher Manganese Silicides with Ge Additions, J. Electron. Mater. 39 (2010) 2002-(2007).

DOI: 10.1007/s11664-009-1034-6

[17] D.M. Rowe, CRC Handbook of Thermoelectric, CRC Press, Boca Raton, (1995).

[18] L.I. Petrova, L.D. Dudkin, V.S. Khlomov, Diffusion interaction of CoSi and MnSi1. 75 with Nickel, Inorg. Mater. 31 (1995) 1112-1116.

[19] P L.I. Petrova, L.D. Dudkin, M.I. Fedorov, F.Y. Solomkin, V.K. Zaitsev, I.S. Eremin, Diffusion processes at the MnSi1. 75/Cr contact, Inorg. Mater. 40 (2004) 558-562.

DOI: 10.1023/b:inma.0000031985.20191.3a

[20] P L.I. Petrova, L.D. Dudkin, V.S. Khlomov, M.I. Fedorov, V.K. Zaitsev, F.Y. Solomkin, Chromium as an antidiffusion interlayer in higher manganese silicide-nickel contacts, Tech. Phys. 45 (2000) 641-643.

DOI: 10.1134/1.1259692
