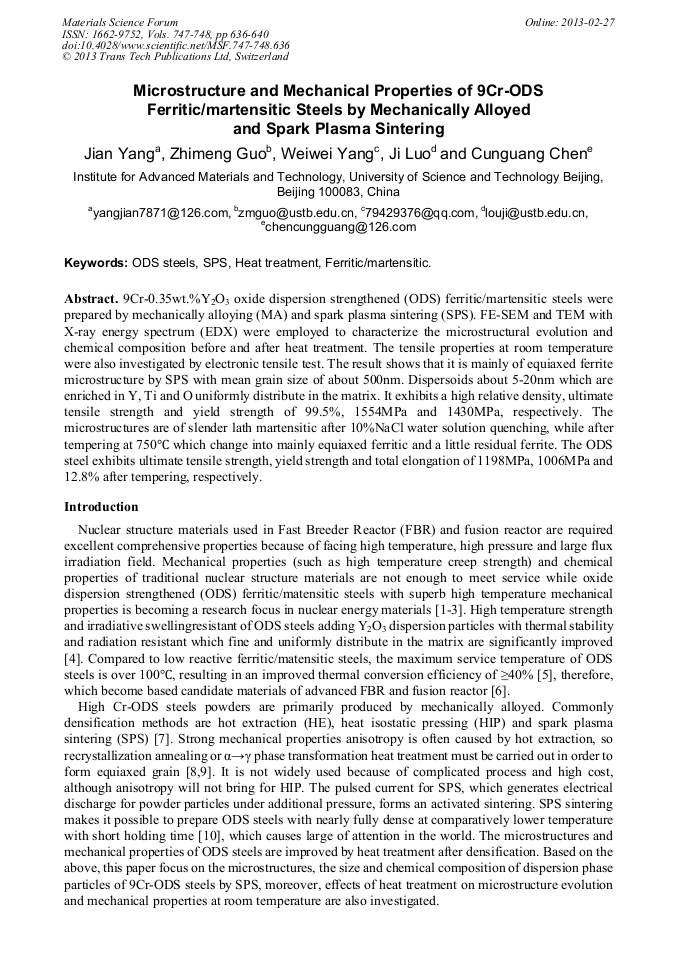

Microstructure and Mechanical Properties of 9Cr-ODS Ferritic/Martensitic Steels by Mechanically Alloyed and Spark Plasma Sintering

Abstract:

9Cr-0.35wt.%Y₂O₃ oxide dispersion strengthened (ODS) ferritic/martensitic steels were prepared by mechanically alloying (MA) and spark plasma sintering (SPS). FE-SEM and TEM with X-ray energy spectrum (EDX) were employed to characterize the microstructural evolution and chemical composition before and after heat treatment. The tensile properties at room temperature were also investigated by electronic tensile test. The result shows that it is mainly of equiaxed ferrite microstructure by SPS with mean grain size of about 500nm. Dispersoids about 5-20nm which are enriched in Y, Ti and O uniformly distribute in the matrix. It exhibits a high relative density, ultimate tensile strength and yield strength of 99.5%, 1554MPa and 1430MPa, respectively. The microstructures are of slender lath martensitic after 10%NaCl water solution quenching, while after tempering at 750 which change into mainly equiaxed ferritic and a little residual ferrite. The ODS steel exhibits ultimate tensile strength, yield strength and total elongation of 1198MPa, 1006MPa and 12.8% after tempering, respectively.

• Periodical: Materials Science Forum (Volumes 747-748)
• Pages: 636-640
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.747-748.636
• Online since: February 2013
• Authors: Jian Yang, Zhi Meng Guo, Wei Wei Yang, Ji Luo, Cun Guang Chen
• Keywords: Ferritic/Martensitic, Heat Treatment, ODS Steels, SPS

References

[1] S. Ukai, T. Nishida, T. Okuda, T. Yoshitake, R&D of oxide dispersion strengthened ferritic martensitic steels for FBR, J. Nucl. Mater. 258-263 (1998) 1745-1749.

DOI: 10.1016/s0022-3115(98)00241-4

[2] H.R. Sandim, R.A. Renzetti, A.F. Padilha, D. Raabe, M. Klimenkov, R. Lindau, A. Moslang, Annealing behavior of ferritic-matensitic 9%Cr-ODS-Eurofer steel, Mater. Sci. Eng. A527 (2010) 3602-3608.

DOI: 10.1016/j.msea.2010.02.051

[3] M. Li, Z.J. Zhou, P. He, L. Liao, Y.L. Xu, C.C. Ge, Microstructure and mechanical property of 12Cr oxide dispersion strengthened ferritic steel for fusion application, Fusion Eng. Des. 85 (2010) 1573-1576.

DOI: 10.1016/j.fusengdes.2010.04.045

[4] R. Singh, J.H. Schneibel, S. Divinski, G. Wilde, Grain boundary diffusion of Fe in ultrafine-grained nanocluster strengthened ferritic steel, Acta Mater. 59 (2011) 1346-1353.

DOI: 10.1016/j.actamat.2010.10.067

[5] A. Kohyama, M. Seki, K. Abe, T. Muroga, H. Matsui, S. Jitsukawa, S. Matsuda, Interactions between fusion materials R&D and other technologies, J. Nucl. Mater. 20 (2000) 283-287.

DOI: 10.1016/s0022-3115(00)00156-2

[6] A. Uehira, S. Ukai, T. Mizuno, E. Asaga, E. Yoshida, Tensile properties of 11Cr-0. 5 Mo-2W-V-Nb stainless steel in LMFBR environment, J. Nucl. Sci. Technol. 37 (2000) 780-786.

DOI: 10.1080/18811248.2000.9714956

[7] S.K. Karak, T. Chudoba, Z. Witczak, W. Lojkowski, I. Manna, Effect of Cr content on isothermal oxidation behaviour of nano–Y2O3 dispersed ferritic alloys prepared by mechanical alloying and hot isostatic pressing, Mater. Sci. Eng. A528 (2011).

DOI: 10.1016/j.msea.2011.06.039

[8] S. Ukai, H. Nishida, T. Okuda, M. Fujiwara, K. Asabe, Development of oxide dispersion strengthened ferritic steels for FBR core application, (I). Improvement of mechanical properties by recrystallization processing, J. Nucl. Sci. Technol. 3 (1997).

DOI: 10.1080/18811248.1997.9733658

[9] S. Ukai, H. Nishida, T. Okuda, T. Yoshitake, Development of oxide dispersion strengthened steels for FBR core application, (II). Morphology improvement by martensite transformation, J. Nucl. Sci. Technol. 4 (1998) 294-300.

DOI: 10.1080/18811248.1998.9733859

[10] Cs. Balazsi, F. Gillemot, M. Horvath, F. Weber, K. Balazsi, S.F. Cinar, Y. Onuralp, Preparation and structural investigation of nanostructured oxide dispersed strengthened steels, J . Nucl. Mater. 46 (2011) 4598-4605.

DOI: 10.1007/s10853-011-5359-1

[11] M.K. Miller, D.T. Hoelzer, E.A. Kenik, K.F. Russell Stability of ferritic MA/ODS alloys at high temperatures. Intermetallics, 13 (2005) 387-392.

DOI: 10.1016/j.intermet.2004.07.036

[12] M. Li, Z.J. Zhou, L. Liao, Y.L. Xu, C.C. Ge, Research progress of dispersed oxides in ODS ferritic steels, Mater. Rev. 8 (2010) 94-98.

[13] T. Okuda, M. Fujiwara, Dispersion behavior of oxide particles in mechanically alloyed ODS steel, J. Mater. Sci. Lett. 22 (1995) 1600-1603.

DOI: 10.1007/bf00455428

[14] S. Ukai, S. Ohtsuka, T. Kaito, H. Sakasegawa, N. Chikata, S. Hayashi, High-temperrature strength characterization of advanced 9Cr-ODS ferritic steels, Mater. Sci. Eng. A510-511 (2009) 115-120.

DOI: 10.1016/j.msea.2008.04.126
