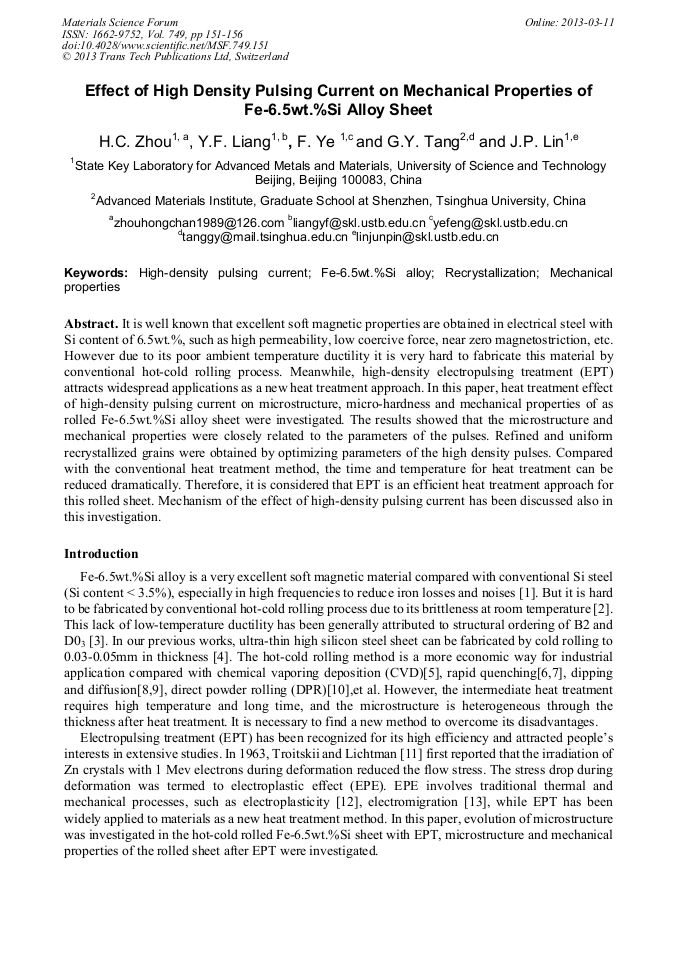

Effect of High Density Pulsing Current on Mechanical Properties of Fe-6.5wt.%Si Alloy Sheet

Abstract:

t is well known that excellent soft magnetic properties are obtained in electrical steel with Si content of 6.5wt.%, such as high permeability, low coercive force, near zero magnetostriction, etc. However due to its poor ambient temperature ductility it is very hard to fabricate this material by conventional hot-cold rolling process. Meanwhile, high-density electropulsing treatment (EPT) attracts widespread applications as a new heat treatment approach. In this paper, heat treatment effect of high-density pulsing current on microstructure, micro-hardness and mechanical properties of as rolled Fe-6.5wt.%Si alloy sheet were investigated. The results showed that the microstructure and mechanical properties were closely related to the parameters of the pulses. Refined and uniform recrystallized grains were obtained by optimizing parameters of the high density pulses. Compared with the conventional heat treatment method, the time and temperature for heat treatment can be reduced dramatically. Therefore, it is considered that EPT is an efficient heat treatment approach for this rolled sheet. Mechanism of the effect of high-density pulsing current has been discussed also in this investigation.

• Periodical: Materials Science Forum (Volume 749)
• Pages: 151-156
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.749.151
• Online since: March 2013
• Authors: H.C. Zhou, Yong Feng Liang, Feng Ye, Guo Yi Tang, Jun Pin Lin
• Keywords: Fe-6.5wt.%Si Alloy, High-Density Pulsing Current, Mechanical Property, Recrystallization

References

[1] R.M. Bozorth, Ferromagnetism (Van Nostrand, 1951), 81.

[2] T. Ros-Yañez, Y. Houbaert, O. Fischer, J. Schneider, Production of high silicon steel for electrical applications by thermomechanical processing, Journal of Materials Processing Technology. 143-144 (2003) 916-921.

DOI: 10.1016/j.jmatprotec.2003.10.002

[3] K. Raviprasad, K. Chattopadhyay, The influence of critical points and structure and microstructural evolution in iron rich Fe-Si alloys, Acta Metallurgica Et Materialia, 41 (1993) 609-624.

DOI: 10.1016/0956-7151(93)90091-6

[4] Y.F. Liang, F. Ye, J.P. Lin, Y.L. Wang, G.L. Chen, Effect of annealing temperature on magnetic properties of cold rolled high silicon steel thin sheet, Journal of Alloy and Compounds, 491 (2010) 268-270.

DOI: 10.1016/j.jallcom.2009.10.118

[5] Y. Takada, M. Abe, S. Masuda, J. Inagaki, Commercial scale production of Fe-6. 5wt. %Si sheet and its magnetic properties, Journal of Applied Physics, 64 (1988) 5367-5369.

DOI: 10.1063/1.342373

[6] K.I. Arai, N. Tsuya, Ribbon-form silicon-iron alloy containing around 6. 5 percent silicon, IEEE Transactions on Magnetics, 16 (1980) 126-129.

DOI: 10.1109/tmag.1980.1060560

[7] Y.F. Liang, J.P. Lin, F. Ye, Y.J. Li, Y.L. Wang, G.L. Chen, Microstructure and mechanical properties of rapidly quenched Fe-6. 5 wt. % Si alloy, Journal of Alloys and Compounds, 504 (2010) S476-S479.

DOI: 10.1016/j.jallcom.2010.03.075

[8] T. Ros-Yañez, Y. Houbaert, V.G. Rodriguez, High-silicon steel produced by hot dipping and diffusion annealing, Journal of Applied Physics, 91 (2002) 7857-7859.

DOI: 10.1063/1.1449445

[9] T. Ros-Yanez, D. Ruiz, J. Barros, Y. Houbaert, Advances in the production of high-silicon electricalsteel by thermomechanical processing and by immersion and diffusion annealing, Journal of Alloys and Compounds, 369 (2004) 125-130.

DOI: 10.1016/j.jallcom.2003.09.070

[10] R. Li, Q. Shen, L. Zhang, T. Zhang, Magnetic properties of high silicon iron sheet fabricated by direct powder rolling, Journal of Magnetism and Magnetic Materials, 281 (2004) 135-139.

DOI: 10.1016/j.jmmm.2004.04.098

[11] O.A. Troitskii, V.I. Lichtman, Anisotropy of action of gamma-electronic emission and gamma rays on deformation of single zinc crystals in brittle state, Doklady Akademii Nauk Sssr, 148 (1963) 332.

[12] G.Y. Tang, M. Zheng, Y. Zhu, J. Zhang, W, Fang, Q, Li, The application of the electro-plastic technique in the cold-drawing of steel wires, Journal of Materials Processing Technology, 84 (1998) 268-270.

DOI: 10.1016/s0924-0136(98)00229-5

[13] J.R. Lloyd, Electromigration in intergrated circuit conductors, Journal of Physics D: Applied Physics, 32 (1999) R109-R118.

DOI: 10.1088/0022-3727/32/17/201

[14] X.S. Fang, Y.F. Liang, F. Ye, J.P. Lin, Cold rolled Fe-6. 5 wt. % Si alloy foils with high magnetic induction, Journal of Alloy and Compounds, 111 (2012) 094913.

DOI: 10.1063/1.4711102

[15] Y.F. Liang, F. Ye, J.P. Lin, Y.L. Wang, L.Q. Zhang, G.L. Chen, Effect of heat treatment on mechanical properties of heavily cold-rolled Fe-6. 5wt%Si alloy sheet, SCIENCE CHINA Technological Sciences, 53 (2010) 1008-1011.

DOI: 10.1007/s11431-010-0125-1
