Preparation and Heat Treatment of Ni60-WC/Cr12MoV Bimetallic Composite Materials

You Qing Cao; Yu Ting Lv; Peng Jang; Jin Fu Xu

doi:10.4028/www.scientific.net/MSF.749.366

Paper Titles

Microstructure and Mechanical Properties of AZ81 Magnesium Alloy after Unequal Channel Angular Pressing
p.343

Microstructure Evolution in Undercooled Ni-Si Melt
p.349

Effect of Technological Parameters on Preparation of Mg-Based Foam Materials
p.356

Influences of High-Temperature Short-Time Endurance Performance of Heat Resistant Steel for Ultra Supercritical Units
p.361

Preparation and Heat Treatment of Ni60-WC/Cr12MoV Bimetallic Composite Materials
p.366

Tungsten-Copper Composite Fabricated by Hot-Shock Consolidation
p.372

Investigation of Deibinding and Sintering of 3Y-ZrO₂ Gear Fabricated by Micro Powder Injection Molding
p.378

Softening Mechanism in Heat Affected Zone of 2519 High Strength Al-Cu Alloy
p.387

Research on Preparation Technology of High Quality Diamond Film
p.392

HomeMaterials Science ForumMaterials Science Forum Vol. 749Preparation and Heat Treatment of Ni60-WC/Cr12MoV...

Preparation and Heat Treatment of Ni60-WC/Cr12MoV Bimetallic Composite Materials

Abstract:

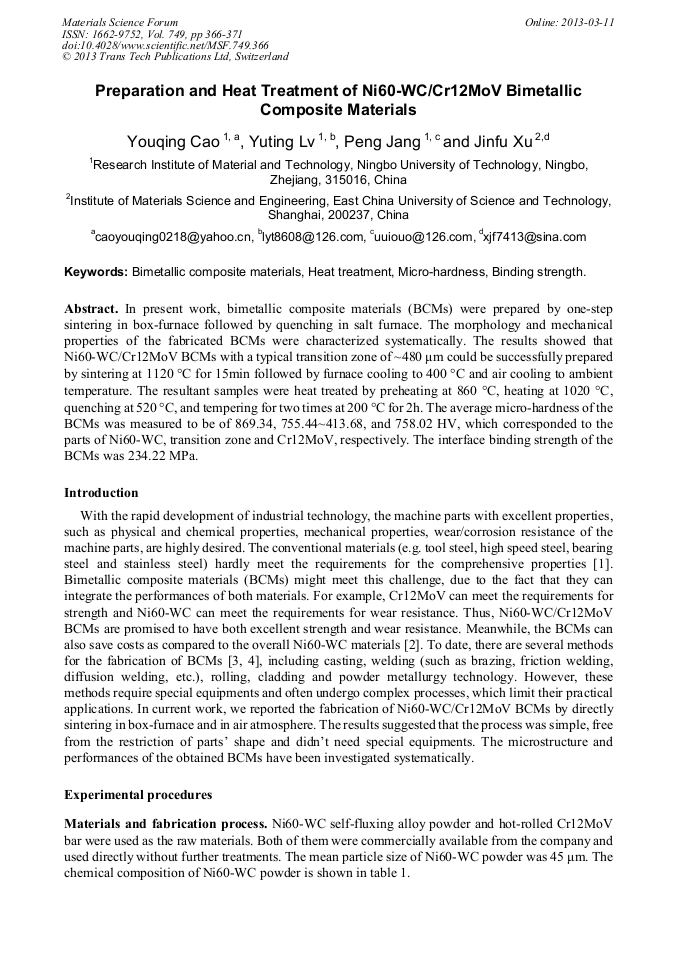

In present work, bimetallic composite materials (BCMs) were prepared by one-step sintering in box-furnace followed by quenching in salt furnace. The morphology and mechanical properties of the fabricated BCMs were characterized systematically. The results showed that Ni60-WC/Cr12MoV BCMs with a typical transition zone of ~480 μm could be successfully prepared by sintering at 1120 °C for 15min followed by furnace cooling to 400 °C and air cooling to ambient temperature. The resultant samples were heat treated by preheating at 860 °C, heating at 1020 °C, quenching at 520 °C, and tempering for two times at 200 °C for 2h. The average micro-hardness of the BCMs was measured to be of 869.34, 755.44~413.68, and 758.02 HV, which corresponded to the parts of Ni60-WC, transition zone and Cr12MoV, respectively. The interface binding strength of the BCMs was 234.22 MPa.

You might also be interested in these eBooks

Materials Performance, Modeling and Simulation

View Preview

Info:

Periodical:

Materials Science Forum (Volume 749)

Pages:

366-371

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.749.366

Citation:

Cite this paper

Online since:

March 2013

Authors:

You Qing Cao, Yu Ting Lv, Peng Jang, Jin Fu Xu

Keywords:

Bimetallic Composite Materials, Binding Strength, Heat Treatment, Microhardness

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] X.P. Zhou, H. Lin. Microstructures and properties of coating from cemented carbide by vacuum powder sintering. International Journal of Refractory Metals & Hard Materials. 22 (2004) 247–250.

DOI: 10.1016/j.ijrmhm.2004.08.001

Google Scholar

[2] X.H. Wen, X.Q. Ding, X.Y. Han, X.B. Zhang, J.F. Xu. M42 PM High Speed Steel /45 Steel Bimetal Composite Fabricated by Spark Plasma Sintering. Materials for Mechanical Engineering. 34 (2010) 51-53.

Google Scholar

[3] B.W. Xiong, C.C. Cai, H. Wan, B.P. Lu. Fabrication of high chromium cast iron and medium carbon steel bimetal by liquid–solid casting in electromagnetic induction ﬁeld. Materials and Design. 32 (2011) 2978–2982.

DOI: 10.1016/j.matdes.2011.01.006

Google Scholar

[4] M. B. Henderson, D. Arrell, M. Heobel, R. Larsson, G. Marchant. Nickel based superalloy welding practices for industrial gas turbine applications. Science and Technology of Welding andJoining. 9 (2004) 13-21.

DOI: 10.1179/136217104225017099

Google Scholar
