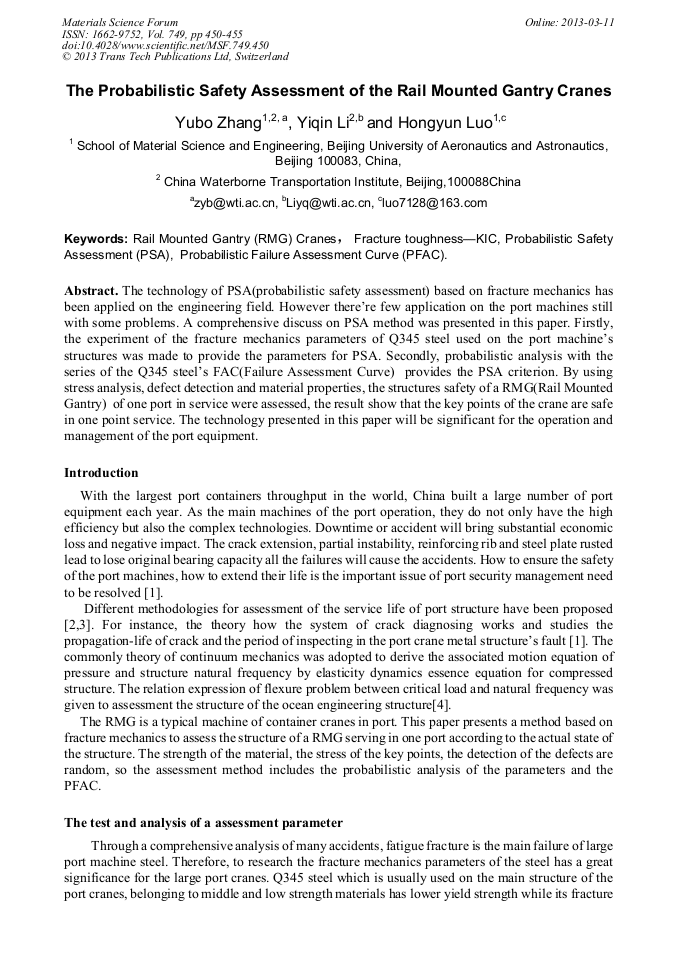

The Probabilistic Safety Assessment of the Rail Mounted Gantry Cranes

Abstract:

The technology of PSA(probabilistic safety assessment) based on fracture mechanics has been applied on the engineering field. However therere few application on the port machines still with some problems. A comprehensive discuss on PSA method was presented in this paper. Firstly, the experiment of the fracture mechanics parameters of Q345 steel used on the port machines structures was made to provide the parameters for PSA. Secondly, probabilistic analysis with the series of the Q345 steels FAC(Failure Assessment Curve) provides the PSA criterion. By using stress analysis, defect detection and material properties, the structures safety of a RMG(Rail Mounted Gantry) of one port in service were assessed, the result show that the key points of the crane are safe in one point service. The technology presented in this paper will be significant for the operation and management of the port equipment.

• Periodical: Materials Science Forum (Volume 749)
• Pages: 450-455
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.749.450
• Online since: March 2013
• Authors: Yu Bo Zhang, Yi Qin Li, Hong Yun Luo
• Keywords: Fracture Toughness-KIC, Probabilistic Failure Assessment Curve (PFAC), Probabilistic Safety Assessment (PSA), Rail Mounted Gantry (RMG) Cranes

References

[1] Z.Y. Xu, Y.T. Sun, Theory and Application including Improvement of System of Crack Diagnosing for Port Mechanical Metal Structure [J]. China Water Transport Vol. 5 No. 3 (2007)9-11.

[2] M.R. Bache, Fatigue life pred iction techniques for notch geom etr ies in titanium [ J] 1 A lloy Inte rnational Journa of Fatigue. 21(4)(1999) 32-34.

[3] U. stilovsky S, Random fatigue crack grow th in a lum inum[ J] 1 A lloy s Interna tiona l Journa l o f Fatigue. 21(1999) 45-47.

[4] J. Liu, Safety Assessment for Metallic Structure of In-service Gantry Crane [ D] School of Naval Architecture, Ocean and Civil Engineering Shanghai Jiao Tong University. (2010) 5-8.

[5] M. Xiao D.S. Dong, Fracture Toughness Testing and Research of Material Q235 Commonly Used to Large2scale Harbor Machine Constructions [J]. Journal of Shanghai Maritime University Vol. 21 No. 4 Dec. ( 2000) 56-62.

[6] P.J. Budden, J.K. Sharples, A.R. Dowling, The R6 procedure: recent developments and comparison with alternative approaches [J]. Pressure Vessels and Piping. 77 (2000) 895-903.

DOI: 10.1016/s0308-0161(01)00012-6

[7] I. Milne, R.A. Anisworth, Assessment of the Integrity of Structures Containing Defects, CEGB Report R/ H/ R6-Revision 3[R]. Int J PVP. (1988) 32.

[8] R.A. Ainsworth etal. R6-Revision 4: 2001, Assessment of the integrity of structure containing defect[R]. British Energy Generation Ltd. Amendment, (2001).

[9] H.Y. Luo, Y.B. Zhang, Q.P. Zhong, Investigation of probability failure assessing curve of steel used as pressure vessel material produced in China, [J]. Journal of Beijing University of Aeronautics and Astronautics Vol. 32 No. 4 (2006) 450-454.

[10] X. Jin, Probabilistic analysis and assessment of failure of engineering structures [ D] Beijing University of Aeronautics and Astronautics. (1998) 120-129.

[11] H.S. Wu, Probabilistic R6 Assessment of Structural Integrity [ D] Beijing University of Aeronautics and Astronautics. (1996) 62-79.

[12] Y.B. Zhang, J.C. Liu, Approach to Safety Assessment System and Its Application to Port Machineries, [J] PORT OPERATION . 3(2007)7-9.
