Nanoporous Copper Dealloyed from a Nanocrystallized Ticu Alloy

Abstract:

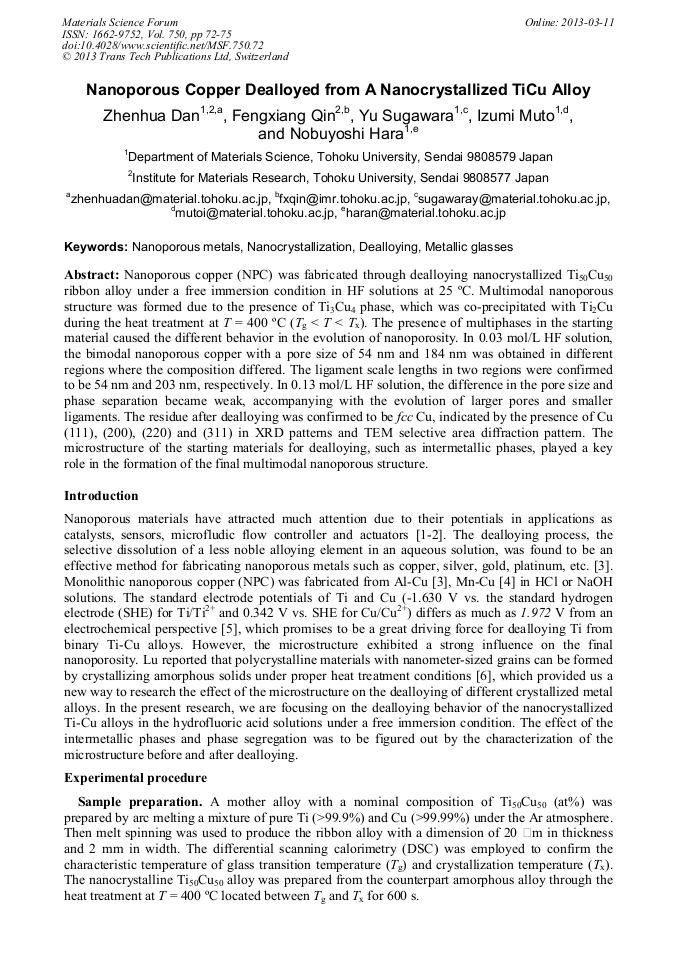

Nanoporous copper (NPC) was fabricated through dealloying nanocrystallized Ti_{Subscript text}50Cu50 ribbon alloy under a free immersion condition in HF solutio_{Subscript text}ns at 25 °C. Multimodal nanoporous structure was formed due to the presence of Ti3Cu4 phase, which was co-precipitated with Ti2Cu during the heat treatment at T = 400 °C (Italic textT_{Subscript text}g Italic textT Subscript textx). The presence of multiphases in tItalic texthe starting material caused the different behavior in the evolution of nanoporosity. In 0.03 mol/L HF solution, the bimodal nanoporous copper with a pore size of 54 nm and 184 nm was obtained in different regions where the composition differed. The ligament scale lengths in two regions were confirmed to be 54 nm and 203 nm, respectively. In 0.13 mol/L HF solution, the difference in the pore size and phase separation became weak, accompanying with the evolution of larger pores and smaller ligaments. The residue after dealloying was confirmed to be fcc Cu, indicated by the presence of Cu (111), (200), (220) and (311) in XRD patterns and TEM selective area diffraction pattern. The microstructure of the starting materials for dealloying, such as intermetallic phases, played a key role in the formation of the final multimodal nanoporous structure.

• Periodical: Materials Science Forum (Volume 750)
• Pages: 72-75
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.750.72
• Online since: March 2013
• Authors: Zhen Hua Dan, Feng Xiang Qin, Yu Sugawara, Izumi Muto, Nobuyoshi Hara
• Keywords: Dealloying, Metallic Glass, Nanocrystallization, Nanoporous Metals

References

[1] K. Bonroy, J.M. Friedt, F. Frederix, W. Laureyn, S. Langerock, A. Campitelli, M. Sara, G. Borghs, B. Goddeeris and P. Declerck: Anal. Chem., Vol. 76 (2004), p.4299.

DOI: 10.1021/ac049893u

[2] D. Kramer, R.N. Viswanath and J. Weissmüller: Nano Lett., Vol. 4 (2004), p.793.

[3] Z.H. Zhang, Y. Wang, Z. Qi, W.H. Zhang, J.Y. Qin and J. Frenzel: J. Phys. Chem. C, Vol. 113 (2009), p.12629.

[4] J.R. Hayes, A.M. Hodge, J. Biener and A.V. Hamza: J. Mater. Res., Vol. 21 (2006), p.2611.

[5] CRC handbook of chemistry and physics, D.R. Lide, 84th ed., CRC Press LLC, Boca Raton London New York Washington D. C., 2003-(2004).

DOI: 10.1021/ja0336372

[6] K. Lu: Mater. Sci. Eng. R, Vol. 16 (1996), p.161.

[7] Y.A. Buslaev, V.A. Bochkareva and N.S. Nikolaev: Russ. Chem. Bull., Vol. 11 (1962), p.361.

[8] P. Roy, S. Berger and P. Schmuki: Angew. Chem. Int. Ed., Vol. 50 (2011), p.2904.

[9] Z.H. Dan. F.X. Qin, Y. Sugawara, I. Muto and N. Hara: Intermetallics, Vol. 29 (2012), p.14.
