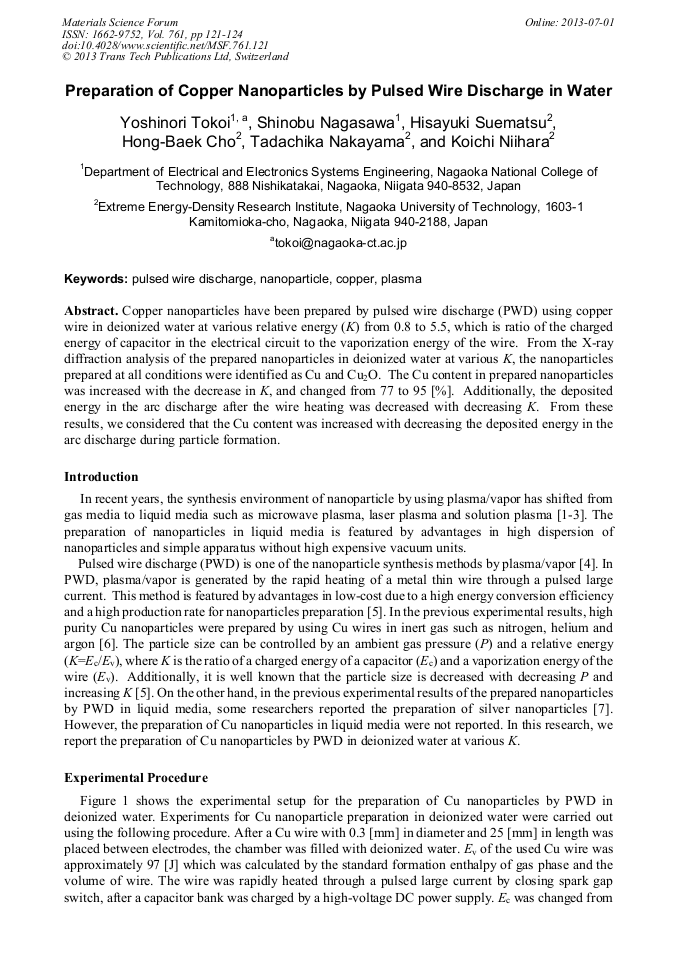

Preparation of Copper Nanoparticles by Pulsed Wire Discharge in Water

Abstract:

Copper nanoparticles have been prepared by pulsed wire discharge (PWD) using copper wire in deionized water at various relative energy (K) from 0.8 to 5.5, which is ratio of the charged energy of capacitor in the electrical circuit to the vaporization energy of the wire. From the X-ray diffraction analysis of the prepared nanoparticles in deionized water at various K, the nanoparticles prepared at all conditions were identified as Cu and Cu₂O. The Cu content in prepared nanoparticles was increased with the decrease in K, and changed from 77 to 95 [%]. Additionally, the deposited energy in the arc discharge after the wire heating was decreased with decreasing K. From these results, we considered that the Cu content was increased with decreasing the deposited energy in the arc discharge during particle formation.

• Periodical: Materials Science Forum (Volume 761)
• Pages: 121-124
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.761.121
• Online since: July 2013
• Authors: Yoshinori Tokoi, Shinobu Nagasawa, Hisayuki Suematsu, Hong Baek Cho, Tadachika Nakayama, Koichi Niihara
• Keywords: Copper, Nanoparticle, Plasma, Pulsed Wire Discharge

References

[1] D. Vollath, Plasma synthesis of nanoparticles, KONA 25 (2007) 39-55.

[2] D. B. Geohegan, A. A. Puretzky, G. Duscher, S. J. Pennycook, Time-resolved imaging of gas phase nanoparticle synthesis by laser ablation, Appl. Phys. Lett., 72 (1998) 2987-2989.

DOI: 10.1063/1.121516

[3] O. Takai, Solution plasma processing (SPP), Pure Appl. Chem., 80 (2011) 2003–2011.

[4] W. Jiang, K. Yatsui, Pulsed wire discharge for nanosized powder synthesis, IEEE Trans. Plasma Sci. 26 (1998) 1498-1501.

DOI: 10.1109/27.736045

[5] H. Suematsu, K. Murai, Y. Tokoi, T. Suzuki, T. Nakayama, W. Jiang, K. Niihara, Nanosied powder preparation with high energy conversion efficiency by pulsed wire discharge, J. Chinese Ceram. Soc. 35 (2007) 939-947.

DOI: 10.2497/jjspm.54.180

[6] K. Murai, Y. Tokoi, H. Suematsu, W. Jiang, K. Yatsui, K. Niihara, Particle size controllability of ambient gas species for copper nanoparticles prepared by pulsed wire discharge, Jpn. J. Appl. Phys. 47 (2008) 3726-3730.

DOI: 10.1143/jjap.47.3726

[7] C. Cho, Y. W. Choi, C. Kang, and G. W. Lee, Effects of the medium on synthesis of nanopowders by wire explosion process, Appl. Phys. Lett. 91 (2007) 141501.

DOI: 10.1063/1.2794724

[8] Y. Tokoi, T. Suzuki, T. Nakayama, H. Suematsu, F. Kaneko, K. Niihara, Synthesis of aluminum nitride nanopowder with particle size less than 10 nm by pulsed wire discharge in nitrogen gas, Jpn. J. Appl. Phys. 49 (2010) 116201.

DOI: 10.1143/jjap.49.116201
