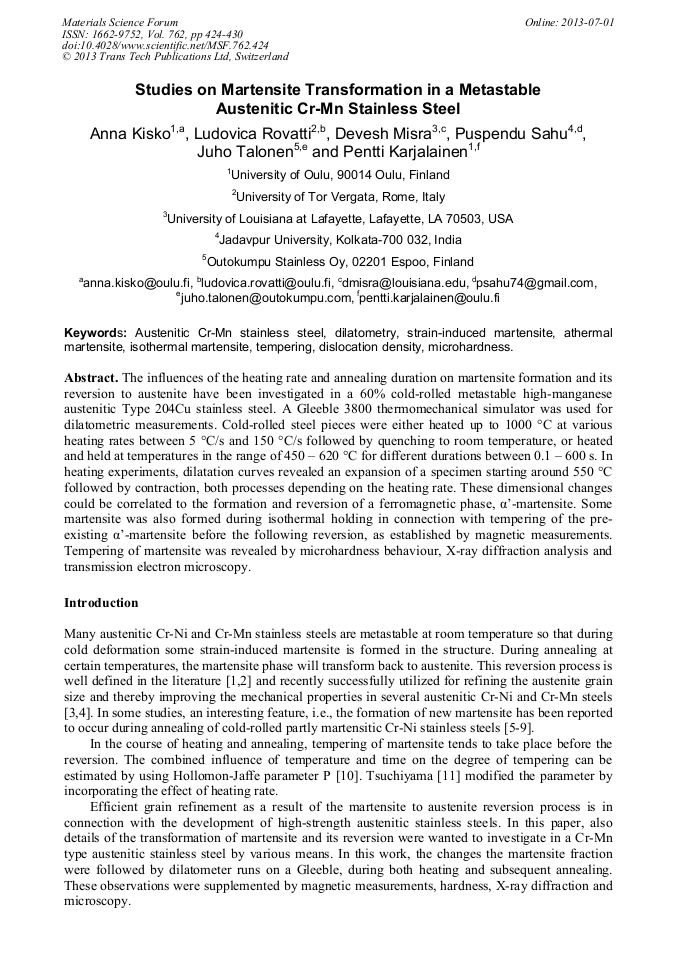

Studies on Martensite Transformation in a Metastable Austenitic Cr-Mn Stainless Steel

Abstract:

The influences of the heating rate and annealing duration on martensite formation and its reversion to austenite have been investigated in a 60% cold-rolled metastable high-manganese austenitic Type 204Cu stainless steel. A Gleeble 3800 thermomechanical simulator was used for dilatometric measurements. Cold-rolled steel pieces were either heated up to 1000 °C at various heating rates between 5 °C/s and 150 °C/s followed by quenching to room temperature, or heated and held at temperatures in the range of 450 620 °C for different durations between 0.1 600 s. In heating experiments, dilatation curves revealed an expansion of a specimen starting around 550 °C followed by contraction, both processes depending on the heating rate. These dimensional changes could be correlated to the formation and reversion of a ferromagnetic phase, α-martensite. Some martensite was also formed during isothermal holding in connection with tempering of the pre-existing α-martensite before the following reversion, as established by magnetic measurements. Tempering of martensite was revealed by microhardness behaviour, X-ray diffraction analysis and transmission electron microscopy.

• Periodical: Materials Science Forum (Volume 762)
• Pages: 424-430
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.762.424
• Online since: July 2013
• Authors: Anna P. Kisko, Ludovica Rovatti, R.D.K. Misra, Puspendu Sahu, Juho Talonen, L. Pentti Karjalainen
• Keywords: Athermal Martensite, Austenitic Cr-Mn Stainless Steel, Dilatometry, Dislocation Density, Isothermal Martensite, Microhardness, Strain-Induced Martensite, Tempering

References

[1] D.S. Leem, Y.D. Lee, J.H. Jun and C.S. Choi: Scripa Mater. Vol. 45 (2001), p.767

[2] S.J. Lee, Y.M. Park and Y.K. Lee: Mater. Sci. Eng. A Vol. A515 (2009), p.32

[3] M.C. Somani, P. Juntunen, L.P. Karjalainen, R.D.K. Misra and A. Kyröläinen: Metall. Mater. Trans. A Vol. 40A (2009), p.729

[4] A. Kisko, A. Hamada, L.P. Karjalainen and J. Talonen, in: 1st Int. Conf. on High Manganese Steel, Seoul (2011).

[5] P.L. Mongonon and G. Thomas: Metall. Trans. Vol. 1 (1970), p.1587

[6] K.B. Guy, E.P. Butler and D.R.F. West: Met. Sci. Vol. 17 (1983), p.167

[7] R. Montanari: Mater. Lett. Vol. 8 (1989), p.297

[8] S.S.M. Tavares, D. Fruchart and S. Miraglia: J. Alloys Compd. Vol. 307 (2000), p.311

[9] S.S.M. Tavares, J.M. Neto, M.R. da Silva, I.F. Vasconcelos and H.F.G. de Abreu: Mater. Charac. Vol. 59 (2008), p.901

[10] L.D. Hollomon and L.D. Jaffe: Trans. Amer. Inst. Min. Met. Engrs. Vol. 162 (1945), p.223

[11] T. Tsuchiyama: J. Jpn. Soc. Heat. Treat. Vol. 42 (2002), p.163

[12] J. Talonen, P. Aspegren and H. Hanninen: Mater. Sci. Tech. Vol. 20 (2004), p.1506

[13] T.F.A. Santos, M.S. Andrade and A.L.R. Castro: R. Esc. Minas Vol. 62 (2009), p.53

[14] A. Shirazi, G. Miyamoto, S. Hossein Nedjad, H. Ghasemi-Nanesa, M. Nili Ahdadabadi and T. Furuhara: J. Alloys Compd. (2012), in press

DOI: 10.1016/j.jallcom.2012.02.015

[15] M.C. Somani, D.A. Porter, L.P. Karjalainen and D.K. Misra: MS&T, Pittsburgh (2012).

[16] A.F. Padilha, R.L. Plaut and P.R. Rios: ISIJ Int. Vol. 43 (2003), p.135

[17] N.C. Popa: J. Appl. Cryst. Vol. 31 (1998), p.176

[18] G.K. Williamson and R.E. Smallman: Phil. Mag. Vol. 1 (1956), p.34

[19] P. Sahu, A.S. Hamada, R.N. Ghosh and L.P. Karjalainen: Metall. Mater. Trans. A Vol. 38A (2007), p. (1991)

[20] T. Shintani and Y. Murata: Acta Mater. Vol. 59 (2011), p.4314

[21] J. Talonen: Effect of strain-induced α´-martensite transformation on mechanical properties of metastable austenitic stainless steels (Ph.D. Thesis, Helsinki University of Technology, Finland 2007)

[22] D. Kim, J.G. Speer and B.C. De Cooman: Metall. Mater. Trans. A Vol. 42A (2011), p.1575
