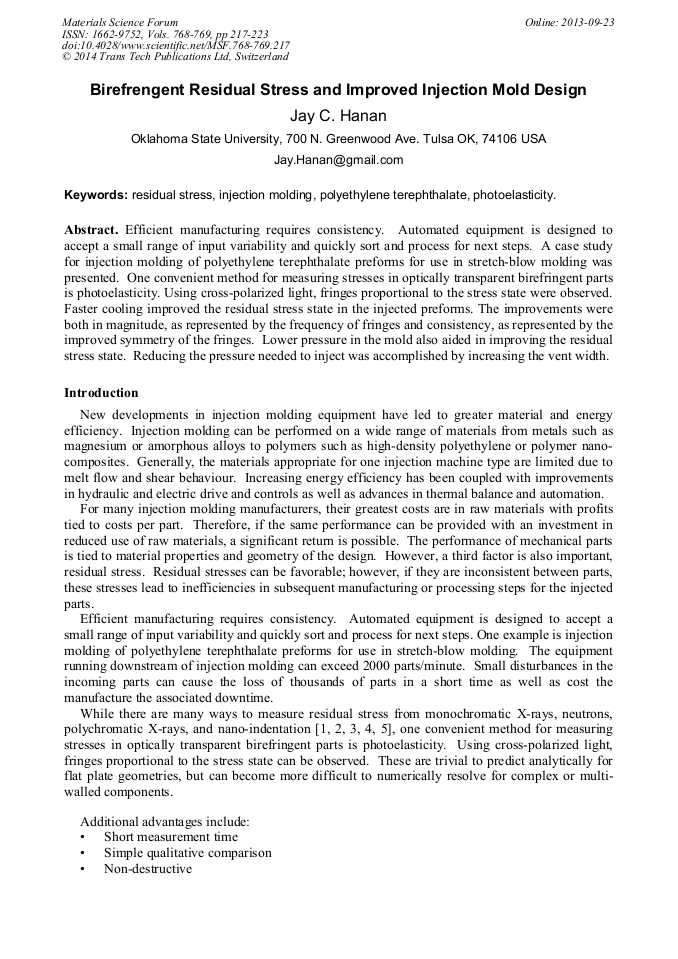

Birefrengent Residual Stress and Improved Injection Mold Design

Abstract:

Efficient manufacturing requires consistency. Automated equipment is designed to accept a small range of input variability and quickly sort and process for next steps. A case study for injection molding of polyethylene terephthalate preforms for use in stretch-blow molding was presented. One convenient method for measuring stresses in optically transparent birefringent parts is photoelasticity. Using cross-polarized light, fringes proportional to the stress state were observed. Faster cooling improved the residual stress state in the injected preforms. The improvements were both in magnitude, as represented by the frequency of fringes and consistency, as represented by the improved symmetry of the fringes. Lower pressure in the mold also aided in improving the residual stress state. Reducing the pressure needed to inject was accomplished by increasing the vent width.

• Periodical: Materials Science Forum (Volumes 768-769)
• Pages: 217-223
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.768-769.217
• Online since: September 2013
• Authors: Jay C. Hanan
• Keywords: Injection Mold, Photoelasticity, Polyethylene Terephthalate, Residual Stress

References

[1] J.C. Hanan, C.C. Aydiner, E. Üstündag, G.A. Swift, S.K. Kaldor and I.C. Noyan, Characterization of Fiber/Matrix Interfaces Using X-Ray Microtopography, Mater. Sci. Forum 404-407 (2002) 919-924.

DOI: 10.4028/www.scientific.net/msf.404-407.919

[2] C.C. Aydiner, E. Ustündag, B. Clausen, J.C. Hanan, R.A. Winholtz, M.A.M. Bourke, A. Peker, Residual stresses in a bulk metallic glass–stainless steel composite, Mater. Sci. Eng. A 399 (2005) 107-113.

DOI: 10.1016/j.msea.2005.02.031

[3] J.C. Hanan, H. Bale, J.E. Smay, Y.S. Chu, F. DeCarlo, Combined Diffraction and Tomography Analyzing Controlled Residual Stress in Solid Freeform Fabrication, Synchrotron Radiation in Materials Science (2006).

[4] H.A. Bale, J.C. Hanan, N. Tamura, M. Kunz, P. Coelho, V. Thompson, Interface Residual Stresses in Dental Zirconia Using Laue Micro-Diffraction, Materials Science Forum (2009).

[5] Y. Zhang, M. Allahkarami, J.C. Hanan, Measuring residual stress in ceramic zirconia-porcelain dental crowns by nanoindentation, Journal of the Mechanical Behaviour of Biomedical Materials, JMBBM-D-11-00333R1 (2012).

DOI: 10.1016/j.jmbbm.2011.11.006

[6] F.W. Sears, Principles of Physics Series: Optics, Addison Wesley Press, Inc., 3rd ed., 1949, pp.167-202.

[7] J. Valasek, Introduction to theoretical and experimental optics, John Wiley and Sons Inc, 1st ed., 1949, pp.196-241.

[8] J.W.D. Felix Zandman, Salomon Render, Photoelastic Coatings, Science Press, 1st ed., 1977, pp.1-30.

[9] P.S. Theocaris, Moir Fringes in Strain Analysis, Pergamon Press, 1st ed., 1969, pp.147-177.

[10] H.B. Daly, B. Sanschagrin, K.T. Nguyen, K.C. Cole, Effect of Polymer Properties on the Structure of Injection-Molded Parts, Polymer Engineering and Science 39(9) (1999) 1736-1751.

DOI: 10.1002/pen.11568

[11] B. Chukwuemeka, O. Onyemaechi, Y.W. Leong, H. Hamada, Effects of hairline cracks on the fracture behavior of polyethylene terephthalate injection moldings, Polymer Journal 42 (2010) 887-895.

DOI: 10.1038/pj.2010.86

[12] S. Kulkarni Optimizing Venting in Injection Molds, SPE presentation of Robust Process Development and Scientific Molding (2010) CA.
