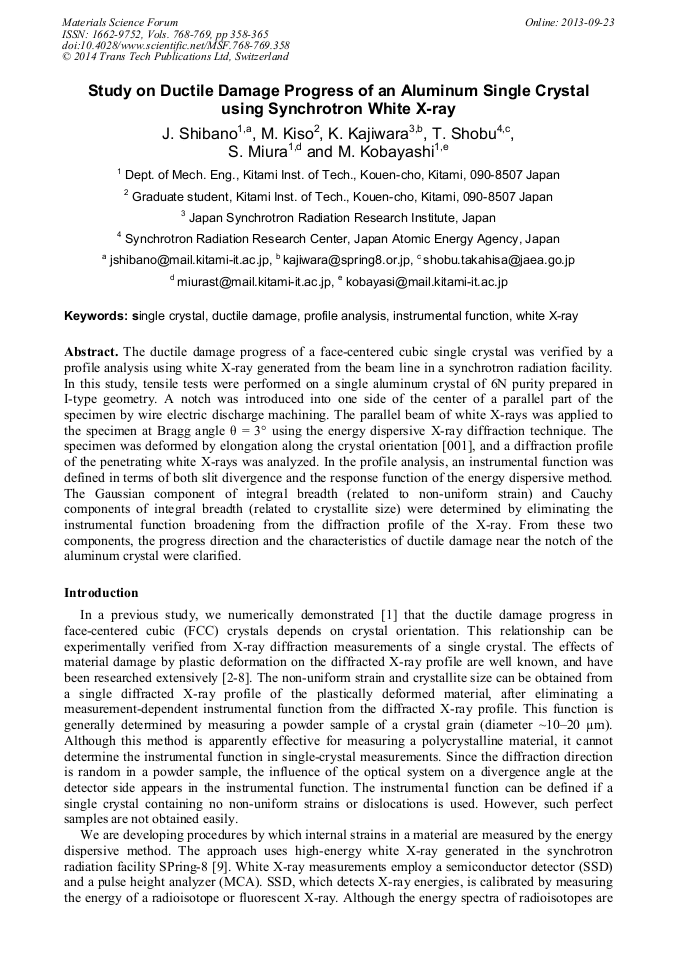

Study on Ductile Damage Progress of Aluminum Single Crystal Using Synchrotron White X-Ray

Abstract:

A ductile damage progress of FCC single crystal was verified by a profile analysis using white X-ray obtained in BL28B2 beam line of SPring-8. In this study, an aluminum single crystal of the purity 6N was used as a specimen prepared in I-type geometry for tensile test. A notch was introduced into one side of the center of a parallel part of the specimen by the wire electric discharge machining. White X-ray, which has 100 microns in height and 200 microns in width, was incident into the specimen on the Bragg angle θ of 3 degrees using energy dispersive X-ray diffraction technique. The specimen was deformed by elongation along crystal orientation [001], and a diffraction profile of the white X-ray which penetrated it was analyzed. In profile analysis, an instrumental function was defined in consideration both of a divergence by a slit and a response function peculiar to the energy dispersive method. The Gauss component of integral breadth related to non-uniform strain and the Cauchy component of integral breadth related to crystallite size were determined by eliminating the broadening by the instrumental function from the diffraction profile of white X-ray. As a result, the direction of progress and the characteristics of ductile damage near the notch of the aluminum single crystal were clarified from the Gauss component and the Cauchy component of integral width of the single diffraction profile.

• Periodical: Materials Science Forum (Volumes 768-769)
• Pages: 358-365
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.768-769.358
• Online since: September 2013
• Authors: Junichi Shibano, Minoru Kiso, Kentaro Kajiwara, Takahisa Shobu, Setsuo Miura, Michiaki Kobayashi
• Keywords: Ductile Damage, Instrumental Function, Profile Analysis, Single Crystal, White X-Ray

References

[1] Y. Tsuchiya, S. Miura, J. Shibano, Y. Ozaki and M. Kobayashi, Crystal orientation dependence of deformation localization and ductile fracture in FCC Bi-crystal materials, Transactions of the Japan Society of Mechanical Engineers Series A 77-780 (2011).

DOI: 10.1299/kikaia.77.1199

[2] G.K. Williamson and R.E. Smallman, Dislocation densities in some annealed and cold-worked metals from measurements on the X-ray Debye-Scherrer spectrum, Philos. Mag. 1 (1956) 34-46.

DOI: 10.1080/14786435608238074

[3] J.I. Langford, A rapid method for analyzing the breadths of diffraction and spectral lines using the Voigt function, J. Appl. Cryst. 11 (1978) 10-14.

DOI: 10.1107/s0021889878012601

[4] T.H. Keijser, J.I. Langford, E.J. Mittemeijer and A.B.P. Vogels, Use of the Voigt function in a single-line method for the analysis of X-ray diffraction line broadening, J. Appl. Cryst. 15 (1982) 308-314.

DOI: 10.1107/s0021889882012035

[5] T.H. Keijser, E.J. Mittemeijer and H.C.F. Rozendaal, The determination of crystallite-size and lattice-strain parameters in conjunction with the profile-refinement method for the determination of crystal structures, J. Appl. Cryst. 16 (1983).

DOI: 10.1107/s0021889883010493

[6] T. Ungar, S. Ott, P.G. Sanders, A. Borbely and J.R. Weertman, Dislocations, grain size and planar faults in nanostructured copper determined by high resolution X-ray diffraction and a new procedure of peak profile analysis, Acta. Mater. 46-10 (1998).

DOI: 10.1016/s1359-6454(98)00001-9

[7] T. Ungar, Dislocation densities, arrangements and character from X-ray diffraction experiments, Materials Science and Engineering A309-310 (2001) 14-22.

DOI: 10.1016/s0921-5093(00)01685-3

[8] E. Schafler, M. Zehetbauer and T. Ungar, Measurement of screw and edge dislocation density by means of X-ray Bragg profile analysis, Materials Science and Engineering A319-321 (2001) 220-223.

DOI: 10.1016/s0921-5093(01)00979-0

[9] J. Shibano, K. Kajiwara, K. Kiriyama, T. Shobu, K. Suzuki, T. Arai, S. Miura and M. Kobayashi, Study on computerized tomography and strain mapping near the internal crack tip of steel bar using synchrotron white X-ray, Advances in X-ray Analysis 52 (2009).

DOI: 10.2472/jsms.58.596

[10] N. Tsoulfanidis, B.W. Whering and M.E. Wyman, The use of an analytical response function for unfolding beta spectra, Nuclear Instruments and Methods 73 (1969) 98-102.

DOI: 10.1016/0029-554x(69)90143-8

[11] T. Fukamachi, S. Hosoya and O. Terasaki, The precision of interplanar distances measured by an energy-dispersive diffractometer, J. Appl. Cryst. 6-117 (1973) 117-122.

DOI: 10.1107/s0021889873008265
