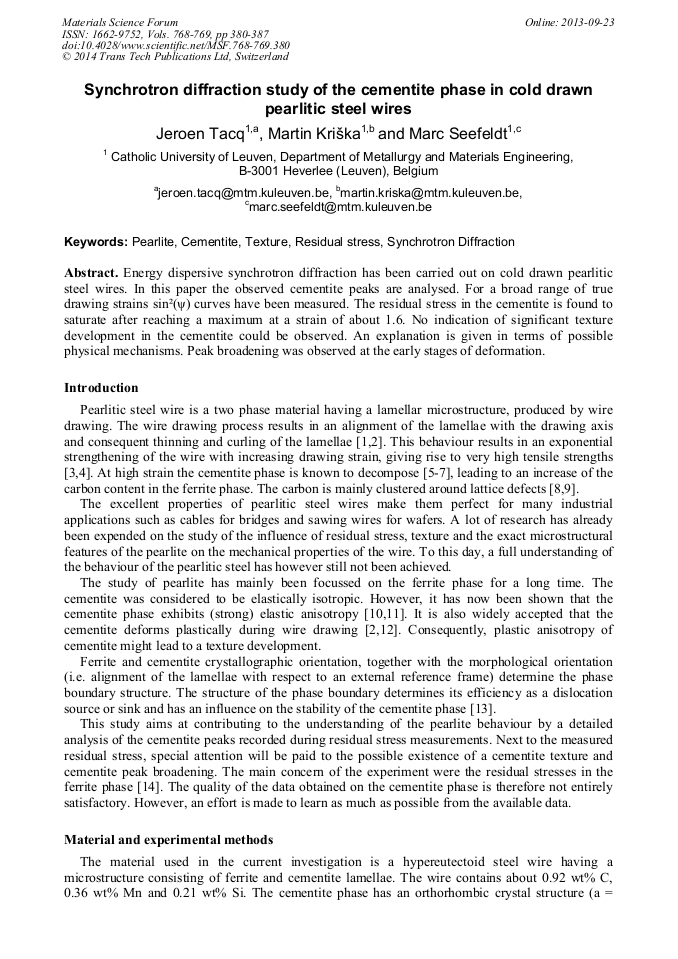

Synchrotron Diffraction Study of the Cementite Phase in Cold Drawn Pearlitic Steel Wires

Abstract:

Energy dispersive synchrotron diffraction has been carried out on cold drawn pearlitic steel wires. In this paper the observed cementite peaks are analysed. For a broad range of true drawing strains sin²(Ψ) curves have been measured. The residual stress in the cementite is found to saturate after reaching a maximum at a strain of about 1.6. No indication of significant texture development in the cementite could be observed. An explanation is given in terms of possible physical mechanisms. Peak broadening was observed at the early stages of deformation.

• Periodical: Materials Science Forum (Volumes 768-769)
• Pages: 380-387
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.768-769.380
• Online since: September 2013
• Authors: Jeroen Tacq, Martin Kriška, Marc Seefeldt
• Keywords: Cementite, Pearlite, Residual Stress, Synchrotron Diffraction, Texture

References

[1] W.F. Hosford Jr., Trans. Metall. Soc. AIME 230 (1964) 12-15.

[2] G. Langford, Metallurgical Trans. A 8 (1977) 861-875.

[3] J. Gil Sevillano, Journal de Physique III 1 (1991) 967-988.

[4] J. Gil Sevillano, A twist on heavily drawn wires, Mordica Lecture, Wire Expo (2010).

[5] V.N. Gridnev, V.G. Gavrilyuk, Physics of Metals 4 (1982) 531-551.

[6] X. Sauvage, J. Copreaux, F. Danoix, D. Blavette, Philosophical Magazine A 80 (2000) 781-796.

DOI: 10.1080/01418610008212082

[7] J. Languillaume, G. Kapelski, B. Baudelet, Acta Mater. 45 (1997) 1201-1212.

[8] H.G. Read, W.T. Reynolds Jr., K. Hono, T. Tarui, Scripta Mater. 37 (1997) 1221-1230.

[9] Y.J. Li, P. Choi, C. Borchers, S. Westkamp, S. Goto, D. Raabe, R. Kirchheim, Acta Mater. 59 (2011) 3965-3977.

DOI: 10.1016/j.actamat.2011.03.022

[10] M. Nikolussi, S.L. Shang, T. Gressmann, A. Leineweber, E.J. Mittemeijer, Y. Wang, Z. -K. Liub, Scripta Mater. 59 (2008) 814-817.

DOI: 10.1016/j.scriptamat.2008.06.015

[11] J. Alkorta, J. Gil Sevillano, Journal of Materials Research 27 (2011) 45-52.

[12] J. Gil Sevillano, Mater. Sci. Eng. 21 (1975) 221-225.

[13] W.C. Chiou Jr., E.A. Carter, Surface Science 530 (2003) 87-100.

[14] M. Kriška, J. Tacq, M. Seefeldt, In these proceedings.

[15] Ch. Genzel, I.A. Denks, J. Gibmeier, M. Klaus, G. Wagener, Nucl. Instrum. Methods in Phys. Res. A 578 (2007) 23-33.

[16] M. Seefeldt, M. Kriška, J. Tacq, In these proceedings.

[17] M.A. Weisser, A.D. Evans, S. Van Petegem, S.R. Holdsworth, H. Van Swygenhoven, Acta Mater. 59 (2011) 4448-4457.

DOI: 10.1016/j.actamat.2011.03.068

[18] D.F. Rendle, Journal of Forensic Sciences 26 (1981) 343-351.

[19] E.C. Oliver, M.R. Daymond, P.J. Withers, Acta Mater. 52 (2004) 1937-(1951).

[20] T. Hanabusa, J. Fukura, H. Fujiwara, JSME 12 (1969) 931-939.

[21] K. Van Acker, J. Root, P. Van Houtte, E. Aernoudt, Acta Mater. 44 (1996) 4039-4049.

DOI: 10.1016/s1359-6454(96)00051-1

[22] A. Walentek, X. Hu, M. Seefeldt, P. Van Houtte, Materials Science Forum 495-497 (2005) 369-374.

DOI: 10.4028/www.scientific.net/msf.495-497.369

[23] S. Goto, R. Kirchheim, T. Al-Kassab, C. Borchers, Trans. Nonferrous Met. Soc. China 17 (2007) 1129-1138.

DOI: 10.1016/s1003-6326(07)60238-6
