The Measuring Method of Uniaxial Force Induced Error on CNC Machine Tool

Abstract:

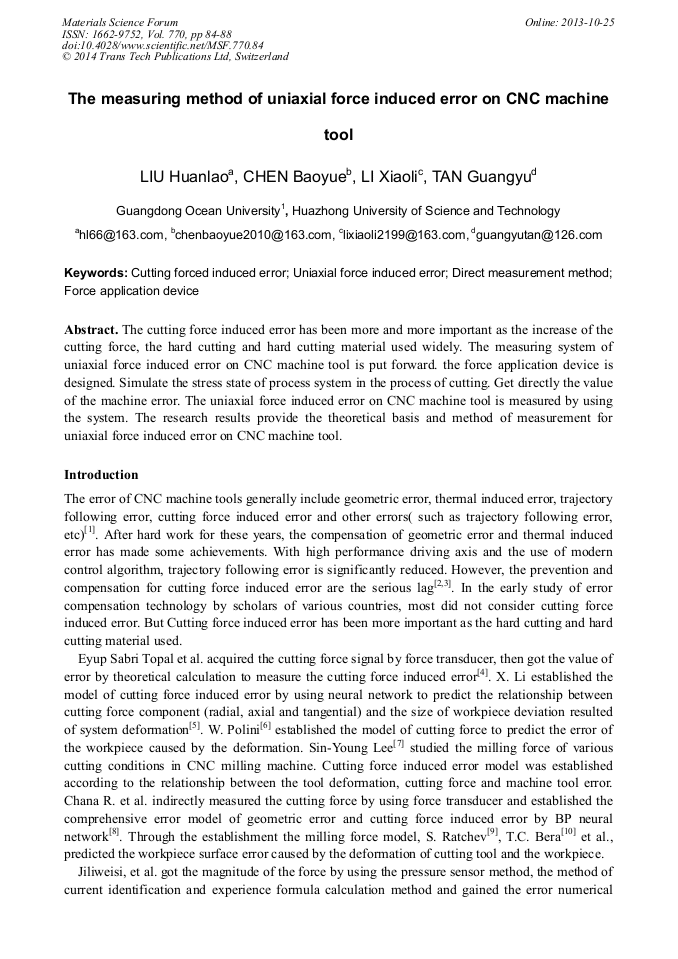

The cutting force induced error has been more and more important as the increase of the cutting force, the hard cutting and hard cutting material used widely. The measuring system of uniaxial force induced error on CNC machine tool is put forward. the force application device is designed. Simulate the stress state of process system in the process of cutting. Get directly the value of the machine error. The uniaxial force induced error on CNC machine tool is measured by using the system. The research results provide the theoretical basis and method of measurement for uniaxial force induced error on CNC machine tool.

• Periodical: Materials Science Forum (Volume 770)
• Pages: 84-88
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.770.84
• Online since: October 2013
• Authors: Huan Lao Liu, Bao Yue Chen, Xiao Li Li, Guang Yu Tan
• Keywords: Cutting Forced Induced Error, Direct Measurement Method, Force Application Device, Uniaxial Force Induced Error
