Can Young’s Modulus of Metallic Alloys Change with Plastic Deformation?

Article Preview

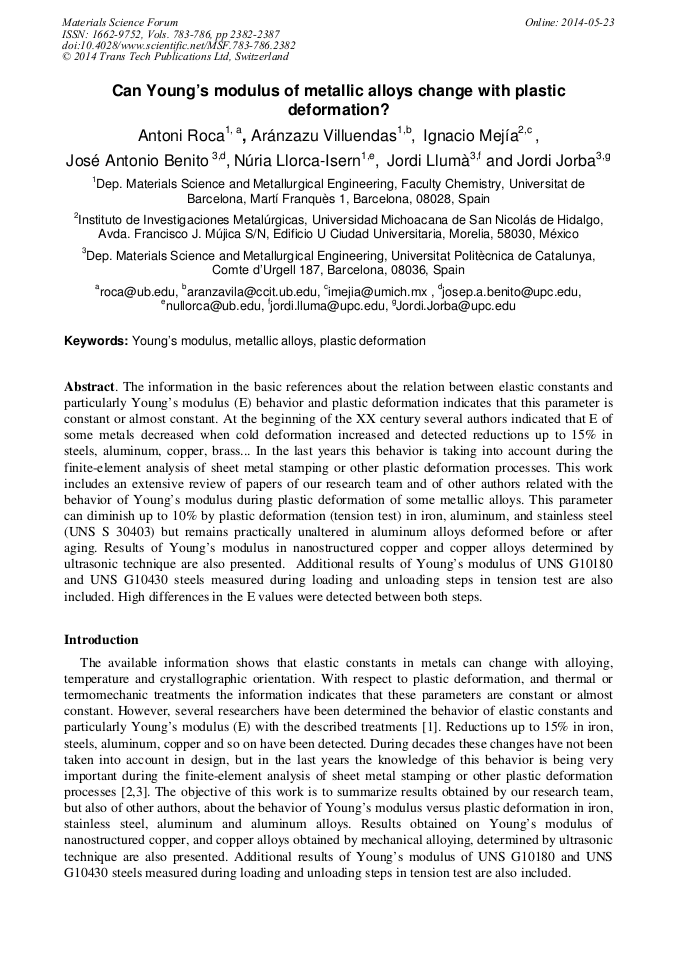

Abstract:

The information in the basic references about the relation between elastic constants and particularly Young’s modulus (E) behavior and plastic deformation indicates that this parameter is constant or almost constant. At the beginning of the XX century several authors indicated that E of some metals decreased when cold deformation increased and detected reductions up to 15% in steels, aluminum, copper, brass... In the last years this behavior is taking into account during the finite-element analysis of sheet metal stamping or other plastic deformation processes. This work includes an extensive review of papers of our research team and of other authors related with the behavior of Young’s modulus during plastic deformation of some metallic alloys. This parameter can diminish up to 10% by plastic deformation (tension test) in iron, aluminum, and stainless steel (UNS S 30403) but remains practically unaltered in aluminum alloys deformed before or after aging. Results of Young’s modulus in nanostructured copper and copper alloys determined by ultrasonic technique are also presented. Additional results of Young’s modulus of UNS G10180 and UNS G10430 steels measured during loading and unloading steps in tension test are also included. High differences in the E values were detected between both steps.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volumes 783-786)

Pages:

2382-2387

Citation:

Online since:

May 2014

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] J.A. Benito, J.M. Manero, J. Jorba, A. Roca, Change of Young's modulus of cold deformed pure iron in a tensile test, Metall. Mat. Trans. A, 36A (2005) 3317-3324.

DOI: 10.1007/s11661-005-0006-6

Google Scholar

[2] A. Taherizadeh, A. Ghaei, D.E. Green, W.J. Altenhof, Finite element simulation of springback for a channel draw process with drawbead using different hardening models, Int. J. Mech. Sci., 51, 4 (2009), 314-325.

DOI: 10.1016/j.ijmecsci.2009.03.001

Google Scholar

[3] H.Y. Yu, Variation of elastic modulus during plastic deformation and its influence on springback, Mat. Design, 30, 3 (2009) 846-850.

DOI: 10.1016/j.matdes.2008.05.064

Google Scholar

[4] K. Yamaguchi, H. Adachi, N. Takakura, Effects of plastic strain path on Young's modulus of sheet metals, Met. Mat. 4, 3 (1998) 420-425.

DOI: 10.1007/bf03187802

Google Scholar

[5] J.A. Benito, J. Jorba, A. Roca, Change of elastic constants of pure iron deformed by cold rolling, Mater. Sci. Forum, 426-432 (2003) 4435-4440.

DOI: 10.4028/www.scientific.net/msf.426-432.4435

Google Scholar

[6] F. Morestin, M. Boivin, On the necessity of taking into account the variation in the Young's modulus with plastic strain in elastic-plastic software, Nucl. Eng. Design, 162, (1996) 107-116.

DOI: 10.1016/0029-5493(95)01123-4

Google Scholar

[7] J. Jorba, R. Pons, J.A. Benito, A. Roca, Change of elastic constants of pure iron and stainless steel deformed by drawing, Special Issue J. Mater. Processing Technol. 117, 3 (2001) Proc. Thermec 2000, NV, CD ROM.

Google Scholar

[8] M. Lucena, J.A. Benito, A. Roca, J. Jorba, Changes of elastomechanic constants of pure aluminum cold deformed by tension test, Rev Metal Madrid, 34 (1998), 310-313.

Google Scholar

[9] I. Isarn: Master Thesis, Changes on the pure aluminum stifness cold deformed by tension test and its evolution with time, Universitat de Barcelona, Barcelona, Spain, (2012).

Google Scholar

[10] A. Villuendas, J. Jorba, A. Roca, The Role of Precipitates in the Behavior of Young's Modulus in Aluminum Alloys: submitted to Metallurgical and Materials Transactions A (2013).

DOI: 10.1007/s11661-014-2328-8

Google Scholar

[11] A. Villuendas, A. Roca, J. Jorba, Change of Young's modulus of cold-deformed aluminum AA1050 and of AA2024 (T65): A comparative study, Mater. Sci. Forum, 539-543 (2007) 293-298.

DOI: 10.4028/www.scientific.net/msf.539-543.293

Google Scholar

[12] N.F. Mott, A theory of work-hardening of metal crystals, Phil. Mag., 43, 346 (1952) 1151-1178.

Google Scholar

[13] G.E. Fugere, L. Riester, M. Ferber, J.R. Wertman, R.W. Siegel, Young's modulus of nanocrystalline Fe measured by nanoindentation, Mat. Sci. and Eng. A, 204 (1995) 1-6.

Google Scholar

[14] T.D. Shen, C.C. Koch, T.Y. Tsui, G.M. pharr, On the elastic moduli of nanocrystalline Fe, Cu and Cu-Ni alloys prepared by mechanical milling/alloying, J. Mater. Res. 10, 11 (1995) 2892-2896.

DOI: 10.1557/jmr.1995.2892

Google Scholar

[15] A. Roca, J. Llumà, J. Jorba, N. Llorca-Isern, Measurements of elastic constants on nanostructured iron and copper, Mater. Sci. Forum, 638-642 (2010) 1772-1777.

DOI: 10.4028/www.scientific.net/msf.638-642.1772

Google Scholar

[16] N. Llorca-Isern, C. Artieda. Private Communication (2013).

Google Scholar

[17] Y.L. Liu, Y.X. Zhu, W.O. Dong, H. Yang, Springback prediction model considering the variable Young's modulus for the bending rectangular 3A21 tube, J. Mater. Eng. Perform., 22, 1 (2013) 9-16.

DOI: 10.1007/s11665-012-0227-y

Google Scholar
