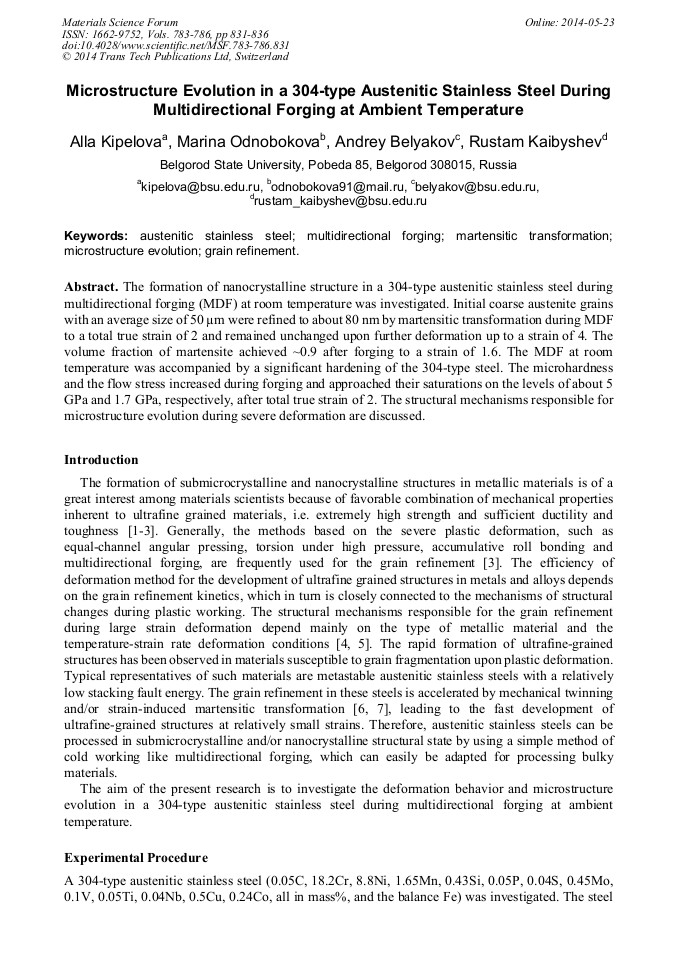

Microstructure Evolution in a 304-Type Austenitic Stainless Steel during Multidirectional Forging at Ambient Temperature

Abstract:

The formation of nanocrystalline structure in a 304-type austenitic stainless steel during multidirectional forging (MDF) at room temperature was investigated. Initial coarse austenite grains with an average size of 50 μm were refined to about 80 nm by martensitic transformation during MDF to a total true strain of 2 and remained unchanged upon further deformation up to a strain of 4. The volume fraction of martensite achieved ~0.9 after forging to a strain of 1.6. The MDF at room temperature was accompanied by a significant hardening of the 304-type steel. The microhardness and the flow stress increased during forging and approached their saturations on the levels of about 5 GPa and 1.7 GPa, respectively, after total true strain of 2. The structural mechanisms responsible for microstructure evolution during severe deformation are discussed.

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 831-836
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.831
• Online since: May 2014
• Authors: Alla Kipelova*, Marina Odnobokova, Andrey Belyakov, Rustam Kaibyshev
• Keywords: Austenitic Stainless Steel, Grain Refinement, Martensitic Transformation (MT), Microstructure Evolution, Multidirectional Forging

References

[1] R.Z. Valiev, R.K. Islamgaliev, I.V. Alexandrov, Bulk nanostructured materials from severe plastic deformation, Prog. Mater. Sci. 45 (2000) 103-189.

DOI: 10.1016/s0079-6425(99)00007-9

[2] Y. Kimura, T. Inoue, F. Yin, K. Tsuzaki, Inverse temperature dependence of toughness in an ultrafine grain-structure steel, Science 320 (2008) 1057-1060.

DOI: 10.1126/science.1156084

[3] Y. Estrin, A. Vinogradov, Extreme grain refinement by severe plastic deformation: a wealth of challenging science, Acta Mater. 61 (2013) 782-817.

DOI: 10.1016/j.actamat.2012.10.038

[4] A. Belyakov, Y. Kimura, K. Tsuzaki, Microstructure evolution in dual phase stainless steel during severe deformation, Acta Mater. 54 (2006) 2521-2532.

DOI: 10.1016/j.actamat.2006.01.035

[5] C. Kobayashi, T. Sakai, A. Belyakov, H. Miura, Ultrafine grain development in copper during multidirectional forging at 195K, Philos. Mag. Lett. 87 (2007) 751-766.

DOI: 10.1080/09500830701566016

[6] Y. Nakao, H. Miura, Nano-grain evolution in austenitic stainless steel during multi-directional forging, Mater. Sci. Eng. A 528 (2011) 1310-1317.

DOI: 10.1016/j.msea.2010.10.018

[7] M. Tikhonova, Y. Kuzminova, A. Belyakov, R. Kaibyshev, Nanocrystalline S304H austenitic stainless steel processed by multiple forging, Rev. Adv. Mater. Sci. 31 (2012) 68-73.

[8] M. Zehetbauer, Cold work hardening in stages IV and V of f. c. c. metals – II. Model fits and physical results, Acta Mater. 41 (1993) 589-599.

DOI: 10.1016/0956-7151(93)90089-b

[9] N. Nakada, H. Ito, Y. Matsuoka, T. Tsuchiyama, S. Takaki, Deformation-induced martensitic transformation behaviour in cold-rolled and cold-drawn type 316 stainless steels, Acta Mater. 58 (2010) 895-903.

DOI: 10.1016/j.actamat.2009.10.004

[10] I. Shakhova, V. Dudko, A. Belyakov, K. Tsuzaki, R. Kaibyshev, Effect of large strain cold rolling and subsequent annealing on microstructure and mechanical properties of an austenitic stainless steel, Mater. Sci. Eng. A 545 (2012) 176-186.

DOI: 10.1016/j.msea.2012.02.101
