HomeMaterials Science ForumMaterials Science Forum Vol. 789Effect of Additive on the Performance of PVDF...

Effect of Additive on the Performance of PVDF Membrane via Non-Solvent Induced Phase Separation

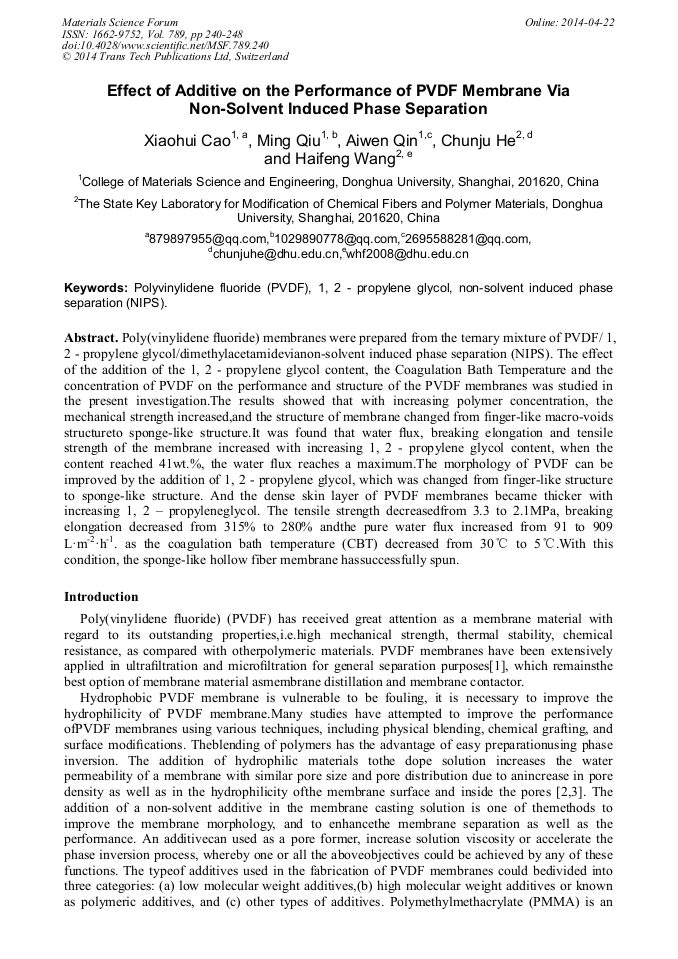

Article Preview

Abstract:

Poly (vinylidene fluoride) membranes were prepared from the ternary mixture of PVDF/ 1, 2 - propylene glycol/dimethylacetamidevianon-solvent induced phase separation (NIPS). The effect of the addition of the 1, 2 - propylene glycol content, the Coagulation Bath Temperature and the concentration of PVDF on the performance and structure of the PVDF membranes was studied in the present investigation.The results showed that with increasing polymer concentration, the mechanical strength increased,and the structure of membrane changed from finger-like macro-voids structureto sponge-like structure.It was found that water flux, breaking elongation and tensile strength of the membrane increased with increasing 1, 2 - propylene glycol content, when the content reached 41wt.%, the water flux reaches a maximum.The morphology of PVDF can be improved by the addition of 1, 2 - propylene glycol, which was changed from finger-like structure to sponge-like structure. And the dense skin layer of PVDF membranes became thicker with increasing 1, 2 – propyleneglycol. The tensile strength decreasedfrom 3.3 to 2.1MPa, breaking elongation decreased from 315% to 280% andthe pure water flux increased from 91 to 909 L·m^-2·h^-1. as the coagulation bath temperature (CBT) decreased from 30°C to 5°C.With this condition, the sponge-like hollow fiber membrane hassuccessfully spun.

You might also be interested in these eBooks

Nano-Scale Materials, Materials Processing and Genomic Engineering

Info:

Periodical:

Materials Science Forum (Volume 789)

Pages:

240-248

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.789.240

Citation:

Cite this paper

Online since:

April 2014

Authors:

Xiao Hui Cao, Ming Qiu, Ai Wen Qin, Chun Ju He, Hai Feng Wang

Keywords:

1, 2 - Propylene Glycol, Non-Solvent Induced Phase Separation (NIPS), Polyvinylidene Fluoride (PVDF)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] A. Bottino, G. Capannelli, A. Comite: J. Memb. Sci. Vol. 273(2006), p.20.

[2] B. Jung, J. Membr. Sci. 229 (2004) 129–136.

[3] J. Marchese, M. Ponce, N.A. Ochoa, P. Pr´ adanos, L. Palacio, A.Hern´ andez, J. Membr. Sci. 211 (2003) 1–11.

[4] S.P. Nunes, K.V. Peinemann, J. Membr. Sci. 73 (1992) 25–35.

[5] N.A. Ochoa, M. Masuelli, J. Marchese, J.Membr. Sci. 226 (2003) 203–211.

[6] M. Pralay, J. Polym. 39 (1998) 413–421.

[7] H.J. Mueller, P.EP 407900, 1991-01-16.

[8] B.S. Kim, J. Pollimo 20 (1996) 297–304.

[9] L. Wang Zhan, W. Yaw en, Shumei, et al., J. Membr.Sci. 6 (2002) 4–8.

[10] Fu Liu,N.AwanisHashim,Yutie Liu M.R. Moghareh Abed, K. Li:J.Memb.Sci.Vol.;375(2011),p.2.

[11] W.Y. Chuang, T.H. Young, W.Y. Chiu: J. Memb. Sci. Vol.172 (2000),p.241.

[12] D.R. Lloyd, K.E. Kinzer H.S. Tseng: J. Memb. Sci. Vol.52 (1990), p.240.

[13] Li-Yun Yu, Zhen-Liang Xua, Hong-Mei Shen,HuYang: J. Memb. Sci. Vol.337 (2009),p.257.

[14] M. Amirilargani, T. Mohammadi: Polym. Adv. Technol Vol. 22 (2011),p.962.

[15] M. Khayet, T. Matsuura:Industrial EngineeringChemistry Research .Vol. 40 (2001),p.5712.

[16] M.Khayet C.Y. Feng, K.C. Khulbe, T. Matsuura:Desalination.Vol.48(2002),p.322.

[17] D. Wang, K. Li, W.K. Teo: J. Memb. Sci. Vol.178 (2000) ,p.14.

[18] E.Fontananova J.C. Jansen,A.Cristiano,E.Curcio,E.Drioli:Desalination.Vol.192 (2006),p.191.

[19] D.J. Lin, C.L. Chang, F.M. Huang, L.P. Cheng:Polymer. Vol.44 (2003),p.414.

[20] M.L. Yeow, Y.T. Liu, K. Li: J. Memb. Sci. Vol.258 (2005), p.16.

[21] D. Wang, K. Li, W.K. Teo: J. Memb. Sci. Vol.163 (1999), p.212.

[22] L.P. Cheng, Macromolecules 32 (20) (1999) 6668–6674.

[23] M.L. Yeow, Y.T. Liu, K. Li, Journal of Applied Polymer Science 92 (3) (2004) 1782–1789.

[24] X. Wang, L. Zhang, D. Sun, Q. An, H. Chen, Journal of Applied Polymer Science 110 (3) (2008) 1656–1663.

[25] S.P. Deshmukh, K. Li,Journal of Membrane Science 150 (1) (1998) 75–85.

[26] M. Khayet, C.Y. Feng, K.C. Khulbe, T. Matsuura,Polymer 43 (14) (2002) 3879–3890.

DOI: 10.1016/s0032-3861(02)00237-9

[27] X. Wang, L. Zhang, D. Sun, Q. An, H. Chen,Journal of Applied Polymer Science 110 (3) (2008) 1656–1663.

[28] D. Wang, K. Li, W.K. Teo, Journal of MembraneScience 178 (1–2) (2000) 13–23.

[29] J. Kong, K. Li, Journal of Applied Polymer Science 81 (2001) 1643–1653.

[30] E. Fontananova, J.C. Jansen, A. Cristiano, E. Curcio, E. Drioli, Desalination 192 (1–3) (2006) 190–197.

DOI: 10.1016/j.desal.2005.09.021

[31] P. Sukitpaneenit, T.S. Chung, Journal of Membrane Science 340(1–2) (2009) 192–205.
