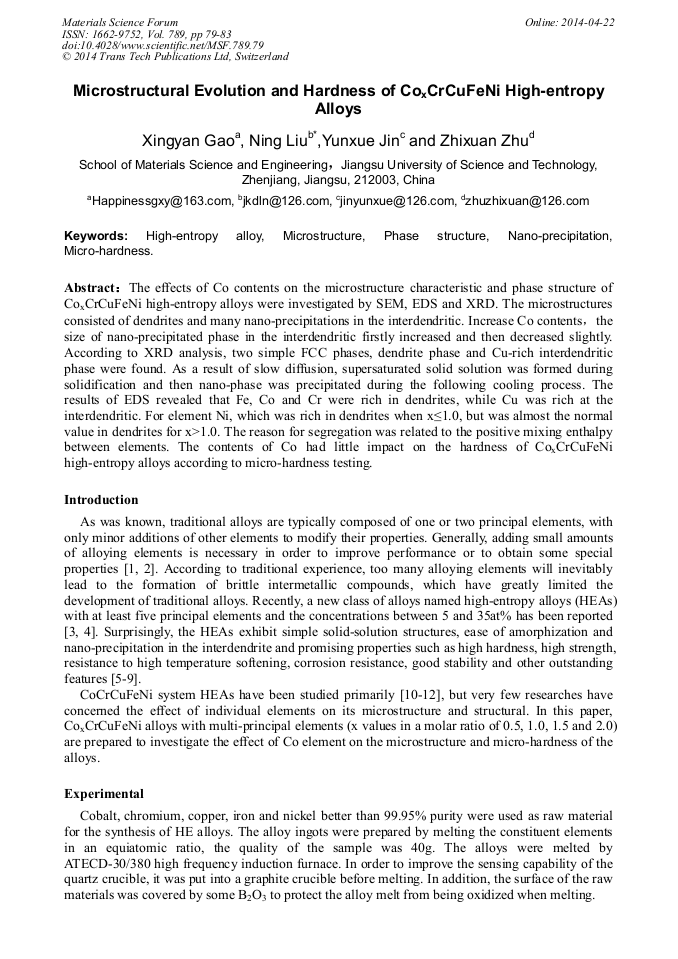

Microstructural Evolution and Hardness of Co_xCrCuFeNi High-Entropy Alloys

Abstract:

The effects of Co contents on the microstructure characteristic and phase structure of Co_xCrCuFeNi high-entropy alloys were investigated by SEM, EDS and XRD. The microstructures consisted of dendrites and many nanoprecipitations in the interdendritic. Increase Co contents,the size of nanoprecipitated phase in the interdendritic firstly increased and then decreased slightly. According to XRD analysis, two simple FCC phases, dendrite phase and Cu-rich interdendritic phase were found. As a result of slow diffusion, supersaturated solid solution was formed during solidification and then nanophase was precipitated during the following cooling process. The results of EDS revealed that Fe、Co and Cr were rich in dendrites, while Cu was rich at the interdendritic. For element Ni, which was rich in dendrites when x≤1.0, but was almost the normal value in dendrites for x>1.0. The reason for segregation was related to the positive mixing enthalpy between elements. The contents of Co had little impact on the hardness of Co_xCrCuFeNi high-entropy alloys according to micro-hardness testing.

• Periodical: Materials Science Forum (Volume 789)
• Pages: 79-83
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.789.79
• Online since: April 2014
• Authors: Xing Yan Gao, Ning Liu*, Yun Xue Jin, Zhi Xuan Zhu
• Keywords: High-Entropy Alloy, Microhardness, Microstructure, Nano-Precipitation, Phase Structure

References

[1] Lindsay Greer A, Confusion by design, Nature, 366(1993) 303-304.

[2] Baker H, Metals Handbook, 9th ed., ASM International, Metals Park, Ohio(1992).

[3] J. W. Yeh, S. K. Chen, S. J. Lin, J. Y. Gan, T. S. Gan, T. S. Chin,T. T. Shun, C. H. Tsau. S. Y. Chang, Nanostructured High-Entropy Alloys with Multiple Principal Elements: Novel Alloy Design Concepts and Outcomes, Advanced Engineering Materials, 6(2004) 299-303.

DOI: 10.1002/adem.200300567

[4] Cantor B, Chang I. T. H, Knight P, Vincent A. J. B. Microstructure development in equiatomic multicomponent alloys, Mater Sci Eng A, 213(2004) 375-377.

DOI: 10.1016/j.msea.2003.10.257

[5] C.Y. Hsu, J. W. Yeh, S. K. Chen, T. T. Shun, Wear resistance and high temperature compression strength of FCC CuCoNiCrAl0.5Fe alloy with boron addition, Metall Mater Trans A Phs Metal Mater. Sci. 35(2004) 1465-1469.

DOI: 10.1007/s11661-004-0254-x

[6] H. Y. Chen, C. W. Tsai, C. C. Tung, J. W. Yeh, T. T. Shun, C. C. Yang, S. K. Chen, Effect of Substitution of Co by Mn in Al-Cr-Cu-Fe-Co-Ni High-Entropy Alloys, Annales De Chimie-Science Des Materiau, 31(2006) 685-698.

DOI: 10.3166/acsm.31.685-698

[7] J. M. Wu, S. J. Lin, J. Wei. Yeh, S. K. Chen, Y. S. Huang, H. C. Chen, Adhesive wear behavior of AlxCoCrCuFeNi high-entropy alloys as a function of aluminum content, Wear, 261(2006) 513-519.

DOI: 10.1016/j.wear.2005.12.008

[8] Cantor B, Chang I. T. H, Knight P, The studies on microstructure and properties of CoCrFeNiMox high-entropy alloys, Mater Sci Eng A, 213(2004) 357-377.

[9] L. H. Wen, H.C. J. S. Kou, Li, H. Chang, X. Y. Xue, L. Zhou, Effect of aging temperature on microstructure and properties of AlCoCrCuFeNi high-entropy alloy, Intermetallics, 17(2009) 266-269.

DOI: 10.1016/j.intermet.2008.08.012

[10] J. W. Yeh, S. K. Chen, High Entropy, Scientific Development, 377(2004) 16-21.

[11] M. X. Ren, B. S. Li, Phase Analysis of CrFeCoNiCu High Entropy Alloy, Materials Engineering, (2012) 9-12.

[12] S. Guo, C. Ng, Z. J. Wang, C. T. Liu, Solid solutioning in equiatomic alloys: Limit set by topological instability, Journal of Alloys and Compounds, 583(2014)410-413.

DOI: 10.1016/j.jallcom.2013.08.213

[13] A. Takeuchi, A. Inoue, Calculations of amorphous-forming composition range for ternary alloy systems: analyses of stabilization of amorphous phase and amorphous-forming ability, Mater. Trans., JIM 42, (2001) 1435-1444.

DOI: 10.2320/matertrans.42.1435

[14] A. Takeuchi, A. Inoue, Calculations of mixing enthalpy and mismatch entropy for ternary amorphous alloys, Mater. Trans, JIM 41, (2000) 1372-1378.

DOI: 10.2320/matertrans1989.41.1372
