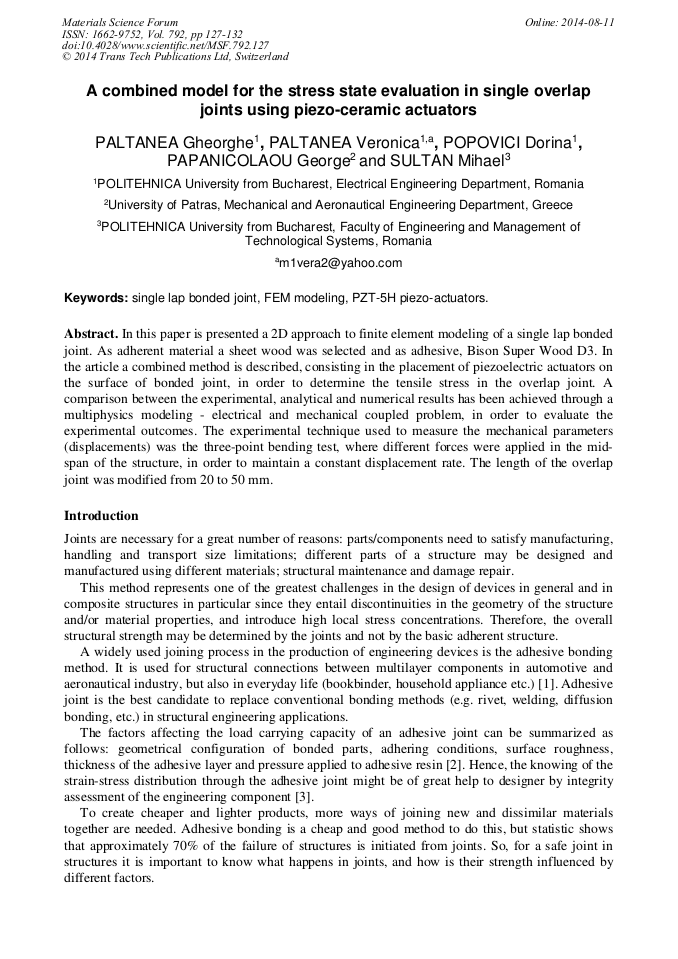

A Combined Model for the Stress State Evaluation in Single Overlap Joints Using Piezo-Ceramic Actuators

Abstract:

In this paper is presented a 2D approach to finite element modeling of a single lap bonded joint. As adherent material a sheet wood was selected and as adhesive, Bison Super Wood D3. In the article a combined method is described, consisting in the placement of piezoelectric actuators on the surface of bonded joint, in order to determine the tensile stress in the overlap joint. A comparison between the experimental, analytical and numerical results has been achieved through a multiphysics modeling - electrical and mechanical coupled problem, in order to evaluate the experimental outcomes. The experimental technique used to measure the mechanical parameters (displacements) was the three-point bending test, where different forces were applied in the mid-span of the structure, in order to maintain a constant displacement rate. The length of the overlap joint was modified from 20 to 50 mm.

• Periodical: Materials Science Forum (Volume 792)
• Pages: 127-132
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.792.127
• Online since: August 2014
• Authors: Gheorghe Paltanea, Veronica Manescu Paltanea, Dorina Popovici, George Papanicolaou, Mihael Sultan
• Keywords: FEM Modeling, PZT-5H Piezo-Actuators, Single Lap Bonded Joint

References

[1] P. Raos, M. Lucic and F. Matejicek: Proceedings of PPS-18, Guimaraes, Portugal, (2002).

[2] K. Ikegami: Proceeding of the 5th International Congress of Croatian Society of Mechanics, Trogir/Split, Croatia, (2006).

[3] F. Matejicek, P. Raos and M. Lucic: Proceeding of the 4th International Congress of Croatian Society of Mechanics, Bizovac, (2003).

[4] G.C. Papanicolaou, D. J. Bakos and Th.V. Kosmidou: Proceedings of DFC-8 and ETDCM-7 Conference, Sheffield, U.K., (2005).

[5] J. van Randeraat, R. Setterington: Piezoelectric Ceramics, (Mullard Ltd, UK, 2nd ed., 1974).

[6] K. Uchino: Ferroelectric Devices, (Marcel Dekker Inc., New-York, 2000).

[7] COMSOL 3. 2., Structural Mechanics Manual, Comsol AB, Sweden, (2005).
