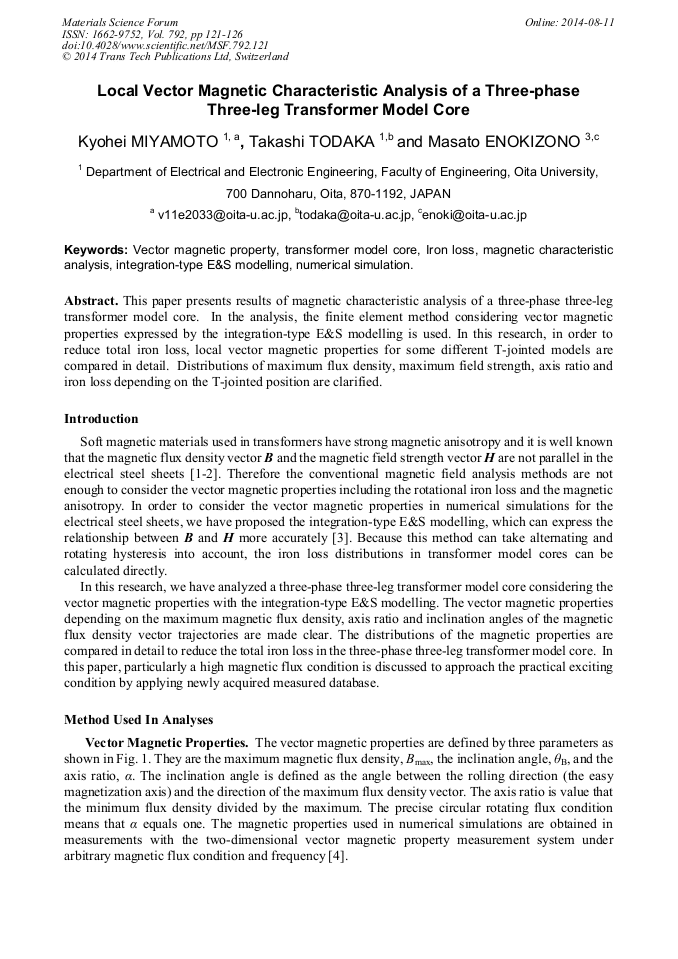

Local Vector Magnetic Characteristic Analysis of a Three-Phase Three-Leg Transformer Model Core

Abstract:

This paper presents results of magnetic characteristic analysis of a three-phase three-leg transformer model core. In the analysis, the finite element method considering vector magnetic properties expressed by the integration-type E&S modelling is used. In this research, in order to reduce total iron loss, local vector magnetic properties for some different T-jointed models are compared in detail. Distributions of maximum flux density, maximum field strength, axis ratio and iron loss depending on the T-jointed position are clarified.

• Periodical: Materials Science Forum (Volume 792)
• Pages: 121-126
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.792.121
• Online since: August 2014
• Authors: Kyohei Miyamoto*, Takashi Todaka, Masato Enokizono
• Keywords: Integration-Type E&S Modelling, Iron Loss, Magnetic Characteristic Analysis, Numerical Simulation, Transformer Model Core, Vector Magnetic Property

References

[1] S. Okabe, M. Ishida, M. Kurosawa: J. of MS of Japan, Vol. 22, No. 4-2, pp.713-716, (1998).

[2] A. J. Moses: IEEE Trans. on Magn., Vol. 8, No. 4, pp.785-790, (1972).

[3] S. Urata, M. Enokizono, T. Todaka, H. Shimoji: IEEE Trans. on Magn., Vol. 42, No. 4, pp.687-690, (2006).

DOI: 10.1109/tmag.2006.871436

[4] H. Shimoji, M. Enokizono, T. Todaka: IEEE Trans. on Magn., Vol. 37, No. 5, pp.3526-3529, (2001).

[5] T. Todaka, K. Nakanoue, M. Enokizono: The Int. J. for Compotation and Mathematics, COMPEL, Vol. 28, No. 2, pp.98-108, (2009).

[6] K. Miyamoto, T. Todaka, M. Enokizono: J. of JSAEM, Vol. 20, No. 2, pp.118-123, (2012).

[7] A. J. Moses: IEEE Trans. on Magn., Vol. 8, No. 4, pp.785-790, (1972).
